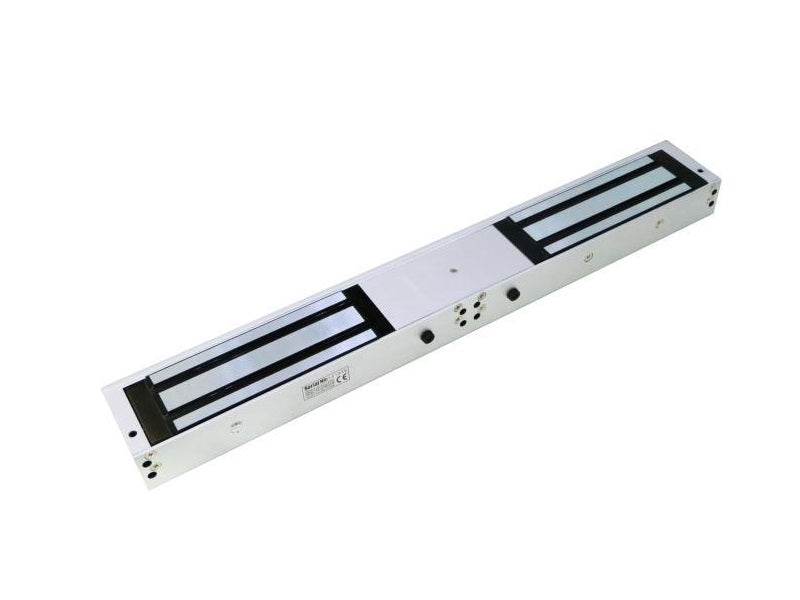

Hikvision 500kg double-door magnetic lock, angled view showing both armature plates

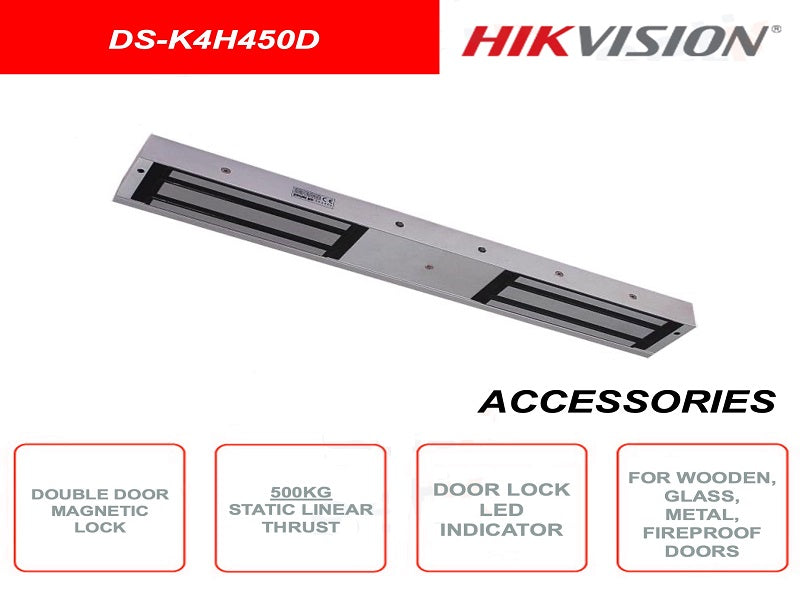

Diagram of the double-door magnetic lock highlighting 500kg thrust and LED indicator

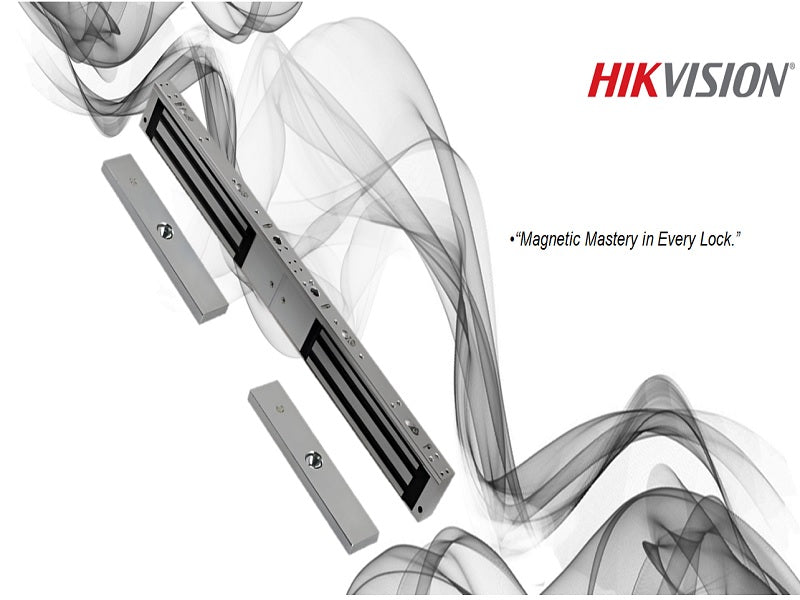

Double-door magnetic lock and armature plates against a dark smoke-effect backdrop

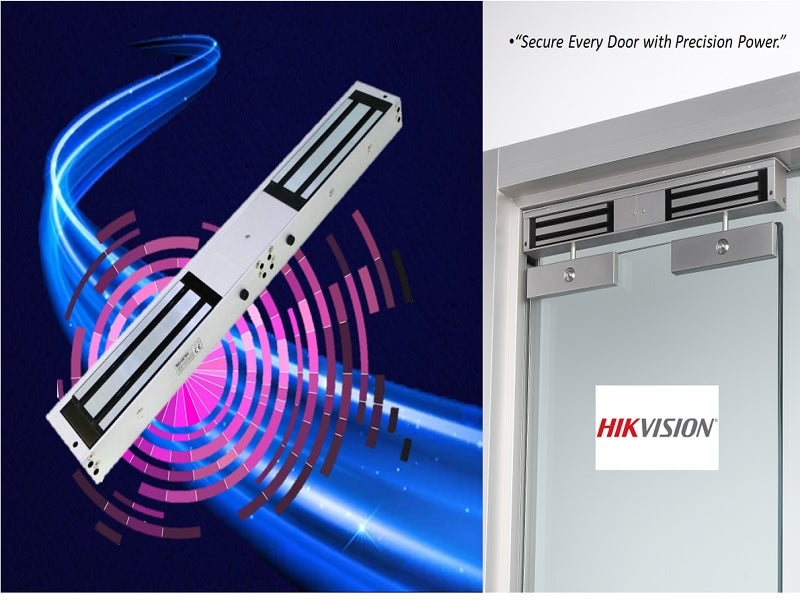

Magnetic lock diagram alongside a photo of it installed above a glass door

Hikvision DS-K4H450D Pro Series Magnetic Lock - 500kg Double Door, 12/24 VDC

DS-K4H450D

HIKVISION
R 3,106R 3,999
Estimated delivery 1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Flexible payments from only R 517.66 over 2–6 instalments
Price: R 3,106

Description

Magnetic lock supports static linear thrust of 500 kg (1102.5 lbs) `d7 2. Power supply can be 12 VDC or 24 VDC + 10% (default voltage is 12 VDC).

Key features

  • Pro Series Magnetic Lock
  • Suitable for wooden door, glass door and metal door
  • LED indicator displays door lock status
  • Signal output of door lock status
  • Indicator
  • Lock Body: 530 mm `d7 71.8 mm `d7 38.8 mm (20.86`` `d7 2.83`` `d7 1.53``)
  • Armature Plate: 185 mm `d7 60 mm `d7 13 mm (7.28`` `d7 2.36`` `d7 0.51``)
  • Dry Contact Signal Output; Support Maximum Power Rate of 3 A, NO Output While Locking and NC Output While Unlocking
  • Thrust
  • Door type
  • Wooden Door, glass door, metal Door
  • Magnetic Lock/General
  • Maximum holding force
  • Suitable door

Specifications

  • Ds-k4h450d
  • Green: Locked
  • Red: Unlocked
  • 12/24 VDC + 10%
  • 12 VDC/420 mA `d7 2
  • 24 VDC/210 mA `d7 2
  • 9.0 kg (19.84 lb)
  • 500 kg (1102.5 lb) `d7 2
  • 500kg (1102.5 lbs) `d7 2

Frequently Bought Together Frequently bought

Product Information

Categories Hikvision / Security & Surveillance / Specials
Brand Hikvision
Model DS-K4H450D
Type Pro Series Magnetic Lock
Holding Force 500 kg (1102.5 lb) x 2
Power Supply 12/24 VDC +10% (default 12 VDC)
Current 12 VDC/420 mA x 2; 24 VDC/210 mA x 2
Door Type Wooden, glass, metal
Signal Output Dry contact, max 3 A; NO/NC
Indicator Green locked, red unlocked
Dimensions Lock body 530 x 71.8 x 38.8 mm; armature 185 x 60 x 13 mm
Weight 9.0 kg (19.84 lb)
Barcode 6954273653989
