HIKVISION Network Cabinet Speaker

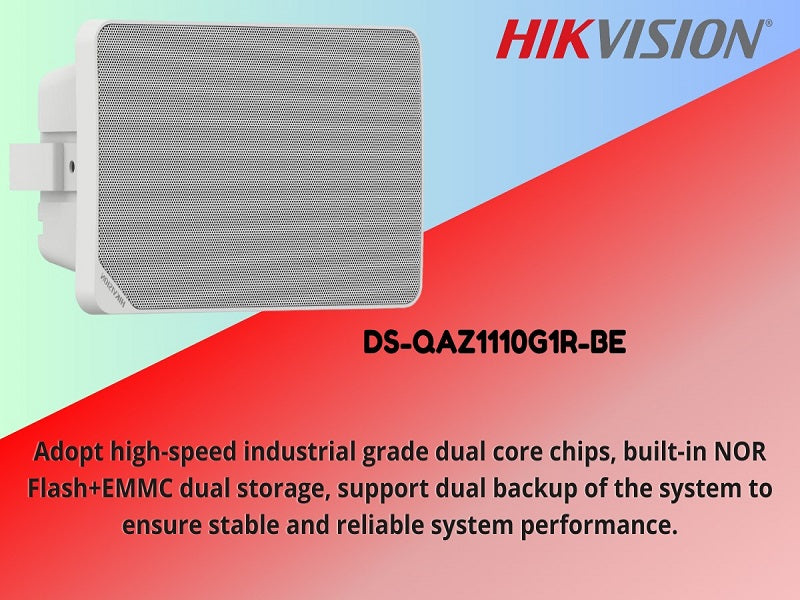

Adopt high-speed industrial grade dual core chips, built-in NOR Flash+EMMC dual storage,. support dual backup of the system to ensure stable and reliable system performance.

Key features

• Network Cabinet Speaker POE 10W - DS-QAZ1110G1R-BE - White
• Support secure startup, user login locking mechanism, and password complexity prompts, support security audit log traceability, and improve system network security.
• Support batch unified management of remote platforms through IP networks (local area networks/public networks) and flexible configuration of local WEB single machines, while also support local audio collection and playback, adapting to various scene applications.

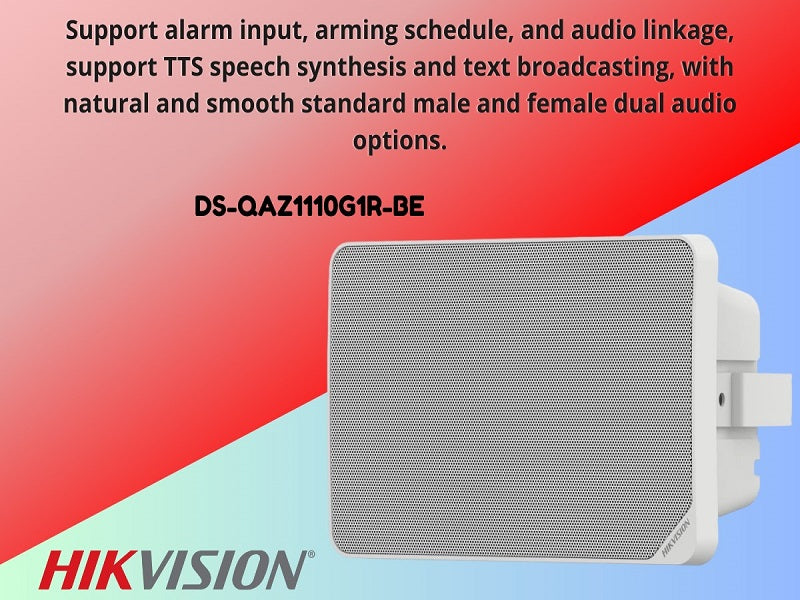

• Support alarm input, arming schedule, and audio linkage, support TTS speech synthesis and text broadcasting, with natural and smooth standard male and female dual audio options.
• Support horizontal and vertical installation
• Type - electret
• Audio Bit Rate - G.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps)
• NTP Timing - Support
• Broadcast - Regular broadcast, live broadcast, emergency broadcast
• Two-Way Audio - Support
• Speech Synthesis - English, Spanish, Japanese, Thai
• Network Protocol - IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP
• Client - Hik-Partner Pro, iVMS-4200, Hik-Connect, HikCentral Professional
• Communication
• Communication Method
• Support wired network and bluetooth communication
• Ethernet Interface - RJ45 10 M/100 M Adaptive Ethernet port `d7 1
• Local Storage - Built-in 64 GB EMMC (Audio file storage is 55 GB.)
• API - isapi, isup, sip,onvif
• Audio In - 3.5 mm audio interface `d7 1
• Audio Out - Fixed resistance output `d7 1`a3`acphoenix terminal'a3`ac8 `d9
• LED Indicator
• Reset - Support
• Volume Knob - Support
• Operating Temperature - -30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F)
• Dimension - 268.4 mm `d7 180.4 mm `d7 125.12 mm (10.57" `d7 7.1" `d7 4.93")
• Package Dimension - 340 mm `d7 306 mm `d7 180 mm (13.39" `d7 12.05" `d7 7.09")

Specifications

• DS-QAZ1110G1R-BE White
• Amount - 2
• Frequency Response - 100 Hz to 18 kHz
• Sensitivity - -42 dBV/Pa
• Sampling Rate - 48 kHz
• Quantization Bits - 16 bit
• Audio Algorithm - AEC'a1`a2AGC'a1`a2ANS'a1`a2DRC
• Audio File Format - WAV'a1`a2MP3`a1`a2MP2`a1`a2AAC
• Interface Protocol (API) - ISAPI, ISUP, SIP, RTP,ONVIF
• Solid green: normal working
• Flashing green: intercom in progress
• Solid red: start or network disconnection
• Flashing red: upgrading
• Power - PoE(IEEE 802.3at class 4)
• Material - Main body&Front cover'a3°plastic, bracket: metal
• Operating Humidity - `a3`bc90% (No condensation)
• Language - 5 languages: English, French, Spanish, German, Italian
• Weight - Approx. 2 kg (4.4 lb.)
• 1 x Device
• 1 x U-shaped bracket
• 1 x Screw pack
• 1 x Installation sticker
• 1 x Regulatory Compliance and Safety Information
