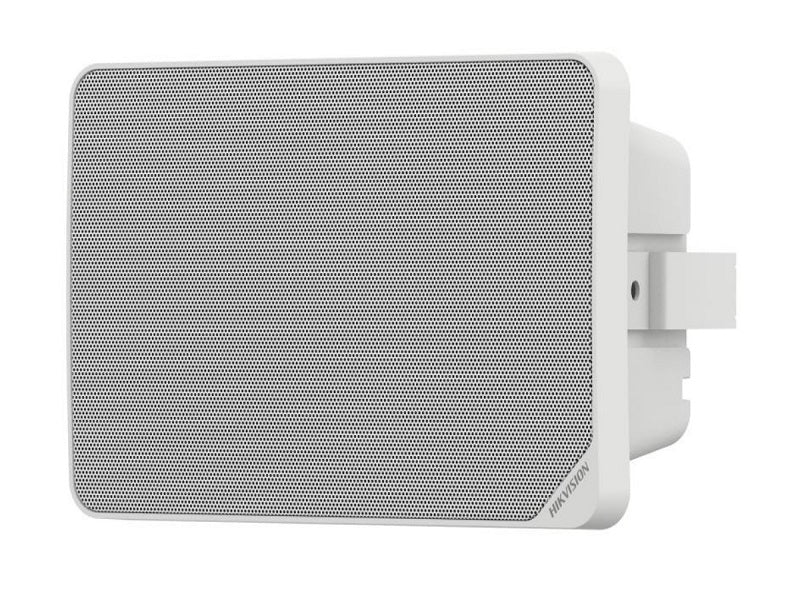

HIKVISION Network Cabinet Speaker

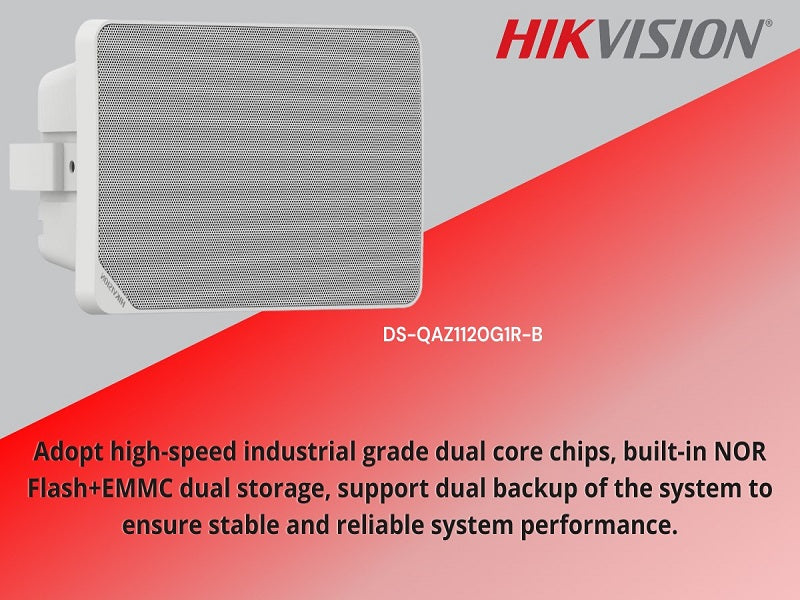

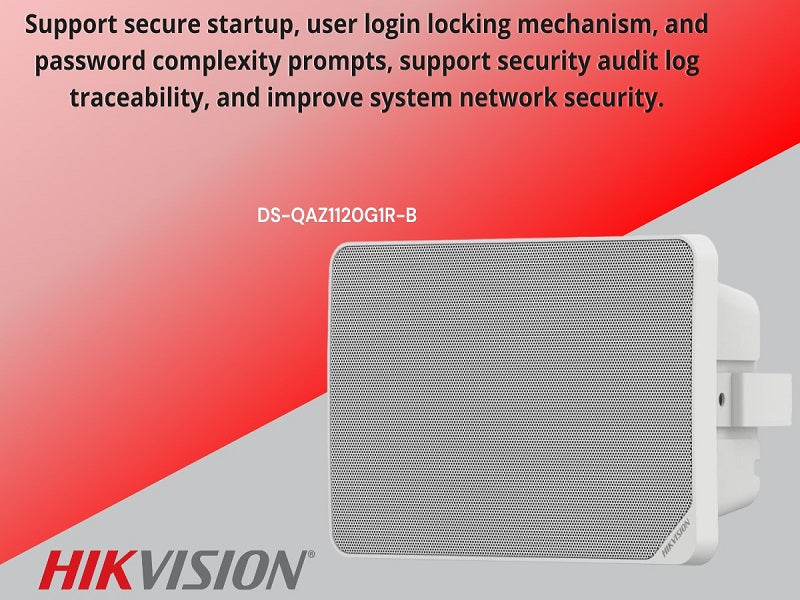

Adopt high-speed industrial grade dual core chips, built-in NOR Flash+EMMC dual storage, support dual backup of the system to ensure stable and reliable system performance. Support secure startup, user login locking mechanism, and password complexity prompts, support security audit log traceability, and improve system network security.

Key features

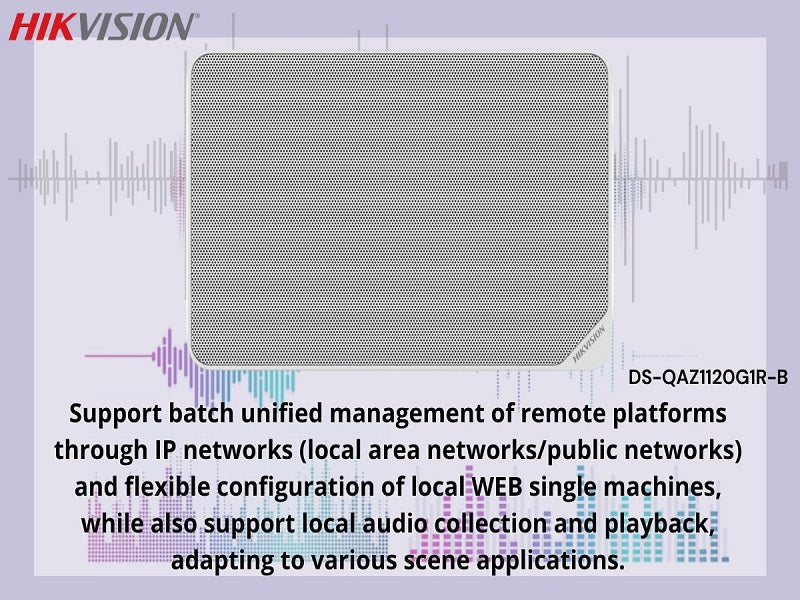

• Support batch unified management of remote platforms through IP networks (local area networks/public networks) and flexible configuration of local WEB single machines, while also support local audio collection and playback, adapting to various scene applications.
• Support fixed resistance output and can be connected to an external sub speaker to increase the coverage area of the sound field, saving installation and wiring costs.
• Support alarm input, arming schedule, and audio linkage, support TTS speech synthesis and text broadcasting, with natural and smooth standard male and female dual audio options.
• Support horizontal and vertical installation
• Typeelectret;
• Max. Acoustic Pressure - 103 dBSPL
• Direction - All directions
• Audio Bit Rate - G.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps)
• NTP Timing - Support
• Broadcast - Regular broadcast, live broadcast, emergency broadcast
• Two-Way Audio - Support
• Speech Synthesis - English, Spanish, Japanese, Thai
• Network Protocol - IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP
• Client - Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone
• Communication
• Communication Method
• Support wired network and bluetooth communication
• Ethernet Interface - RJ45 10 M/100 M Adaptive Ethernet port `d7 1
• Local Storage - Built-in 64 GB EMMC (Audio file storage is 55 GB.)
• API - isapi, isup, SIP
• Audio In - 3.5 mm audio interface `d7 1
• Audio Out - Fixed resistance output `d7 1`a3`acphoenix terminal'a3`ac8 `d9
• LED Indicator;
• Operating Temperature- -30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F)
• Dimension - 268.4 mm `d7 180.4 mm `d7 125.12 mm (10.57" `d7 7.1" `d7 4.93")
• Package Dimension - 340 mm `d7 306 mm `d7 180 mm (13.39" `d7 12.05" `d7 7.09")
• With Package Weight -- Approx. 2.2 kg (4.8 lb.)

Specifications

• DS-QAZ1120G1R-B White
• Network Cabinet Speaker 20W -DS-QAZ1120G1R-B
• Amount - 2
• Frequency Response - 100 Hz to 18 kHz
• Sensitivity - -42 dBV/Pa
• Sampling Rate - 48 kHz
• Quantization Bits - 16 bit
• Rated Power - 20 W
• Impedance - 8 `d9
• Sensitivity - (1 m, 1 W)90 dB
• Frequency Response - 130 Hz to 17.5 kHz
• SNR - 83 dB
• Speaker Unit - -5.25′′ `d7 1
• Audio Algorithm - AEC'a1`a2AGC'a1`a2ANS'a1`a2DRC
• Audio File Format - WAV'a1`a2MP3`a1`a2MP2`a1`a2AAC
• Solid green: normal working
• Flashing green: intercom in progress
• Solid red: start or network disconnection
• Flashing red: upgrading
• Power - 24 VDC/2.5 A
• Material - Main body&Front cover'a3°plastic, bracket: metal
• Operating Humidity- `a3`bc90% (No condensation)
• Language - 5 languages: English, French, Spanish, German, Italian
• Weight - Approx. 2 kg (4.4 lb.)
• 1 x Device
• 1 x U-shaped bracket
• 1 x Adapter
• 1 x Screw pack
• 1 x Installation sticker
• 1 x Regulatory Compliance and Safety Information
