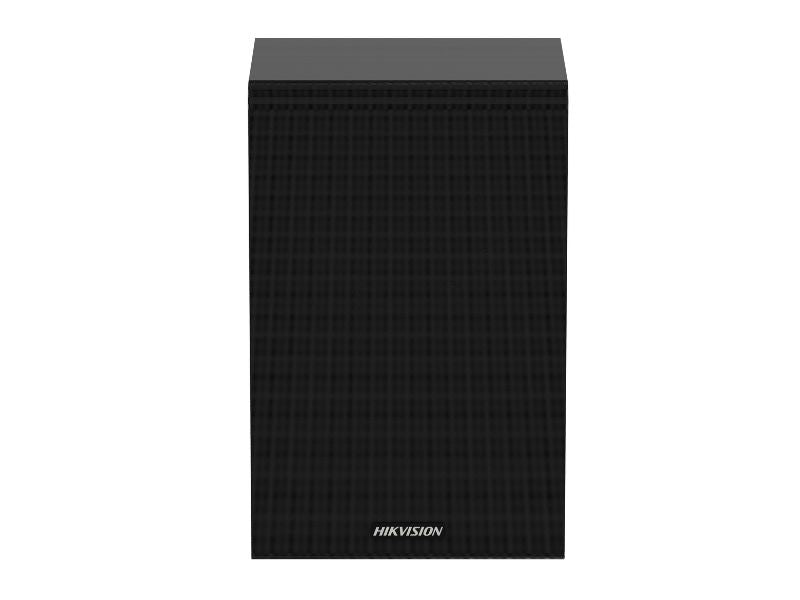

HIKVISION Network Cabinet Speaker
HIKVISION Network Cabinet Speaker
HIKVISION Network Cabinet Speaker

HIKVISION Network Cabinet Speaker

HIKVISION
R 3,699R 4,599
Estimated delivery 2–4 working days
In stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 3,699

Description

Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French. IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH.

Key features

  • Support schedule/live/emergency broadcast; alarm linkage; two-way audio; TTS
  • Black
  • Microphone
  • Type
  • Mems
  • Amount
  • Sampling Rate
  • Quantization Bits
  • Max. Acoustic Pressure
  • Direction
  • All directions
  • SNR
  • Coverage Angle
  • Function
  • NTP Timing
  • Support
  • Broadcast
  • Regular broadcast, live broadcast, emergency broadcast
  • Speech Synthesis
  • Isapi, isup, SIP, rtp,onvif
  • Client
  • Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone
  • Communication
  • Communication Method
  • Support wired network and bluetoothcommunication
  • RJ45 10 M/100 M Adaptive Ethernet port `d7 1
  • Built-in 4 GB EMMC (Audio file storage is 1 GB.)
  • API
  • Isapi, isup, sip,onvif
  • LED Indicator
  • Reset
  • Volume Knob
  • Wooden
  • 10 `b0C to 50 `b0C(14 `b0F to 122 `b0F)
  • 180.6 mm `d7 156 mm `d7 280 mm(7.11" `d7 6.14" `d7 11.02")
  • 355 mm `d7 265 mm `d7 240 mm(13.98" `d7 10.43" `d7 9.45")
  • Approx. 2.5 kg (5.51 lb.)
  • Approx. 3.64 kg (8.02 lb.)
  • Packing List
  • Language
  • 41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese
  • Bluetooth
  • Approval
  • RF
  • CE-RED: EN 301489-1 V2.2.3 (BT or 2.4G), EN 301489-17 V3.2.4 (BT or 2.4G), EN 300 328 V2.2.2 (BT or 2.4G), EN62311 2020(BT or 2.4G)
  • RCM: EN 300 328 V2.2.2 (BT or 2.4G), AS/NZS 2772.2:2016+A1:2018, ARPANSA RPS S-1 Radiation Protection Series S-1 (Rev.1), ARPANSA RPS S01 Advisory Note
  • ANATEL: Resolution No. 680/2017,Act No. 14448/2017,Act No. 950/2018,Act No. 1120/2018
  • EMC
  • Ce-emc: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: as/nzs cispr 32: 2015 IC: ices-003: issue 7
  • Safety

Specifications

  • Ds-qaz1120g1-b
  • Network Cabinet Speaker 20W
  • Full frequency 5.25′′ `d7 1
  • Rated Power: 20 W
  • Sensitivity(1 m, 1 W): 90 dB
  • Max. SPL: 101 dB
  • Frequency Response: 100 Hz to 20 kHz
  • 2
  • Frequency Response
  • 100 Hz to 20 kHz
  • Sensitivity
  • 42 dBV/Pa
  • 48 kHz
  • 16 bit
  • 20 W
  • Impedance
  • 8 `d9
  • 101 dBSPL
  • Sensitivity(1 m, 1 W)
  • 90 dB
  • 83 dB
  • Horizontal: 105`b0
  • Vertical: 103`b0
  • AEC'a1`a2AGC'a1`a2ANS'a1`a2DRC
  • G.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps)
  • Sampling bit width: 16 bits
  • MP3, WAV
  • 3.5 mm audio interface `d7 1
  • Voltage Input `d7 1`a3`acCOM 100 V
  • Green light on: normal
  • Green light flash: intercom in progress
  • Red light on: start or network disconnection
  • Red light flash: upgrading
  • 24 VDC/1.5 A
  • Material
  • `a3`bc90% (No condensation)
  • Color
  • Device `d7 1
  • Adapter `d7 1
  • Screw pack `d7 1
  • Installation sticker `d7 1
  • Regulatory Compliance and Safety Information `d7 1
  • Bluetooth 5.0, 10 m
  • IC ID: RSS-247(BT or 2.4G)
  • CB: IEC 62368-1:2014
  • Ce-lvd: EN 62368-1:2014/A11:2017
  • Ce-rohs: 2011/65/EU
  • Weee: 2012/19/EU
  • Reach: Regulation (EC) No 1907/2006

Frequently Bought Together Frequently bought

Product Information

Categories Audio & Video / Hikvision / Specials
Brand Hikvision
Model DS-QAZ1120G1-B
Speaker Unit Full frequency 5.25" x 1
Rated Power 20 W
Impedance 8 ohm
Sensitivity 90 dB (1 m, 1 W)
Max. SPL 101 dB
Frequency Response 100 Hz to 20 kHz
SNR 83 dB
Ethernet RJ45 10/100M
Storage 4 GB EMMC built-in
Connectivity Wired + Bluetooth 5.0 (10 m)
Power 24 VDC / 1.5 A
Material Wooden
Dimensions 180.6 x 156 x 280 mm
Weight Approx. 2.5 kg
Barcode 6942160433004
