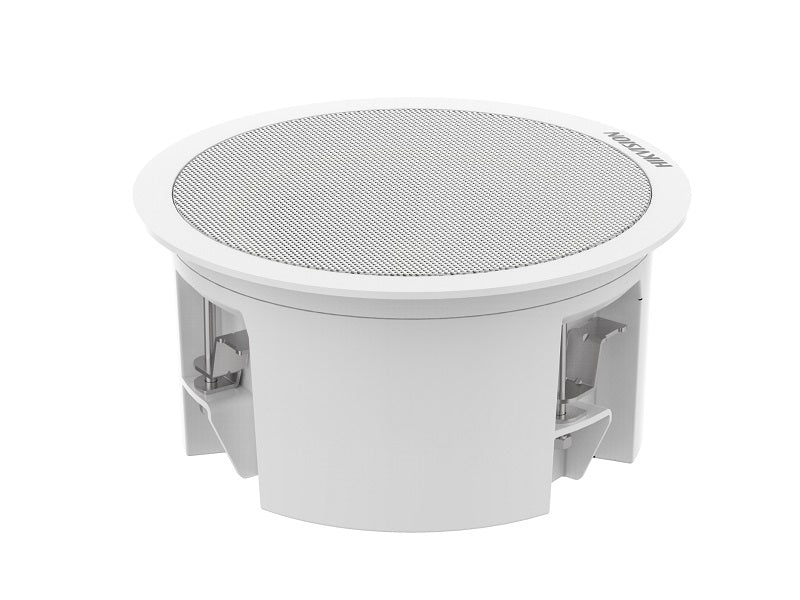

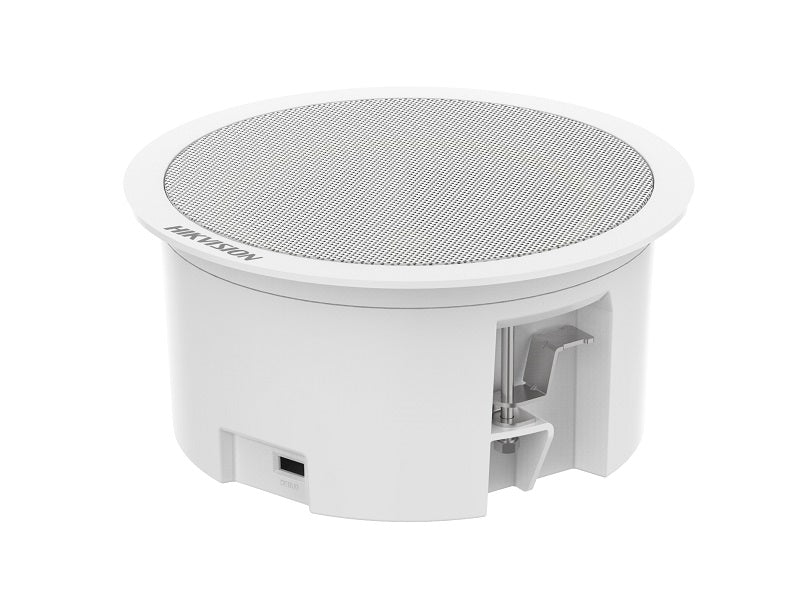

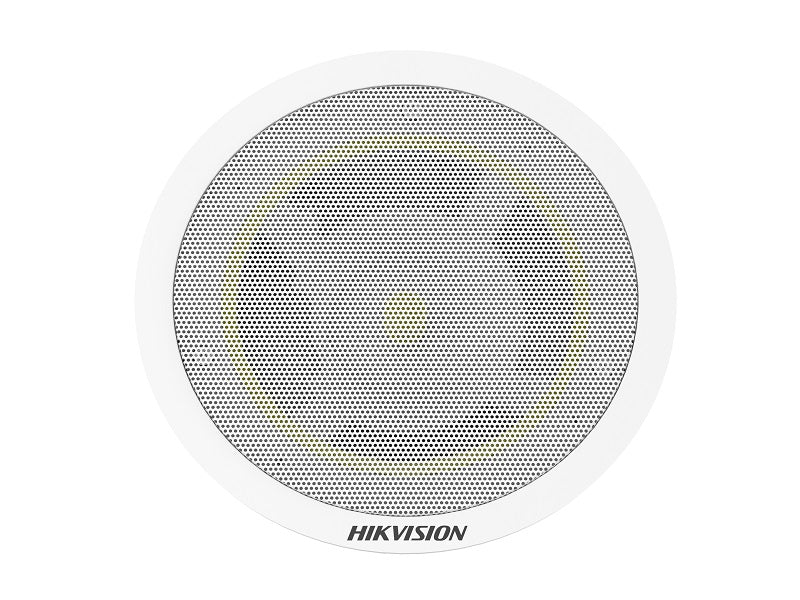

HIKVISION Network Ceiling Speaker 3W

Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French. IPv4, HTTP, HTTPS , SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH.

Key features

• Support PoE
• Support schedule/live/emergency broadcast, alarm linkage, TTS
• White
• Max. Acoustic Pressure
• Direction
• All directions
• SNR
• Coverage Angle
• Function
• NTP Timing
• Support
• Broadcast
• Regular broadcast, live broadcast, emergency broadcast
• Speech Synthesis
• Isapi, isup, SIP, rtp,onvif
• Client
• Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone
• Functions
• Supports digital noise reduction, manually adjustable for 5 gears to ensure communication/audio quality.
• Communication
• Communication Method
• Support wired network and bluetoothcommunication
• RJ45 10 M/100 M Adaptive Ethernet port `d7 1
• Built-in 4 GB EMMC (Audio file storage is 1 GB.)
• API
• Isapi, isup, sip,onvif
• Alarm
• The primary speaker(3 W, 8 `d9) can be connected to a maximum of 3 secondary speakers(3 W, 8 `d9).
• Language
• 41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese
• `d8179 mm `d7 73.5 mm (`d87.05" `d7 2.89") (Hole size: 160 mm'a3`a9
• 255mm `d7 243mm `d7 175mm (10.04" `d7 9.57" `d7 6.89")
• Approx. 0.3 kg (0.66 lb.)
• Approx. 0.5 kg (1.1 lb.)
• Packing List
• Bluetooth
• 10 `b0C to 50 `b0C(14 `b0F to 122 `b0F)
• Approval
• RF
• CE-RED:EN 301489-1 V2.2.3 (BT or 2.4G),EN 301489-17 V3.2.4 (BT or 2.4G),EN 300 328 V2.2.2 (BT or 2.4G) ,EN62311 2020(BT or 2.4G)
• RCM: EN 300 328 V2.2.2 (BT or 2.4G) ,AS/NZS 2772.2:2016+A1:2018, ARPANSA RPS S-1 Radiation Protection Series S-1 (Rev.1), ARPANSA RPS S01 Advisory Note
• ANATEL: Resolution No. 680/2017,Act No. 14448/2017,Act No. 950/2018,Act No. 1120/2018
• EMC
• Ce-emc: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: as/nzs cispr 32: 2015 IC: ices-003: issue 7
• Safety

Specifications

• Ds-qaz1203g1-be(o-std)
• Network Ceiling Speaker 3W
• Full frequency 5′′ `d7 1
• Rated Power: 3W
• Sensitivity(1 m, 1 W): 110 dB
• Max. SPL: 97 dB
• Frequency Response: 300 Hz to 15 kHz
• 3 W
• Impedance
• 8 `d9
• 97 dBSPL
• Sensitivity(1 m, 1 W)
• 93 dB
• Frequency Response
• 300 Hz to 15 kHz
• 82 dB
• Conical Coverage: 130`b0
• AEC'a1`a2AGC'a1`a2ANS'a1`a2DRC
• G.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps)
• Sampling bit width: 16 bits
• MP3, WAV
• Alarm input `d7 2
• 3.5 mm audio interface `d7 1
• Fixed resistance output `d7 1`a3`acphoenix terminal'a3`ac8 `d9
• PoE: 802.3at'a3`ac12 VDC/1.5 A
• Material
• Device body: plastic; Mesh cover: metal
• Color
• Device `d7 1
• Mesh cover `d7 1
• Regulatory Compliance and Safety Information `d7 1
• Bluetooth 5.0, 10 m
• `a3`bc90% (No condensation)
• IC ID: RSS-247(BT or 2.4G)
• CB: IEC 62368-1:2014
• Ce-lvd: EN 62368-1:2014/A11:2017
• Ce-rohs: 2011/65/EU
• Weee: 2012/19/EU
• Reach: Regulation (EC) No 1907/2006
