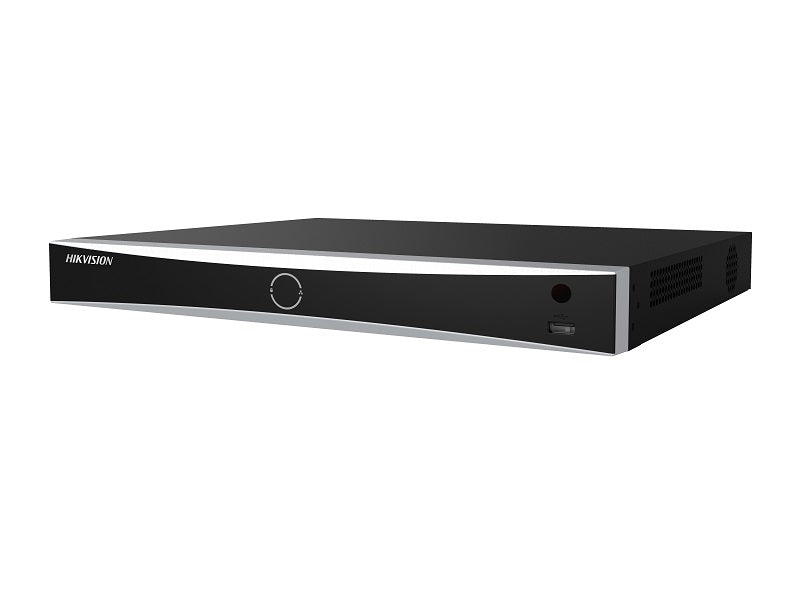

HIKVISION Nvr 32Ch 1U 4K No Poe

Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity. Adopt Hikvision Acusense technology to minimize manual effort and security costs.

Key features

• Smart Function
• 2-ch video analysis for human and vehicle recognition to reduce false alarm
• 1-ch facial recognition for video stream, or 4-ch facial recognition for face picture
• Smart search for the selected area in the video, and smart playback to improve the playback efficiency
• Professional and Reliability
• H.265+ compression effectively reduces the storage space by up to 75%
• Adopt stream over TLS encryption technology which provides more secure stream transmission service HD Video Output

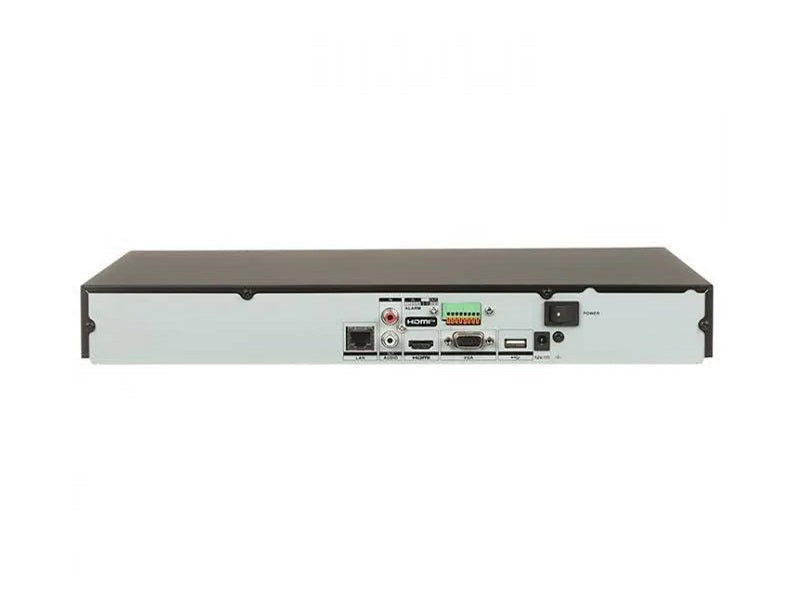

• Provide independent HDMI and VGA outputs
• HDMI video output at up to 4K resolution Storage and Playback
• Up to 2 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)
• Hik-Connect for easy network management
• Intelligent Analytics AI by Device Facial recognition, perimeter protection, motion detection 2.0 Facial recognition, perimeter protection, throwing objects from building, motion AI by Camera Facial Recognition detection2.0, ANPR, VCA Facial Detection and Analytics Face picture comparison, human face capture, face picture search Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 Face Picture Library MB, total capacity ≤ 1 GB) Facial Detection and Analytics Performance 1-ch, 8 MP Face Picture Comparison Motion Detection 2.0 4-ch All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for By Device human and vehicle recognition to reduce false alarm By Camera Perimeter Protection All channels 2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle By Device recognition to reduce false alarm By Camera Video and Audio All channels IP Video Input 32-ch Incoming Bandwidth 256 Mbps Outgoing Bandwidth 160 Mbps 1-ch, 4K (3840 `d7 2160)/30 Hz, 2K (2560 `d7 1440)/60 Hz, 1920 `d7 1080/60 Hz, 1600 `d7 HDMI Output 1200/60 Hz, 1280 `d7 1024/60 Hz, 1280 `d7 720/60 Hz, 1024 `d7 768/60 Hz VGA Output 1-ch, 1920 `d7 1080/60 Hz, 1280 `d7 1024/60 Hz, 1280 `d7 720/60 Hz Video Output Mode HDMI/VGA independent output CVBS Output N/A Audio Output 1-ch, RCA (2.0 Vp-p, 1 K'd9, using the audio input) Two-Way Audio 1-ch, RCA (Linear, 1 K'd9) Decoding Decoding Format H.265/H.265+/H.264+/H.264 Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous playback 16-ch AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) Decoding Capability AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps) Stream Type Video, Video & Audio Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC Network Remote Connection 128 API ONVIF (profile S/G); SDK; ISAPI Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, Network Protocol UPnP™, HTTP, HTTPS Network Interface Auxiliary Interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface SATA 2 SATA interfaces Capacity Up to 10 TB capacity for each HDD USB Interface Front panel: 1 `d7 USB 2.0; Rear panel: 1 `d7 USB 2.0 Alarm In/Out 4/1 General English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish GUI Language Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian Power Supply 12 VDC, 3.3 A Consumption ≤ 15 W (without HDD) Working Temperature -10 `b0C to 55 `b0C (14 `b0F to 131 `b0F) Working Humidity 10% to 90% Dimension (W `d7 D `d7 H) 385 mm `d7 315 mm `d7 52 mm (15.2"`d7 12.4" `d7 2.0") Weight ≤ 1 kg (without HDD, 2.2 lb.) Certification FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 Obtained Certification CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS

Specifications

• Ds-7632nxi-k2
• 32-ch 1U K Series AcuSense 4K NVR
• Up to 32-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 256 Mbps incoming bandwidth
• All channels support Motion Detection 2.0
• 16-ch synchronous playback Network & Ethernet Access
• 1 self-adaptive 10/100/1000 Mbps Ethernet interface
