Hikvision DS-7104NI-Q1/4P 4-Channel 6MP NVR with 4 PoE - H.265+, HDMI/VGA

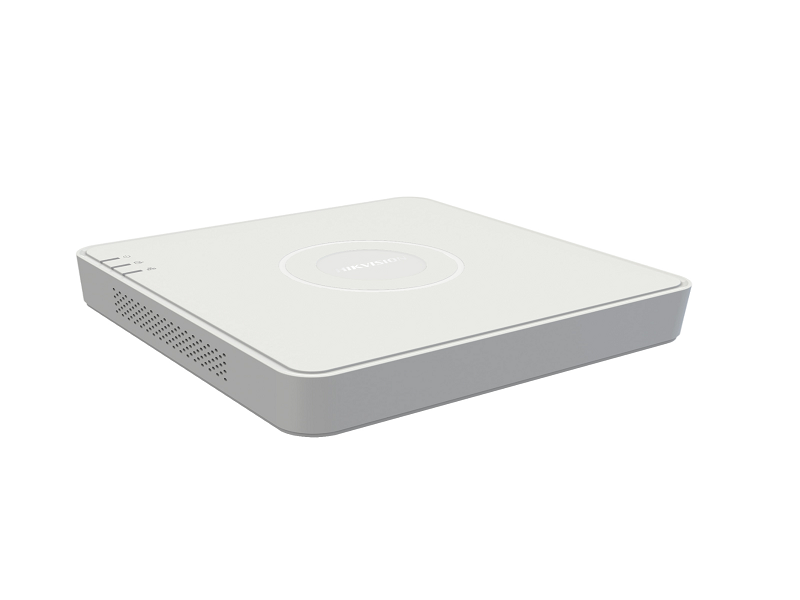

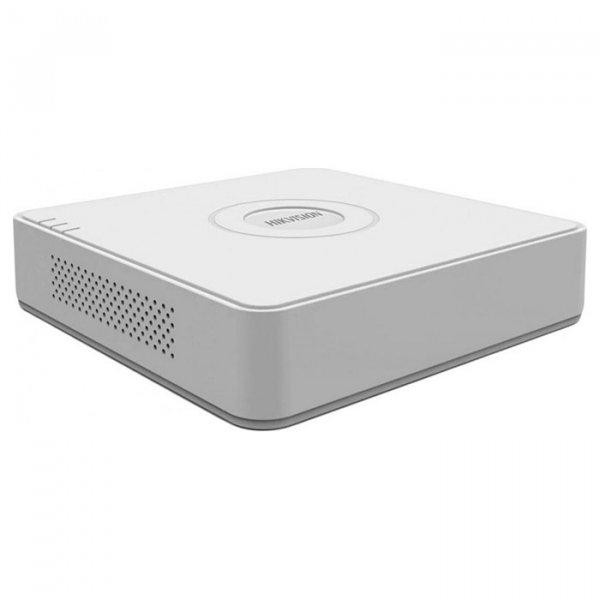

HIKVISION 4-Channel Mini 4 PoE 1U Network Video Recorder
The HIKVISION 4-Channel Mini 4 PoE 1U NVR is a compact network video recorder designed for small IP surveillance systems requiring integrated PoE connectivity, high-resolution recording and efficient video compression.
Supporting up to 4 network cameras with resolutions up to 6MP, the NVR provides 40Mbps incoming bandwidth and 60Mbps outgoing bandwidth. Four integrated PoE ports allow compatible IP cameras to receive both power and network connectivity through a single Ethernet cable, helping simplify CCTV installation.
The recorder supports H.265+, H.265, H.264+ and H.264 video compression, helping optimise storage capacity and network bandwidth. It also provides simultaneous HDMI and VGA video output, synchronous 4-channel playback and support for one internal SATA hard drive with a capacity of up to 6TB.
Its compact 200 × 200 × 48mm Mini 1U chassis makes it particularly suitable for homes, offices, retail stores and other small surveillance installations where space is limited.
Key Features
- 4-channel IP Network Video Recorder
- Up to 4 network camera inputs
- Supports IP cameras up to 6MP resolution
- 4 built-in PoE ports
- IEEE 802.3af/at PoE support
- Up to 36W total PoE power
- 40Mbps incoming bandwidth
- 60Mbps outgoing bandwidth
- H.265+ video compression
- H.265 / H.264+ / H.264 support
- Up to 4-channel 1080p decoding
- Up to 6MP recording resolution
- 4-channel synchronous playback
- HDMI and VGA simultaneous output
- 1 × SATA interface
- Supports HDD capacity up to 6TB
- Hik-Connect support
- 1 × 10/100Mbps Ethernet interface
- 2 × USB 2.0 ports
- Compact Mini 1U design
- 48V DC power supply
4-Channel IP Camera Support
The NVR supports up to 4 IP camera inputs, making it suitable for smaller surveillance installations requiring up to four network cameras.
IP Video Inputs: 4 Channels
Maximum Camera Resolution: Up to 6MP
Incoming Bandwidth: 40Mbps
Outgoing Bandwidth: 60Mbps
Built-In 4-Port PoE
Four integrated PoE interfaces allow compatible PoE network cameras to be connected directly to the NVR.
PoE Interfaces:
4 × RJ45 10/100Mbps self-adaptive Ethernet ports
PoE Standard:
IEEE 802.3af/at
Total PoE Power:
Up to 36W
PoE technology can carry both network data and electrical power over a compatible Ethernet cable, reducing the need for separate power supplies at each camera location.
Video Compression
The NVR supports efficient modern video compression formats, including:
- H.265+
- H.265
- H.264+
- H.264
H.265+ compression can help reduce storage and bandwidth requirements when used with compatible cameras and settings.
Recording Resolution
Supported recording resolutions include:
- 6MP
- 4MP
- 3MP
- 1080p
- UXGA
- 720p
- VGA
- 4CIF
- DCIF
- 2CIF
- CIF
- QCIF
This allows the recorder to work with a range of compatible network cameras and recording resolutions.
Decoding Capability
The recorder provides the following decoding capabilities:
- 4 channels at 1080p @ 30fps
- 2 channels at 4MP @ 30fps
- 1 channel at 6MP @ 30fps
Stream Type:
Video / Video & Audio
4-Channel Synchronous Playback
The NVR supports 4-channel synchronous playback, allowing recorded footage from all four connected channels to be reviewed simultaneously.
This is particularly useful when reviewing an event captured from multiple camera positions.
HDMI Output
The NVR provides one HDMI video output.
Supported HDMI resolutions include:
- 1920 × 1080p @ 60Hz
- 1600 × 1200 @ 60Hz
- 1280 × 1024 @ 60Hz
- 1280 × 720 @ 60Hz
VGA Output
One VGA output is also provided, supporting:
- 1920 × 1080p @ 60Hz
- 1600 × 1200 @ 60Hz
- 1280 × 1024 @ 60Hz
- 1280 × 720 @ 60Hz
Simultaneous HDMI & VGA Output
Video Output Mode:
HDMI / VGA simultaneous output
The NVR can output its display through HDMI and VGA simultaneously, providing additional flexibility when connecting compatible monitors and displays.
Network Connectivity
The recorder features a dedicated Ethernet network interface for connection to the local network.
Network Interface:
1 × RJ45 10/100Mbps self-adaptive Ethernet interface
Maximum Remote Connections:
16
Supported Network Protocols
The NVR supports:
- TCP/IP
- DHCP
- Hik-Connect
- DNS
- DDNS
- NTP
- SADP
- SMTP
- UPnP™
Hik-Connect Support
Support for Hik-Connect provides convenient integration with compatible Hikvision remote surveillance services and applications when the recorder is correctly configured and connected to the internet.
Storage
The NVR provides one SATA interface for internal surveillance storage.
SATA Interfaces: 1
Maximum HDD Capacity: Up to 6TB
The internal hard drive can be used to store recorded surveillance footage from connected cameras.
Hard drive inclusion depends on the specific package purchased.

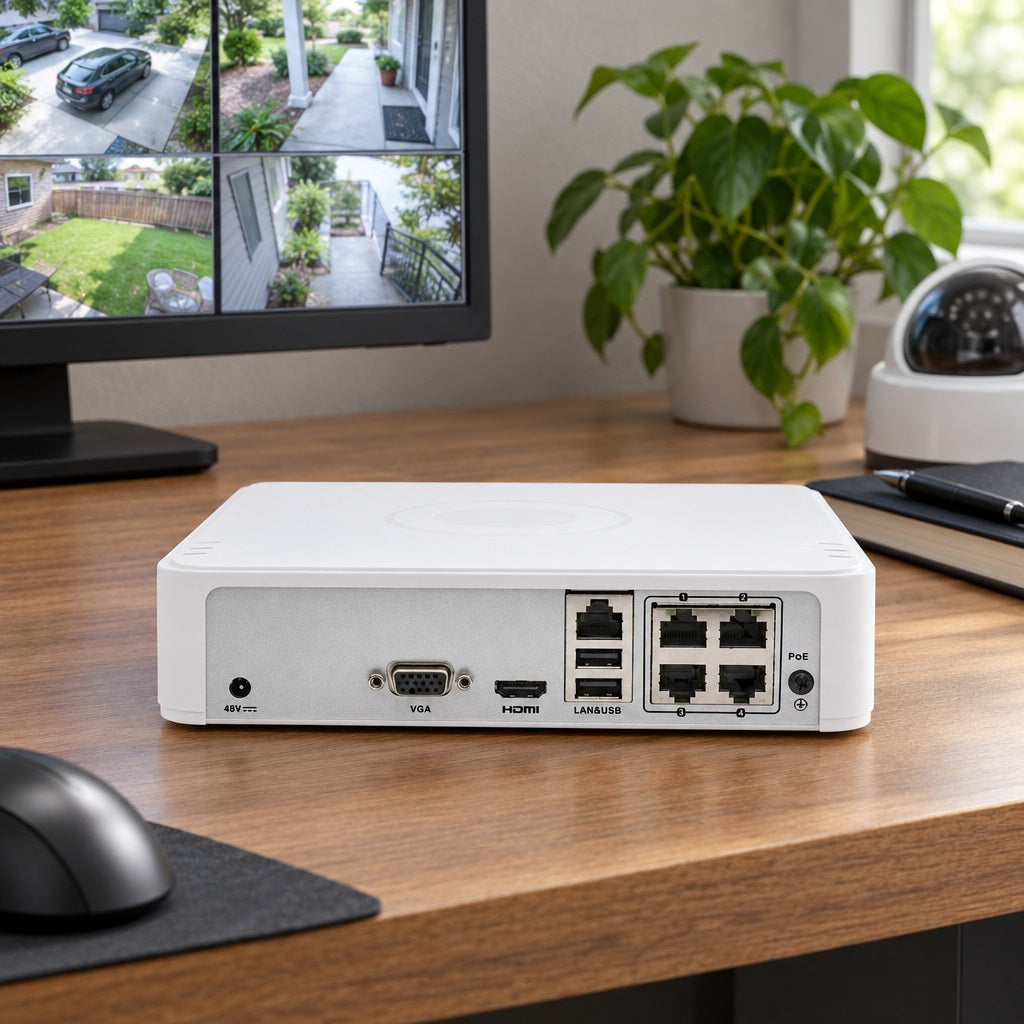

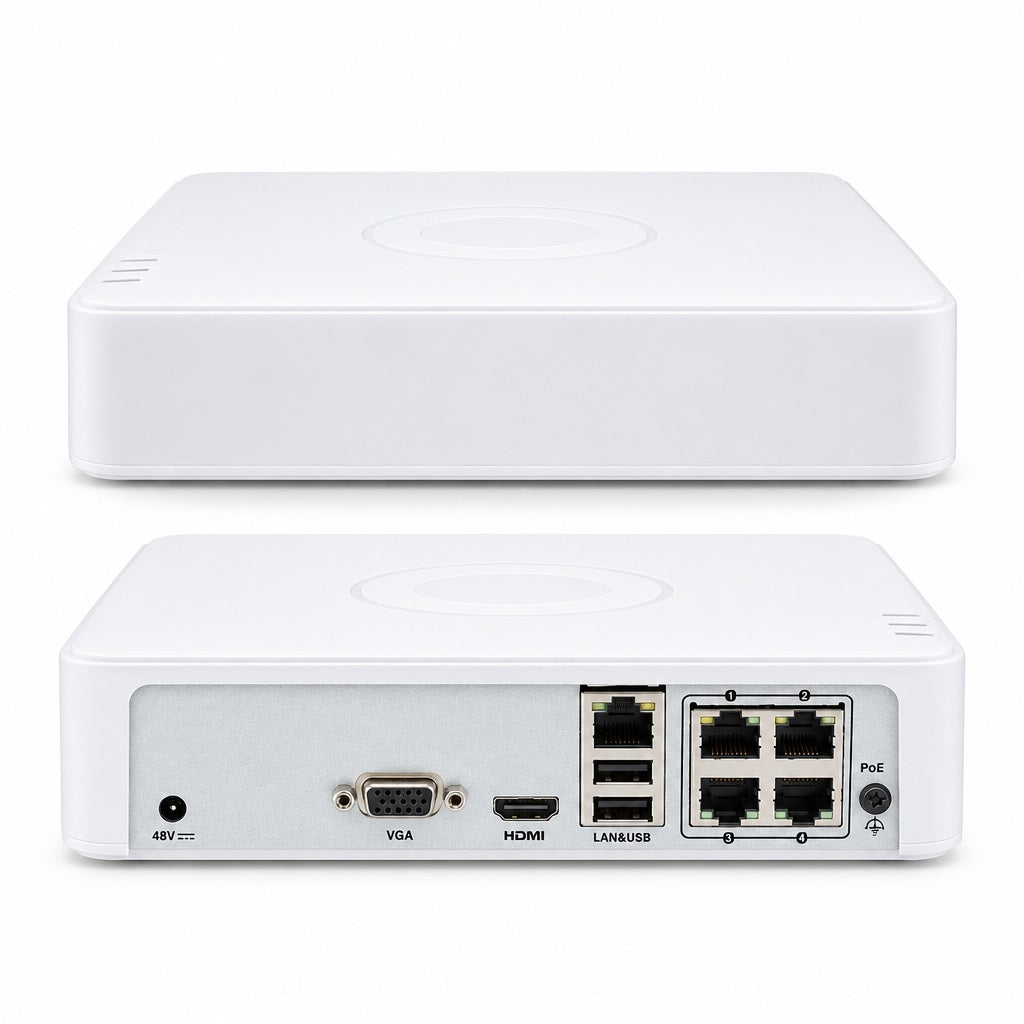

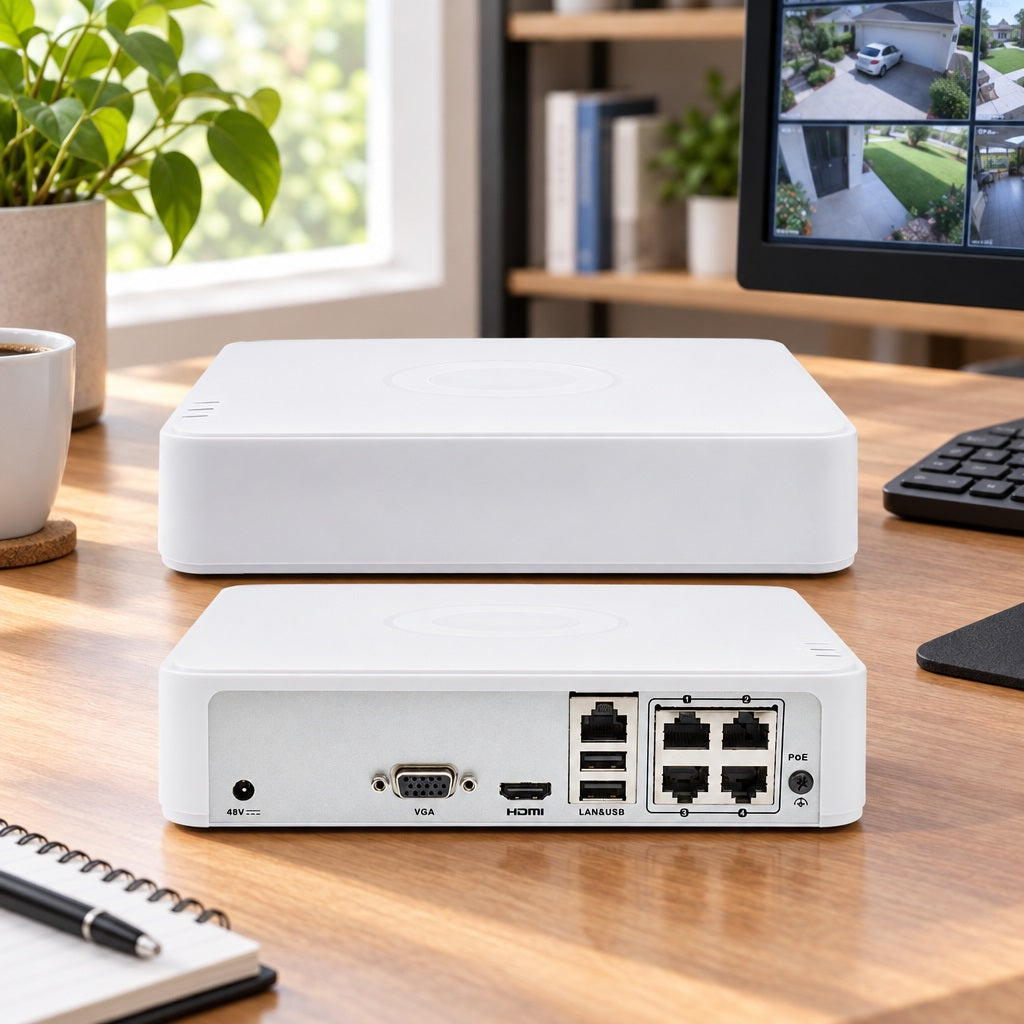

USB Interfaces
The rear panel provides:
2 × USB 2.0 ports
These can be used with compatible accessories such as a USB mouse or external storage device for supported functions.
Alarm Interface
Alarm Input: N/A
Alarm Output: N/A
This model does not feature dedicated alarm input/output terminals.
Power Supply
Power Supply:
48V DC, 1A
NVR Power Consumption:
≤10W
The specified NVR consumption excludes the additional power supplied to connected PoE cameras.
Operating Conditions
Operating Temperature:
-10°C to +55°C
Operating Humidity:
10% to 90%
Dimensions & Weight
Dimensions (W × D × H):
200 × 200 × 48mm
Weight:
≤1kg
The compact dimensions make the NVR particularly suitable for installations where equipment space is limited.
Technical Specifications
Specification Details
Brand HIKVISION
Product Type Network Video Recorder
Form Factor Mini 1U
IP Camera Inputs 4 Channels
Maximum Camera Resolution 6MP
Built-In PoE Ports 4
PoE Interface RJ45 10/100Mbps
PoE Standard IEEE 802.3af/at
PoE Power Budget ≤36W
Incoming Bandwidth 40Mbps
Outgoing Bandwidth 60Mbps
Compression H.265+ / H.265 / H.264+ / H.264
Maximum Decoding 1-ch @ 6MP / 2-ch @ 4MP / 4-ch @ 1080p
Synchronous Playback 4 Channels
HDMI Output 1
Maximum HDMI Resolution 1920 × 1080 @ 60Hz
VGA Output 1
Maximum VGA Resolution 1920 × 1080 @ 60Hz
Output Mode HDMI/VGA Simultaneous
Network Interface 1 × RJ45 10/100Mbps
Remote Connections 16
SATA Interfaces 1
Maximum HDD Capacity 6TB
USB Ports 2 × USB 2.0
Alarm In/Out N/A
Power Supply 48V DC, 1A
Power Consumption ≤10W
Dimensions 200 × 200 × 48mm
Weight ≤1kg

Certifications
CE Compliance:
- EN50130-4
- EN 61000-3-2
- EN 61000-3-3
Ideal Applications
The HIKVISION 4-Channel Mini PoE NVR is suitable for:
- Homes
- Small offices
- Retail stores
- Small warehouses
- Restaurants
- Takeaway outlets
- Reception areas
- Small commercial premises
- Small IP CCTV installations
Why Choose This HIKVISION NVR?
The HIKVISION 4-Channel Mini 4 PoE 1U NVR provides a compact all-in-one recording solution for small IP CCTV installations. Its four integrated PoE ports simplify camera connectivity, while support for cameras up to 6MP, H.265+ compression and four-channel synchronous playback provides the essential functionality required for everyday surveillance.
With 40Mbps incoming bandwidth, 60Mbps outgoing bandwidth, HDMI/VGA simultaneous output and support for a single HDD up to 6TB, it is a practical recorder for surveillance systems requiring up to four IP cameras.
