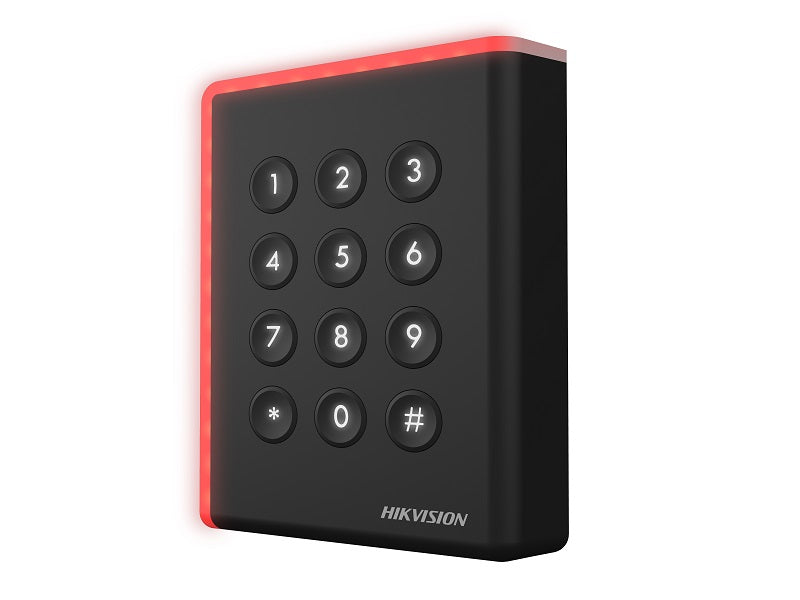

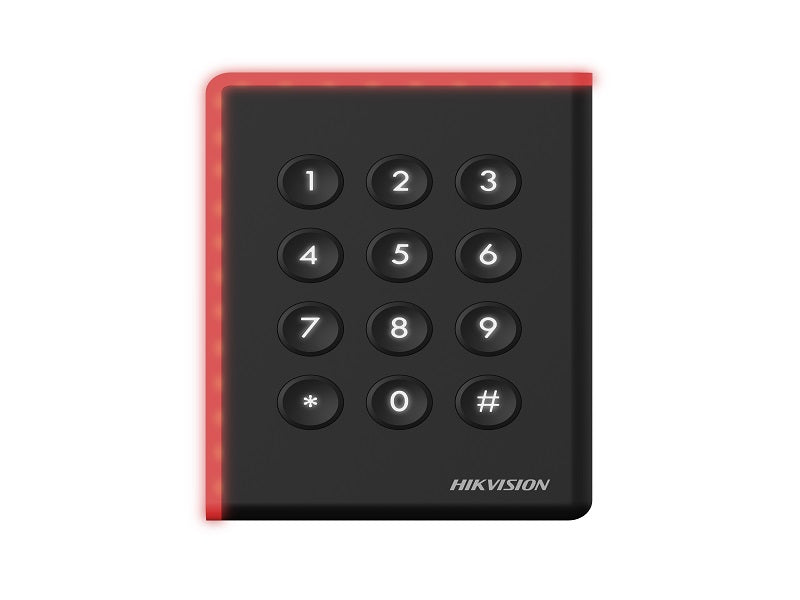

HIKVISION Pro 1108AM Series Card Reader
HIKVISION Pro 1108AM Series Card Reader

HIKVISION Pro 1108AM Series Card Reader

HIKVISION
R 599R 799
Estimated delivery 2–4 working days
In stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 599

Description

Supports reading M1 card (Frequency: 13.56 MHz). Supports reading Desfire&Felica card (DS-K1108AD/DS-K1108ADK). 20 `b0C to 65 `b0C (-4 `b0F to 149 `b0F).

Key features

  • Supports RS-485, Wiegand (W26, W34) protocol, and OSDP protocol
  • Supports reading EM card (Frequency: 125 KHz) (DS-K1108AE/DS-K1108AEK'a3`a9
  • Tamper-proof function
  • Built-in buzzer for status indication
  • Authentication
  • Card radio frequency standard
  • Working temperature
  • Working humidity
  • Protective level
  • 123 mm `d7 88 mm `d7 21 mm (4.84" `d7 3.46" `d7 0.83")
  • Installation
  • Wall mounting
  • Keypad
  • Buzzer
  • Beeper
  • Function
  • ID settings
  • via DIP switch

Specifications

  • Ds-k1108am
  • Pro 1108A Series Card Reader
  • ISO 14443-A
  • 12 VDC, 2 W
  • ≤ 2 W
  • 10% to 90% (no condensing)
  • IP65
  • Gross weight: 0.37 kg (0.82 lb)
  • Net weight: 0.14 kg (0.31 lb)
  • DS-K1108AE/DS-K1108AM/DS-K1108AD: No keypad
  • DS-K1108AEK/DS-K1108AMK/DS-K1108ADK: With keypad

Frequently Bought Together Frequently bought

Product Information

Categories Hikvision / Security & Surveillance / Specials
Brand Hikvision
Model DS-K1108AM
Protocols RS-485, Wiegand (W26/W34), OSDP
Card Standard ISO 14443-A
Power Supply 12 VDC, 2 W
Working Temperature -20 C to 65 C
Working Humidity 10% to 90%
Protective Level IP65
Dimensions 123 x 88 x 21 mm
Installation Wall mounting
Weight 0.14 kg (net)
Barcode 6941264062899
