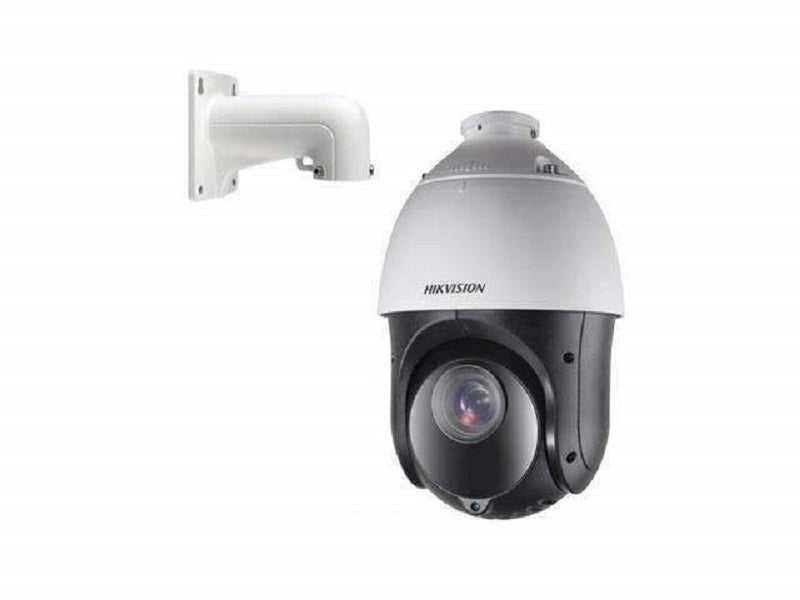

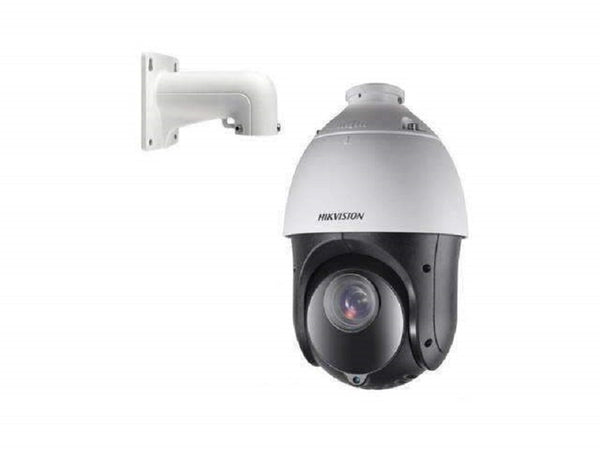

Hikvision DS-2AE4225TI-D PTZ dome shown beside its separate wall-mount bracket

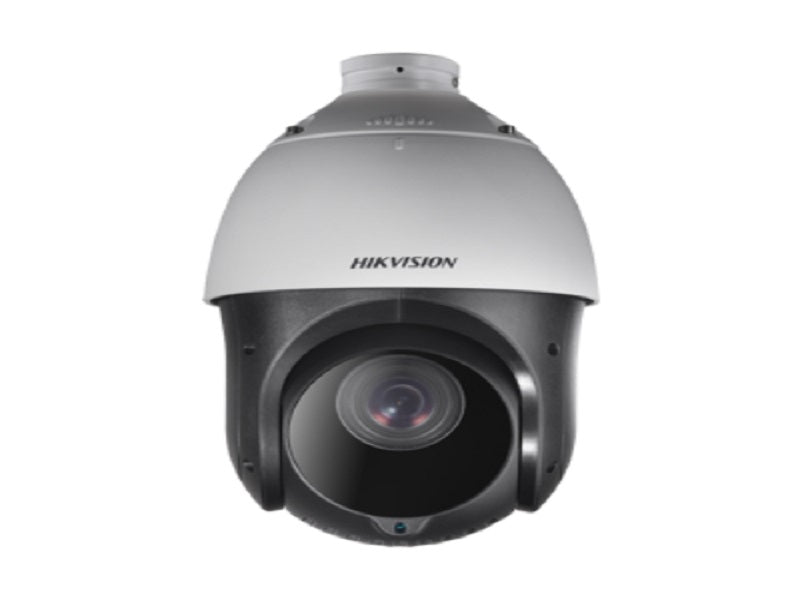

Hikvision PTZ speed dome camera, straight-on front view of dome and lens

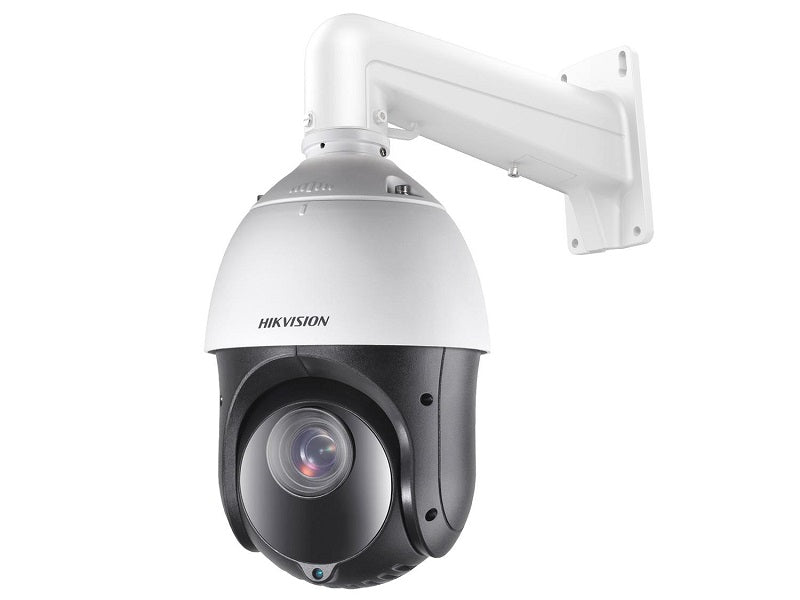

Hikvision PTZ speed dome assembled on wall-mount bracket, three-quarter view

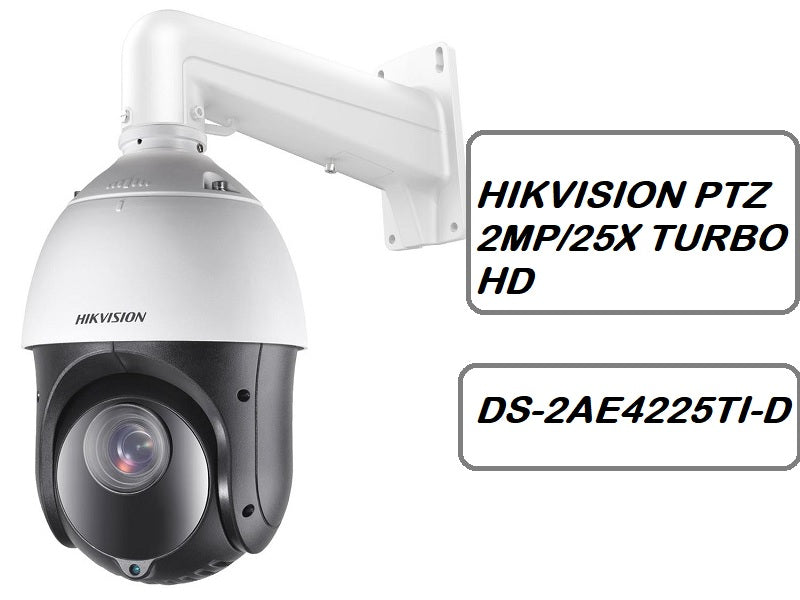

Hikvision PTZ dome on wall bracket with 25x Turbo HD feature callout graphic

Hikvision DS-2AE4225TI-D 2MP PTZ Speed Dome - 25x Zoom, 100m IR, True WDR, Turbo HD

DS-2AE4225TI-D

HIKVISION
R 4,433R 6,499
Estimated delivery 1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Flexible payments from only R 738.83 over 2–6 instalments
Price: R 4,433

Description

Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples. Pattern: 5 patterns, with the total recording time no less than 10 minutes.

Key features

  • Focal Length: 4.8 mm to 120 mm, 25`d7 Optical
  • Zoom Speed: Approx. 3.2 s (optical, wide to tele)
  • Pan & Tilt
  • Patrol: 10 patrols, up to 32 presets per patrol
  • Infrared
  • Video Output: Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
  • UTC function: UTC protocol (or HIKVISION-C protocol in previous DVR)
  • TVS 4,000V lightning protection, surge protection and voltage transient protection

Specifications

  • Ds-2ae4225ti-d
  • 2 MP IR Turbo 4-Inch Speed Dome
  • 1/2.8″ progressive scan CMOS
  • 1920 `d7 1080 resolution
  • 25`d7 optical zoom, 16`d7 digital zoom
  • 120 dB true WDR (Wide Dynamic Range)
  • Up to 100 m IR distance
  • 3D intelligent positioning
  • Image Sensor: 1/2.8″ Progressive Scan CMOS
  • Effective Pixels: 1920(H)x1080(V)
  • Signal System: PAL/NTSC
  • Minimum Illumination: Color: 0.005 Lux @(F1.6, AGC ON)
  • B/W: 0.001 Lux @(F1.6, AGC ON)
  • 0 lux with IR
  • AGC: Auto/Manual
  • BLC: on/off
  • WDR: ≥ 120 dB
  • Anti-shake: On / Off
  • Shutter Time: PAL: 1-1/10,000s
  • NTSC: 1-1/10,000s
  • Day& Night: ICR
  • Digital Zoom: 16x
  • Privacy Mask: 8 programmable privacy masks
  • Auto Focus: Auto / Semi-automatic / Manual
  • Lens
  • Field of View: 57.6`b0 to 2.5`b0 (wide-tele)
  • Minimum Working Distance: 10-1500mm (Wide-Tele)
  • Aperture Range: F 1.6 to F 3.5
  • Pan Range: 360`b0endless
  • Pan Speed: Pan manual speed: 0.1`b0 to 80`b0/s
  • Pan preset speed: 80`b0/s
  • Tilt Range: -15`b0-90`b0 (Auto Flip )
  • Tilt Speed: Tilt manual speed: 0.1`b0 to 80`b0/s
  • Tilt preset speed: 80`b0/s
  • Number of Preset: 256
  • Power-off Memory: Support
  • Park Action: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
  • PTZ Position Display: ON/OFF
  • IR Distance: 100m
  • IR irradiation angle: Adjustable by zoom
  • RS-485 Protocols: HIKVISION, Pelco-P, Pelco-D, self-adaptive
  • Menu Language: English
  • Power Supply: 12V DC
  • Power Consumption: Max.20 W (IR:7 W)
  • Working Temperature/Humidity: -30 `b0C-65`b0C(-22`b0F-149`b0F)
  • 90% or less
  • Protection Level: IP66 standard (outdoor dome)

Frequently Bought Together Frequently bought

Product Information

Categories Hikvision / Hikvision Analog Cameras / Security & Surveillance / Specials
Brand Hikvision
Model DS-2AE4225TI-D
Type 2MP IR Turbo 4-Inch Speed Dome
Resolution 1920 x 1080
Image Sensor 1/2.8" Progressive Scan CMOS
Lens 4.8-120 mm, 25x Optical
Digital Zoom 16x
WDR ≥ 120 dB True WDR
IR Distance 100 m
Pan Range 360° endless
Tilt Range -15° to 90°
Video Output Switchable TVI/AHD/CVI/CVBS
Power Supply 12V DC
Power Consumption Max 20 W
Protection IP66
Operating Temperature -30°C to 65°C
Barcode 6954273689391
