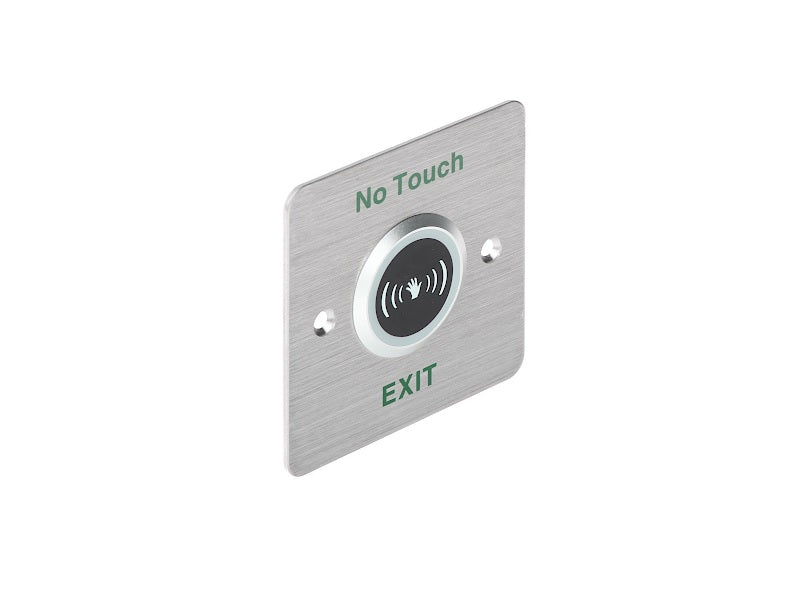

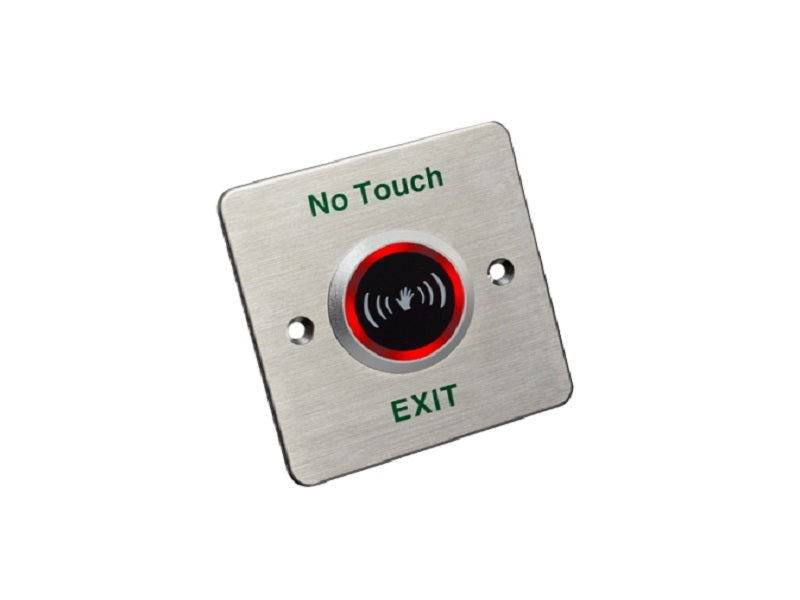

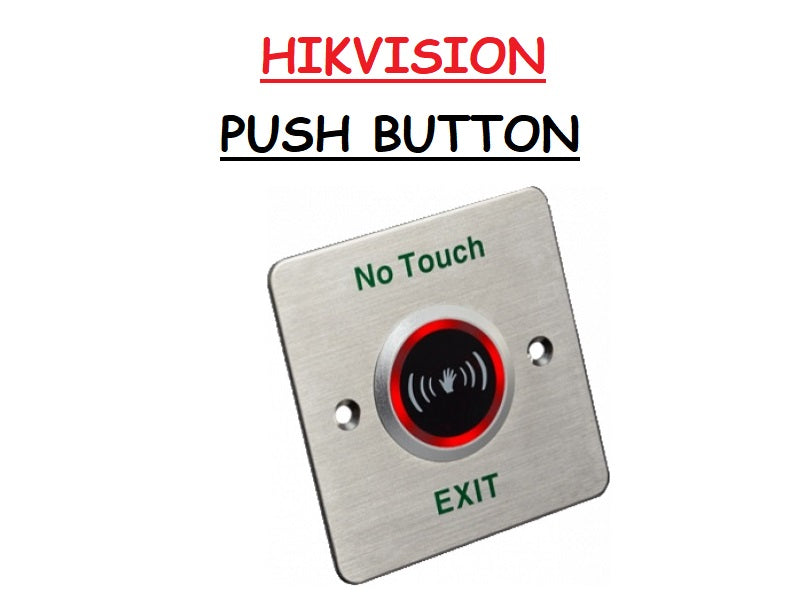

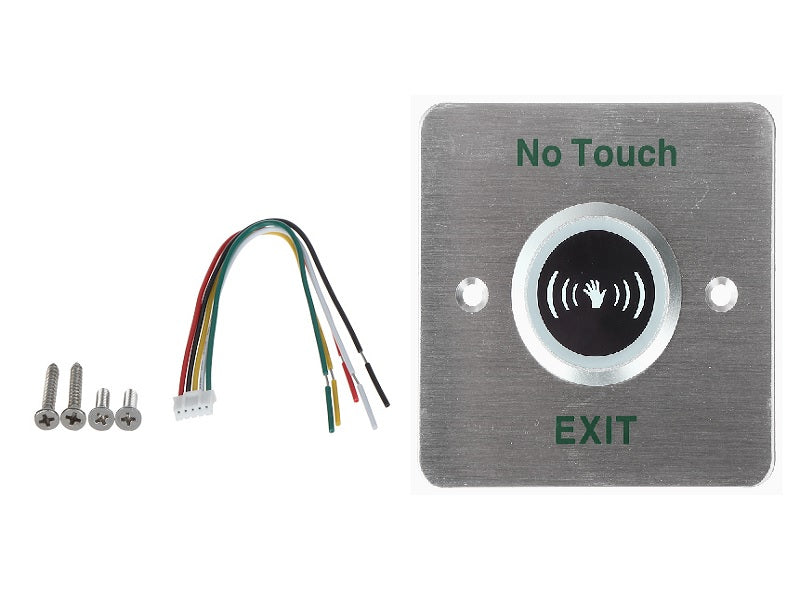

Hikvision DS-K7P03 No-Touch Exit Button - Stainless Steel, NO/NC, 12VDC, LED

Open doors without physical contact using a hygienic, contactless exit button. The Hikvision DS-K7P03 detects a hand or object within range and triggers the door release relay, giving access control installations a touch-free alternative to traditional push buttons.

Built with a stainless steel housing in a silver and black finish, it's designed to withstand frequent daily use in commercial and residential access points. LED indication confirms activation at a glance, and the detection range of 40mm to 120mm allows reliable triggering with a natural hand-wave motion rather than requiring precise contact.

Key features

• No-touch, contactless activation
• Detection range of 40mm to 120mm
• NO/NC contact type for flexible wiring to door controllers
• Relay maximum load of 1A / 30V DC
• LED indication for activation confirmation
• Stainless steel construction in silver and black
• Operating temperature range of -20°C to 50°C
• 12V DC power supply

Ideal for

• Access control door release points
• Hygiene-conscious environments such as clinics, offices and retail
• Indoor and outdoor installations within its rated temperature range
• Retrofitting existing door controllers with a contactless option

Good to know

Confirm your door controller or access control panel supports NO/NC dry contact inputs before wiring the DS-K7P03 in, and note the standby (40mA) and operating (70mA) current draw when sizing your 12V DC power supply, especially if multiple access control devices share the same supply.
