HIKVISION Smart M…
HIKVISION Smart Managed Access Point
HIKVISION Smart Managed Access Point

HIKVISION Smart Managed Access Point

HIKVISION
R 1,499
Estimated delivery 2–4 working days
Out of stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
Out of stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 1,499

Description

0 `b0C to 40 `b0C (32 `b0F to 104 `b0F). 40 `b0C to 70 `b0C (-40 `b0F to 158 `b0F).

Key features

  • Auto RF Optimization
  • Support Intelligent Fast Roaming
  • Installation Mode

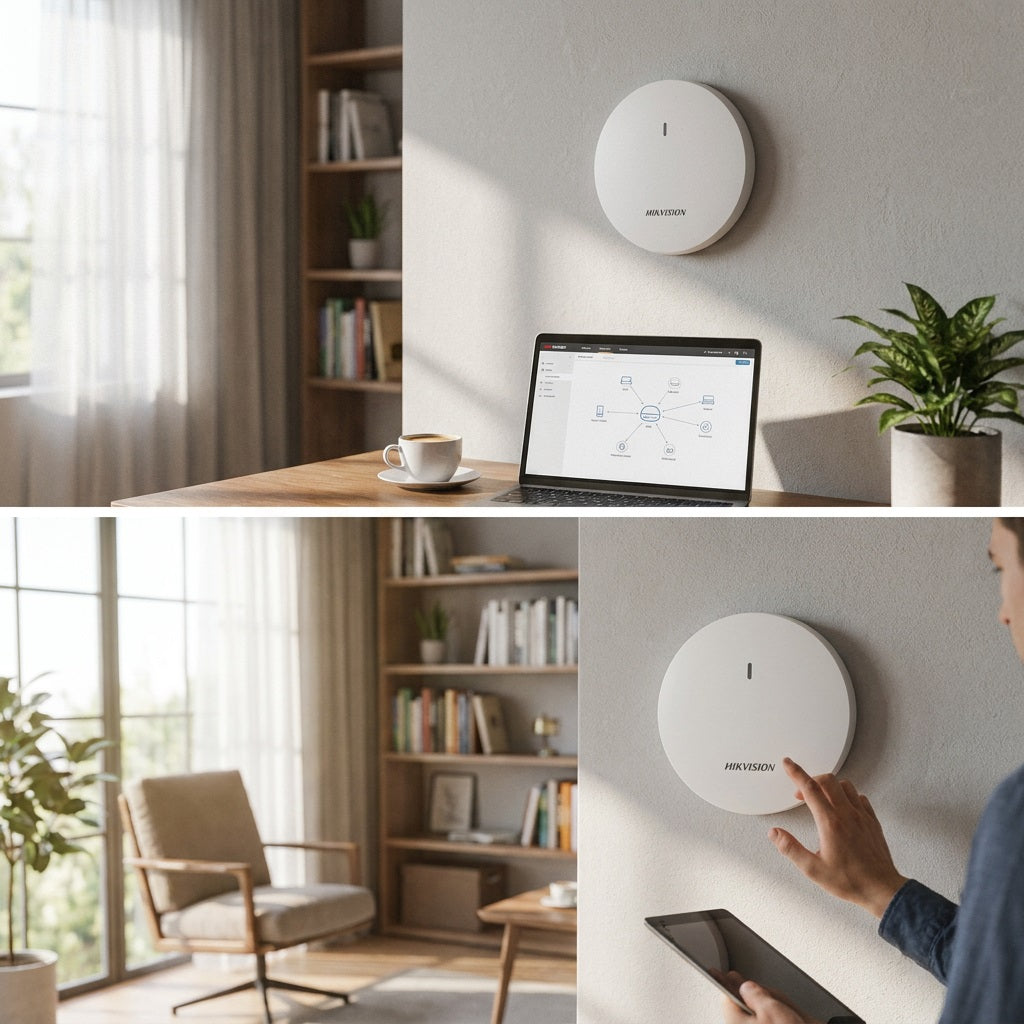

  • Desk-Mounted,Wall-Mounted,Ceiling Mounting
  • Working Temperature
  • Working Humidity
  • 220 mm `d7 220 mm `d7 35 mm (8.66`` `d7 8.66`` `d7 1.37``)
  • Packing List
  • 1800 M Access Point `d71,Screw Pack `d7 1,Quick Start Guide `d71,Regulatory Compliance and Safety Information `d7 1
  • Max. 11.35 W
  • WLAN Parameters
  • Maximum Number of Clients
  • Recommended Number of Clients
  • Maximum Number of SSIDs
  • Working Frequency Band
  • Spatial Streams
  • 2.4 GHz, 2 `d7 2 , MU-MIMO, 5 GHz, 2 `d72 , MU-MIMO
  • Channel Width
  • 2.4 GHz: Auto/20 /40 MHz,5 GHz: Auto/20 /40 /80/MHz
  • Number of Antennas
  • Antenna Type
  • Built-in omnidirectional antennas
  • Antenna Gain
  • Modulation Technology
  • OFDM'a3°BPSK@6/9Mbps'a1`a2QPSK@12/18Mbps'a1`a216-QAM@24Mbps'a1`a264-QAM@48/54Mbps; DSSS'a3° DBPSK@1Mbps'a1`a2DQPSK@2Mbps'a1`a2CCK@5.5/11Mbps; MIMO-OFDM(11n)`a3°MCS 0-15; MIMO-OFDM(11ac)`a3° MCS 0-9; MIMO-OFDM(11ax)`a3° MCS 0-11
  • WLAN Security
  • WAP-PSK,WAP2-PSK,WPA-WAP2-PSK,Blocklist & Allowlist,Support Multiple encryption key triggered dynamic unicast/multicast key update,Support Open system/shared key authentication,Support wireless endpoint access,Support SSID and VLAN binding,Support 802.11i
  • Management & Maintenance
  • Centralized AC management
  • Version Upgrade
  • upgrade on Web
  • LED Indicator
  • Yellow/green/blue for different working states, flashing mode
  • Reset Button
  • Hardware Resetting Button
  • Approval
  • EMC
  • Ce-emc (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
  • Safety
  • CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017),UL (UL 60950-1)
  • Chemistry
  • Radio
  • EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17

Specifications

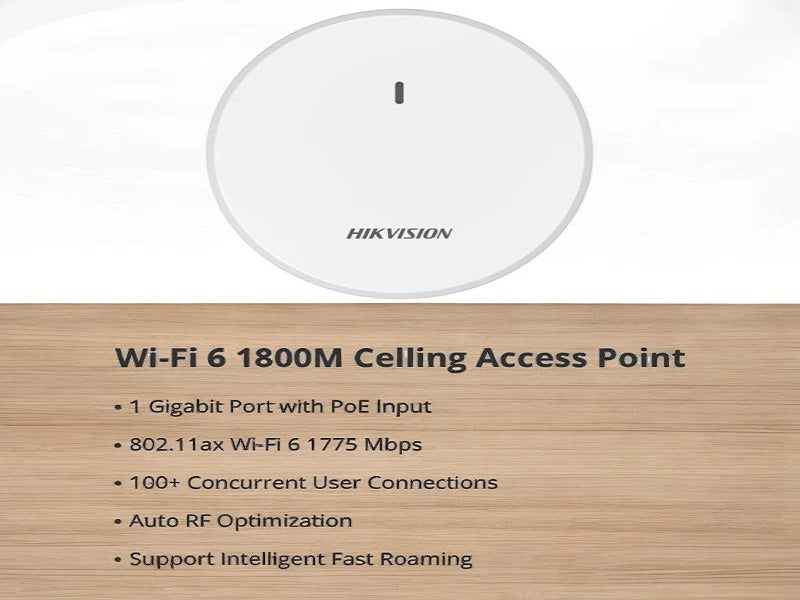

  • 1800mbps Wi-Fi 6 Ceiling
  • Wi-Fi 6 1800M Celling Access Point
  • 1 Gigabit Port with PoE Input
  • 802.11ax Wi-Fi 6 1775 Mbps
  • 100+ Concurrent User Connections
  • 0.4 kg (0.88 lb)
  • 5% to 95% (no condensation)
  • Product Dimensions (W `d7 H `d7 D)
  • 256
  • 100
  • 8
  • radio 1: 5G(11a/n/ac/ax), radio 2: 2.4G(11b/g/n/ax)
  • Wi-Fi 6
  • 2.4 G: 574 Mbps,5 G: 1201 Mbps
  • 2.4GHz'a3°2`a3`bb5GHz'a3°2
  • 2.4 GHz: 3 dBi,5 GHz: 4 dBi
  • 20 dBm
  • 1 `d7 Gigabit RJ45 uplink port
  • IEEE 802.3af/at POE,12 VDC 1.5 A
  • CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)

Frequently Bought Together Frequently bought

Product Information

Categories Hikvision / Networking
Brand Hikvision
Wi-Fi Standard Wi-Fi 6 (802.11ax)
Speed 1800 Mbps (2.4G: 574 + 5G: 1201)
Ports 1 x Gigabit RJ45 (PoE Input)
Power Supply IEEE 802.3af/at PoE, 12 VDC 1.5 A
Max Clients 256
Recommended Clients 100
SSIDs Up to 8
Transmit Power 20 dBm
Antenna Gain 2.4 GHz: 3 dBi, 5 GHz: 4 dBi
Dimensions 220 x 220 x 35 mm
Weight 0.4 kg
Power Consumption Max 11.35 W
Installation Desk / Wall / Ceiling
Barcode 6942160449531
