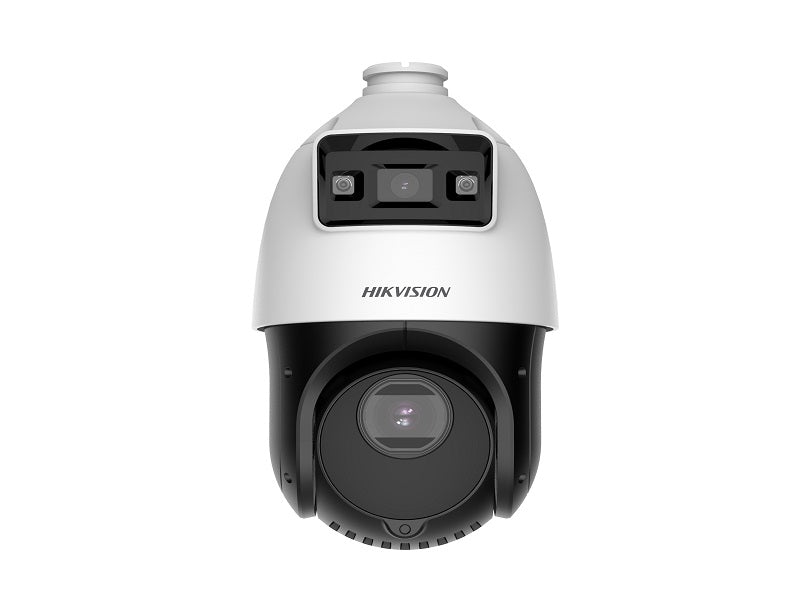

HIKVISION TendemVu 2Mp 25X Ip Ptz Camera

TandemVu 4-inch 2 MP 25X Colorful & IR Network Speed Dome. Captures a large area and great details at the same time.

Key features

• Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
• Secures an expansive area with 25`d7 optical zoom and 16`d7 digital zoom
• Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
• Expansive night view with up to 100 m IR distance & 30 m white light
• Focuses on human and vehicle targets classification based on deep learning
• Image Sensor
• [Bullet channel]: 1/2.8" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
• Max. Resolution
• [Bullet channel] 1920 `d7 1080, [PTZ channel] 1920 `d7 1080
• Min. Illumination
• [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;
• [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed
• Day & Night
• ICR
• Zoom
• [PTZ channel] 25 `d7 optical, 16 `d7 digital
• Slow Shutter
• yes
• Focal Length
• [Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 `d7 optical
• FOV
• [Bullet channel]: Horizontal field of view: 106.1`b0, Vertical field of view: 56.8`b0`a3`acDiagonal field of view: 126.5`b0;
• [PTZ channel]:
• Focus
• semi-auto||manual||auto
• Zoom Speed
• Illuminator
• Supplement Light Type
• Supplement Light Range
• [PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m
• Smart Supplement Light
• PTZ
• Movement Range (Pan)
• Movement Range (Tilt)
• Pan Speed
• pan speed: configurable from 0.1`b0 to 80`b0/s; preset speed: 80`b0/s
• Tilt Speed
• tilt speed: configurable from 0.1`b0 to 80`b0/s, preset speed 80`b0/s
• Proportional Pan
• Presets
• Preset Freezing
• Patrol Scan
• 8 patrols, up to 32 presets for each patrol
• Pattern Scan
• Park Action
• preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
• Scheduled Task
• preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
• Main Stream
• [Bullet channel]:
• 50 Hz: 25 fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720)
• 60 Hz: 30 fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 25 fps (704 `d7 576, 640 `d7 480, 352 `d7 288)
• 60 Hz: 30 fps (704 `d7 480, 640 `d7 480, 352 `d7 240)
• Third Stream
• 50 Hz: 25 fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720, 704 `d7 576, 640 `d7 480, 352 `d7 288)
• 60 Hz: 30 fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720, 704 `d7 480, 640 `d7 480, 352 `d7 240)
• baseline profile||main profile||high profile
• main profile
• Scalable Video Coding (SVC)
• Region of Interest (ROI)
• 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC)
• Protocols
• Simultaneous Live View
• API
• Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host
• Security
• Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
• NAS (NFS, SMB/ cifs)|| ANR
• Client
• Web Browser
• IE 10+, Chrome 57+, Firefox 52+, Safari 12+
• Image
• Image Parameters Switch
• Image Settings
• sharpness, saturation, brightness, contrast
• Day/Night Switch
• day, night, auto, scheduled-switch
• Wide Dynamic Range (WDR)
• SNR
• Defog
• Digital defog
• Image Stabilization
• EIS
• Image Enhancement
• Privacy Mask
• [Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
• Regional Focus
• Regional Exposure
• Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
• 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm'b110%, 1 audio output, line level, impedance: 600 `d9
• Alarm
• Reset
• Event
• Basic Event
• Motion detection,video tampering alarm,exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot), alarm input and output
• Smart Event
• audio exception detection,region entrance detection,region exiting detection,intrusion detection,Line crossing detection

Specifications

• Ds-2se4c225mwg-e_12f0
• High quality imaging with 2 MP resolution
• Supports 12V DC & PoE+
• 1 s to 1/30,000 s
• Lens
• Horizontal field of view: 54.8`b0 to 2.8`b0 (wide-tele),
• Vertical field of view: 31.4`b0 to 1.5`b0 (wide-tele),
• Diagonal field of view: 62.2`b0 to 3.2`b0 (wide-tele)
• Aperture
• [Bullet channel]: F1.0; [PTZ channel]: F1.6
• [PTZ channel]: approx. 3.6 s
• [PTZ channel]: IR; [Bullet channel]: White Light
• 360`b0
• 15`b0 to 90`b0 (auto flip)
• 300
• 4 pattern scans
• 3D Positioning
• H.265||h.264||mjpeg
• 32 kbps to 16384 kbps
• H.264 Type
• H.265 Type
• 8 fixed regions for each stream
• G.711,g.722.1,g.726,mp2l2,pcm,aac-lc
• 8 kHz,16 kHz,32 kHz,48 kHz
• IPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour||WebSocket||WebSockets
• 20
• 32
• iVMS-4200||Hik-Connect
• 120 dB
• ≥ 52 dB
• Blc,hlc,3d DNR
• RJ45, self-adaptive 10M/100M Ethernet port
• 1 alarm input, 1 alarm output
