HIKVISION Touch Display Module

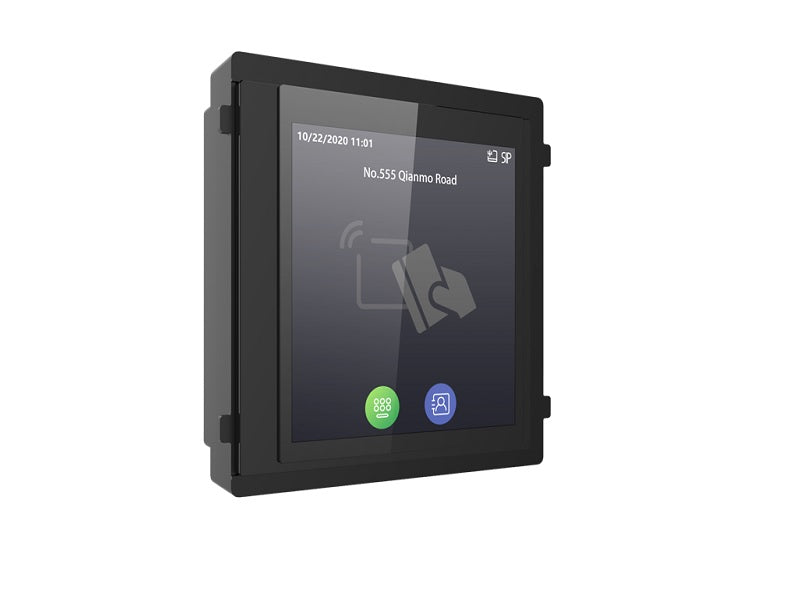

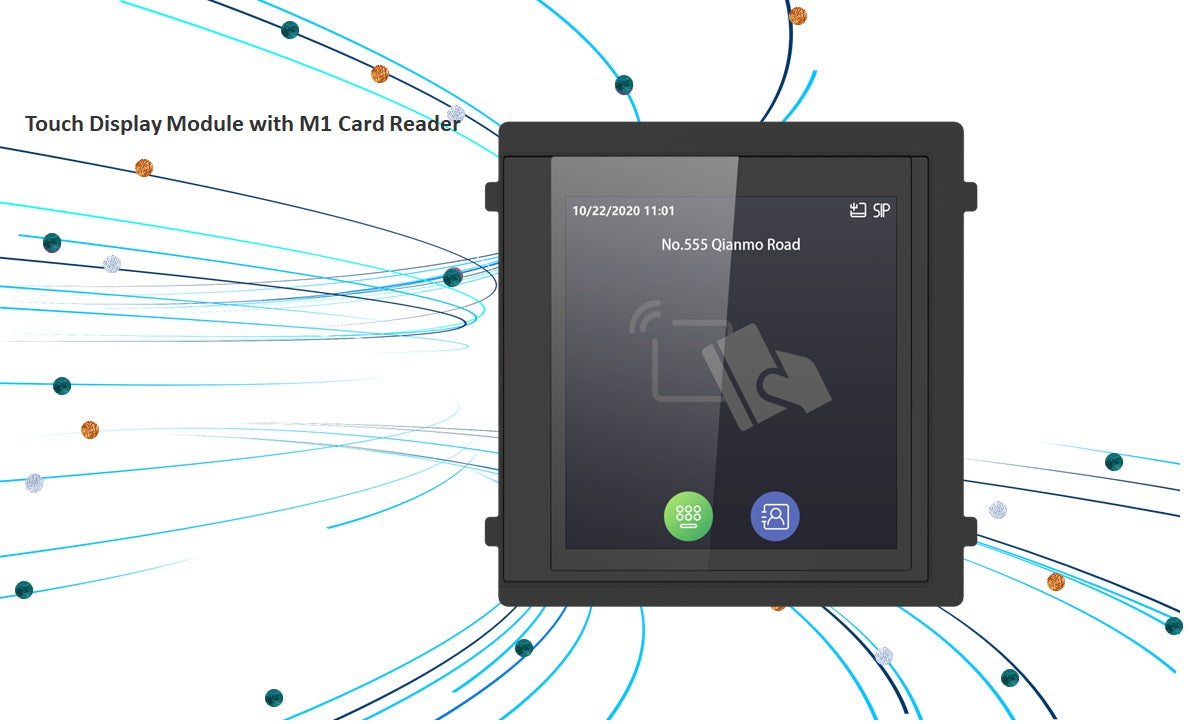

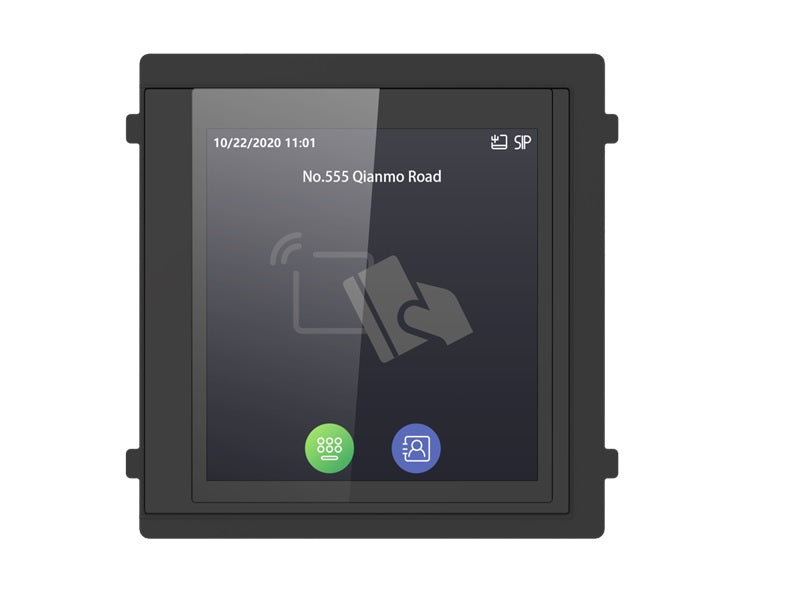

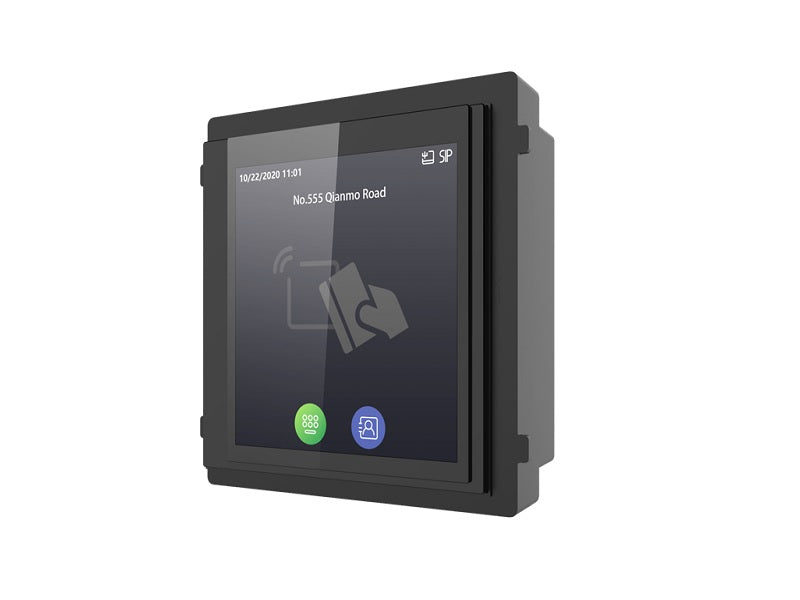

Hikvision DS-KD-TDM Touch Display Module – Intuitive Control for Intercom Systems. The Hikvision DS-KD-TDM is a premium touch display module designed for integration with the Hikvision KD8 Series Video Intercom Door Stations. This sleek, 4-inch color touch screen module provides a modern, user-friendly interface for residents and visitors, offering intuitive access to calling functions, contact lists, and system settings.

Key features

• Station (DS-KD-TDM)
• Crafted for high performance and reliability, the DS-KD-TDM is ideal for apartment buildings, office complexes, and gated communities seeking a stylish and functional upgrade to their access control systems.
• 4" Capacitive Touchscreen – High-resolution display for sharp visuals and easy navigation
• Modular Design – Seamless integration with other KD8 modules (camera, keypad, card reader, etc.)
• User-Friendly Interface – Clearly laid out menus for calling residents, searching contacts, or accessing directories
• High Durability – Built with robust materials suitable for both indoor and sheltered outdoor use
• Easy Installation – Compatible with Hikvision KD8 Series surface and flush mounting accessories
• Power Supply – Powered via the main KD8 door station module (no separate power required)
• Residential Complexes
• Commercial Buildings
• Office Parks
• Multi-Tenant Units
• Smart Access Control Systems
• Dimensions: Approx. 98.5 mm `d7 100 mm `d7 33.7 mm
• Installation: Surface or flush mount (using compatible accessories)

Specifications

• Display: 4" LCD Touch Screen
• Resolution: 480 `d7 320
• Power Supply: 12 VDC (via Main Module)
• Working Temperature: -20`b0C to 60`b0C
