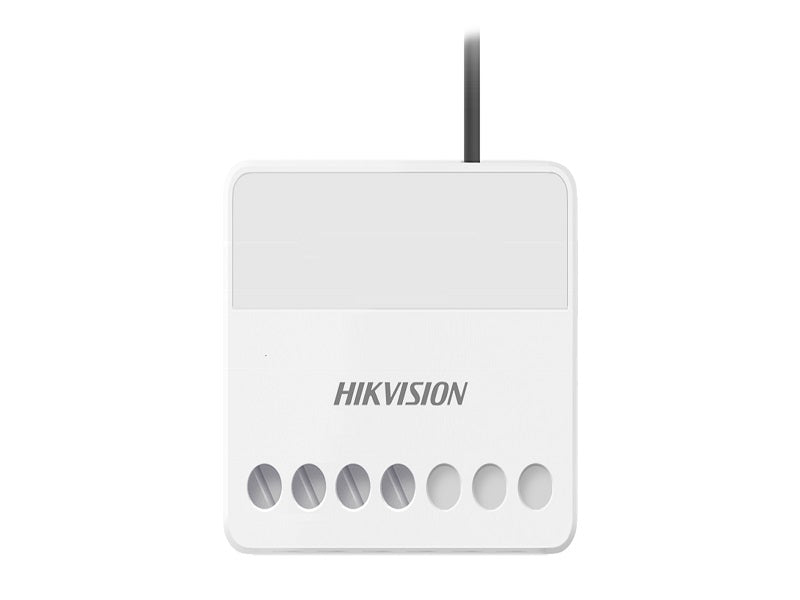

HIKVISION Wireless High-Voltage Relay
HIKVISION Wireless High-Voltage Relay
HIKVISION
R 599R 799
Estimated delivery
2–4 working days
In stock
FREE NATIONWIDE DELIVERY
on orders over R 500
on orders over R 500
Quantity
In stock
When do I get it?
Estimated delivery times depend on where you are. Your exact date is confirmed at checkout.
| Delivery destination | Delivery time |
|---|---|
| Cape Town, Durban, Johannesburg & Pretoria | 2–4 working days |
| Regional areas | 5–6 working days |
| Remote areas | 3–7 working days |
- Interest Free Payments available
- Hassle Free Returns within 7 days
- 6-month limited warranty
Description
LED display, show status of device and replay on/off display. Small case design, which can be put into hiding places easily.
Key features
- Wall Switch
- Automation operating, one button turn on/off from APP/Keyfob/Keypad
- Setting scenarios by different events
- Scenario setting
- By Alarm, By Operation, By Fault, By Schedule, By Manual
- Learning button
- LEDs status
- 3, Register/Signal (Green/Red), Power (Green), Relay Status (Blue)
- Electrical characteristics
- Operation humidity
- Operation temperature
- Wireless transmission
- RF frequency
- RF method
- Two way communication
- RF modulation
- RF distance
- Wireless security
- Installation method
- Shell material
- Plastic
- White
- Device management
Specifications
- Ds-pm1-o1h-we_c
- 868MHz two-way wireless communication
- AES-128 encryption
- 1, For register
- 1, for debug
- AC 100v – 240v, 50/60 HZ
- 10`a3`a5~90`a3`a5
- ﹣10℃~+55℃
- 868MHz
- 2gfsk
- 1600m
- AES-128
- Wall Mounting or Inside 86 box
- Dimension(WxHxD)
- 38x25x18mm
- Color
- 31.5g
- 1, NO/NC (AC 100~240v, Max 13A'a3`a9
Frequently Bought Together Frequently bought
Product Information
| Categories | Hikvision / Hikvision Alarm Systems / Security & Surveillance / Specials |
| Brand | Hikvision |
| Model | DS-PM1-O1H-WE_C |
| Type | Wireless High-Voltage Relay / Wall Switch |
| RF Frequency | 868MHz two-way |
| RF Modulation | 2GFSK |
| RF Distance | 1600 m |
| Encryption | AES-128 |
| Power Input | AC 100-240V, 50/60 Hz |
| Relay Output | 1 NO/NC, Max 13A @ AC 100-240V |
| Operating Temperature | -10 C to +55 C |
| Operating Humidity | 10% to 90% |
| Dimensions | 38 x 25 x 18 mm |
| Weight | 31.5 g |
| Material | Plastic |
| Installation | Wall Mounting or Inside 86 box |
