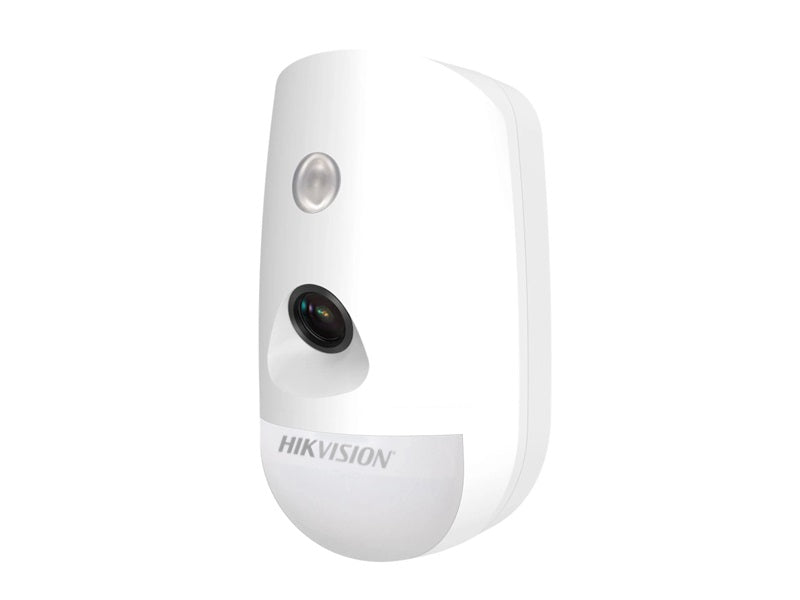

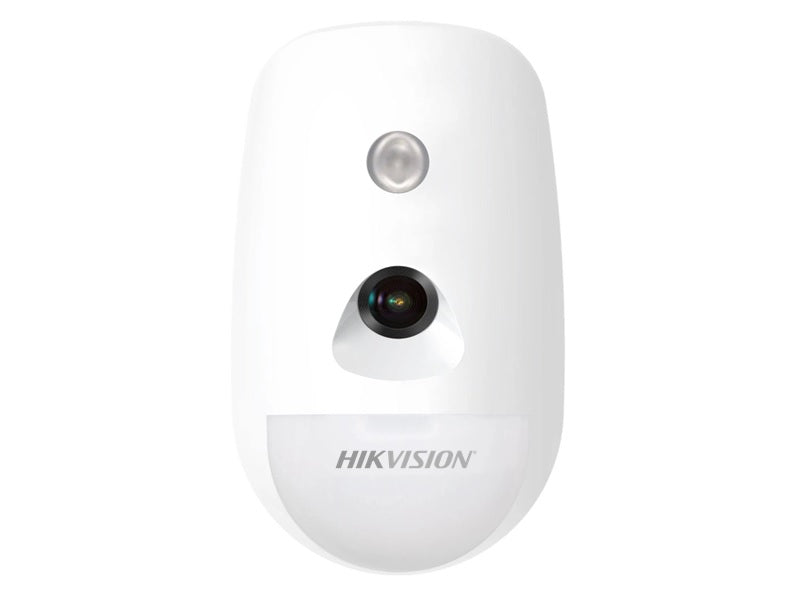

HIKVISION Wireless PIR-Camera Detector

SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics. Standard Battery Life - Up to 6 years (standby time).

Key features

• Large integrated memory buffer for image storage
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Detection Performance;
• Detection MethodPassive - Infrared;Video Verification
• Digital Temperature Compensation - Support
• Creep Zone Protection - Support
• Feature;
• Digital Processing - Support
• Sealed Optics - Support
• Tamper Protection - Front;Rear
• Environment Temperature Indicator - Support
• Signal Strength Indicator - Support
• Video;
• Image Type - JPEG
• Fill Light - White Light
• Day/Night Switch - Color
• LED Indicator - Blue(Alarm)
• Transmission;
• Transmission Technology - CAM-X Wireless
• Transmission Method - Two-Way RF Wireless
• Enrolling Method - Power up;Remote ID;QR Code
• Electrical Characteristics;

Specifications

• Ds-pdpc12pf-eg2-we(b)
• HIKVISION Wireless PIR-Camera Detector - DS-PDPC12PF-EG2-WE(B)
• Detection range: 12m / 85.9`b0
• Up to 30KG pet immunity
• 24/7 colorful imaging
• Detection Range - 12m
• Detection Angle - 90`b0
• Detection Zones - 52
• Detectable Speed - 0.3`a1`ab2m/s
• Sensitivity - High;Auto;Pet
• Pet Immunity - 30Kg
• White Light Filter - 6500lux
• Field Angle - 88.4`b0(H), 54.0`b0(V)
• Resolusion - 160*120;320*240;640*480
• Fill Range -12m
• Interface;
• Power Switch - Power Up Enrolling
• Transmission Frequency868MHz
• Transmission SecurityAES-128 Encryption
• Transmission Range(Free Space)800m
• Power Supply - Battery Powered
• Battery Type - CR123A `d7 3
• Typical Voltage - 3V
