HIKVISION Wireless Pir Curtain Detector

DS-PDC15-EG2-WE is a two-way wireless detector featuring a solid curtain coverage up to 15m length by 3.6m height, it suitable for perimeter protection by setting up detection "curtain" walls or windows.

Key features

• Hikvision AX Pro Series Wireless PIR Curtain Detector DS-PDC15-EG2-WE
• Long range with narrow angle detection
• Fully remote configurable through APP
• Multiple enrollment method and easy installation design

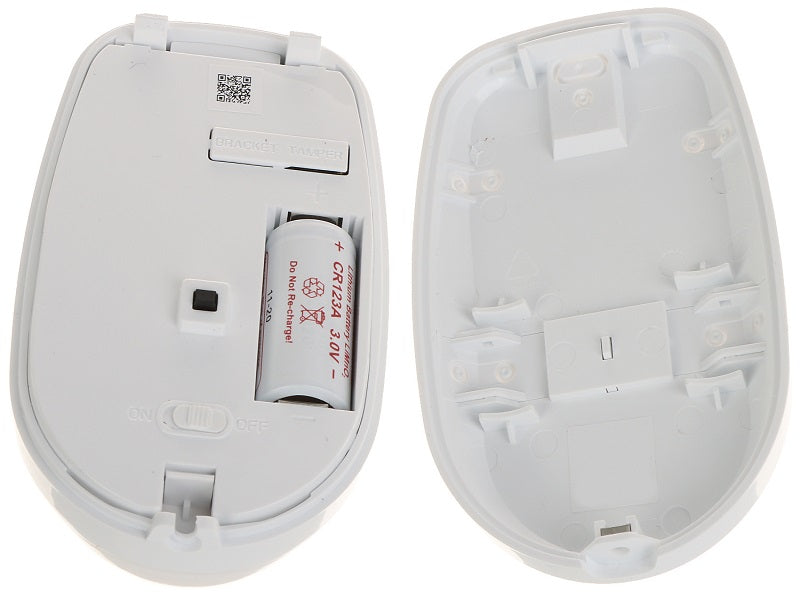

• Easy replaceable battery with PCB protected
• Detection Performance
• Feature
• Transmission
• Electrical Characteristics

Specifications

• Ds-pdc15-eg2-we
• Frequency hopping against jamming for reliable transmission
• Detection Method: Passive Infrared
• Detection Range: 15m
• Detection Angle: 6.3`b0
• Detection Zones: 18
• Detectable Speed: 0.3`ef'bd`9e2m/s
• Pet Immunity: None
• White Light Filter: 6500lux
• Digital Temperature Compensation: Support
• Creep Zone Protection: Support
• Digital Processing: Support
• Sealed Optics: Support
• Tamper Protection: Front ; Rear
• Signal Strength Indicator: Support
• Power Switch: Power Up Enrolling
• LED Indicator: Blue (Alarm)
• Transmission Technology: Tri-X Wireless
• Transmission Method: Two-Way RF Wireless
• Transmission Frequency: 868MHz
• Transmission Security: AES-128 Encryption
• Transmission Range(Free Space): 1.6Km
• Frequency Hopping: Support
• Enrolling Method: Power up;Remote ID;QR Code
• Standard Battery Life: Up to 5 years (standby time)
• Battery Type: 1x CR123A
• Typical Voltage: 3V
• Dimension(WxHxD): 65.5mm `d7 103mm `d7 48.5mm
• Weight: 128g
• Mounting Height: 2.4 to 3.6m
• Mounting Method: Wall
• Application Scenario: Indoor
• Bracket: Optional Wall & Ceiling Accessory
