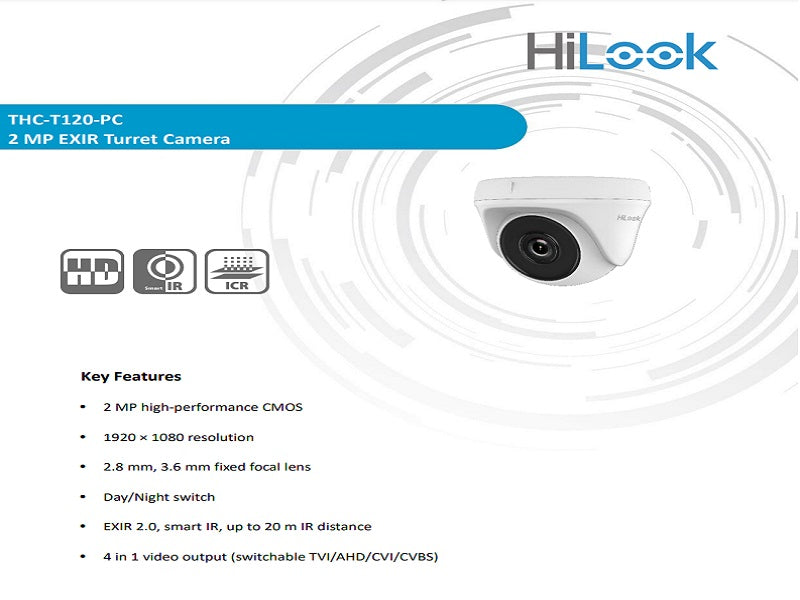

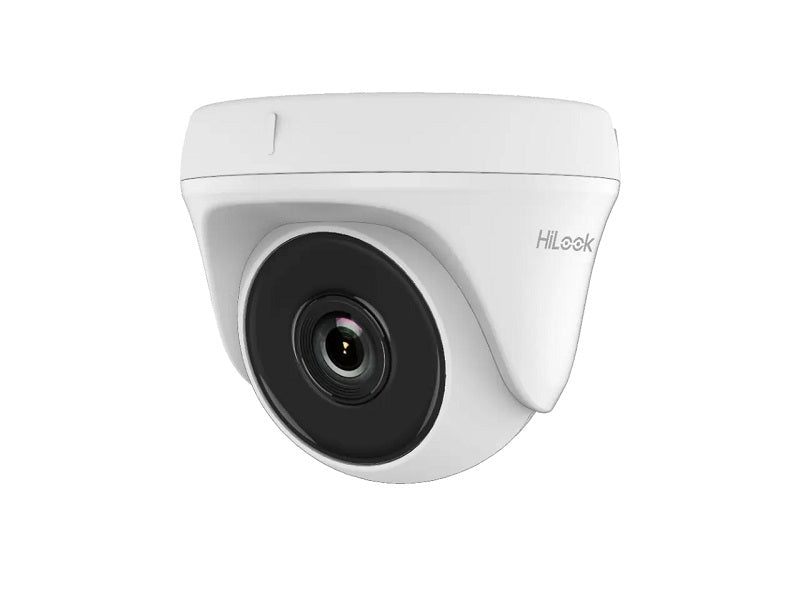

Hilook 1080P Dome Camera 2.8Mm

Smart IR, up to 20 m IR distanceWater resistant (IP66). 2.8 mm, horizontal FOV: 96.5`b0, vertical FOV: 48.9`b0, diagonal FOV: 120.5`b0.

Key features

• Switch Button
• Tvi/ahd/cvi/cvbs
• Menu
• Day/Night Mode
• IR cut filter
• DWDR (Digital Wide Dynamic Range)
• Support
• Language
• English
• Functions
• Backlight Compensation
• Image Sensor
• Pal/ntsc
• Frame Rate
• Shutter Time
• Min. Illumination
• 0.02 Lux@(F1.2, AGC ON), 0 Lux with IR
• Horizontal Field Of View
• 3.6 mm, horizontal FOV: 76.9`b0, vertical FOV: 40.6`b0, diagonal FOV: 92.0`b0
• Day & Night
• Synchronization
• Internal synchronization
• Angle Adjustment
• Pan: 0`b0 to 360`b0, Tilt: 0`b0 to 75`b0, Rotation: 0`b0 to 360`b0
• Max. 2.1 W
• Plastic
• IR Range
• `d8 85.4 mm `d7 76.12 mm ( `d8 3.38" `d7 2.67")
• 40 `b0C to 60 `b0C (-40 `b0F to 140 `b0F), Humidity: 90% or less (non-condensation)

Specifications

• Dnr/d-wdr thc-t120-pc28
• 2 MP Indoor Fixed Turret Camera
• 1080p turret camera
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
• 1 HD analog output
• Brightness, Sharpness, DNR, Mirror, Smart IR
• 2 MP CMOS image sensor
• PAL: 1080p@25fps
• NTSC: 1080p@30fps
• Resolution
• 1920 (H) `d7 1080 (V)
• 1/25 (1/30) s to 1/50,000 s
• Lens
• 2.8 mm, 3.6 mm
• Lens Mount
• M12
• 12 VDC `b1 15%
• Material
• Up to 20 m
• 130 g (0.29 lb.)
