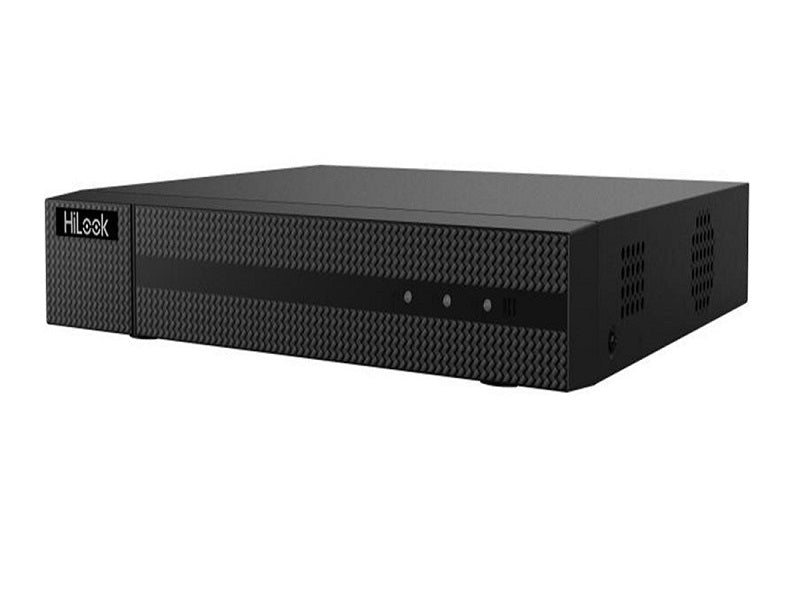

Hilook 16Ch 1080P Lite 1U Dvr 216Q

Up to 24 network cameras can be connected. Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;.

Key features

• Deep learning-based motion detection 2.0 for all analog channels
• Encoding ability up to 1080p @ 15 fps
• Human/Vehicle Analysis
• Quick search by object or event type is supported
• Recording
• Encoding Resolution
• 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
• Frame Rate
• For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
• For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
• 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
• Dual-Stream
• Support
• Stream Type
• 8-ch (up to 24-ch), each up to 4 Mbps
• BNC interface (1.0 Vp-p, 75 `d9), supporting coaxitron connection
• Incoming Bandwidth
• 3K(2960 x 1665)@20 fps, 5 MP(2560 `d7 1944)@20 fps, 4 MP(2560 `d7 1440)@30 fps, 4 MP(2560 `d7 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• 5 MP(2560 `d7 1944)@20 fps,4 MP(2560 `d7 1440)@30 fps, 4 MP(2560 `d7 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• 5MP(2880 `d7 1620)@25 fps, 5 MP(2592 `d7 1944)@20 fps, 4 MP(2560 `d7 1440)@30 fps, 4 MP(2560 `d7 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• Pal/ntsc
• 1-ch, 4K (3840 `d7 2160)/30Hz, 2K (2560 `d7 1440)/60Hz, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz
• 1-ch, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz
• 1-ch, RCA (2.0 Vp-p, 1 K'd9) (using the first audio input)
• Synchronous Playback
• Remote Connection
• Total Bandwidth
• TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Sata
• Alarm In/Out
• N/A
• Consumption
• Working Temperature
• 10 `b0C to +55 `b0C (+14 `b0F to +131 `b0F)
• Working Humidity
• 265 `d7 225 `d7 48 mm (10.4 `d7 8.9 `d7 1.9 inch)

Specifications

• Dvr-216q-m1
• 16-ch 1080p 1U H.265 DVR
• Efficient H.265 pro+ compression technology
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Motion Detection 2.0
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
• For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
• For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
• For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
• WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
• 32 Kbps to 6 Mbps
• G.711u
• 64 Kbps
• 2-ch (up to 18-ch)
• Up to 6 MP resolution
• Support H.265+/H.265/H.264+/H.264 IP cameras
• 16-ch
• 96 Mbps
• 1-ch, RCA (2.0 Vp-p, 1 K'd9)
• 16-ch via coaxial cable
• 1-ch, RCA (Linear, 1 K'd9)
• 128
• 128 Mbps
• 1, RJ45 10M/100M/1000M
• 1 SATA interface
• Capacity
• Up to 10TB capacity for each disk
• Real panel: 2 `d7 USB 2.0
• 12 VDC, 2 A
• ≤ 24 W
• 10% to 90%
• Dimension (W `d7 D `d7 H)
• ≤ 1.2 kg (2.6 lb.)
