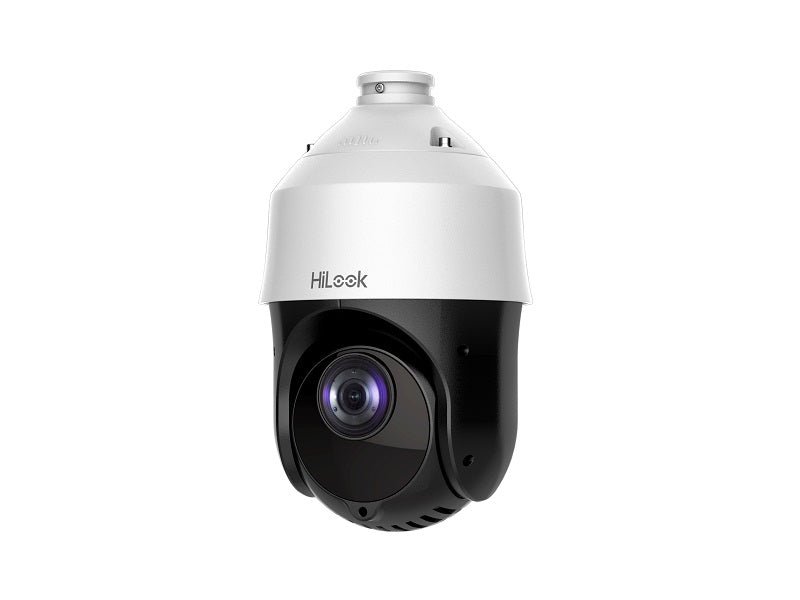

Hilook 2Mp 15X Network Ptz Speed Dome

4-inch 2 MP 15X Powered by DarkFighter IR Network Speed Dome. Four-inch 2 MP camera with pan, tilt and zoom (15x) ability.

Key features

• Efficient H.265+ compression technology to save bandwidth and storage
• Clear imaging against strong back light due to 120 dB true WDR technology
• Excellent night-time performance with up to 100 m enhanced IR
• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR
• Shutter Speed
• Day & Night
• IR Cut Filter
• Zoom
• Focal Length
• FOV
• Focus
• Auto, semi-auto, manual
• Zoom Speed
• Approx. 2.4 s (optical lens, wide-tele)
• Illuminator
• Supplement Light Type
• IR
• Supplement Light Range
• Smart Supplement Light
• Yes
• PTZ
• Movement Range (Pan)
• Movement Range (Tilt)
• Pan Speed
• Configurable, from 0.1`b0/s to 80`b0/s, Preset Speed: 80`b0/s
• Tilt Speed
• Proportional Pan
• Presets
• Preset Freezing
• Patrol Scan
• 8 patrols, up to 32 presets for each patrol
• Pattern Scan
• 4 pattern scans, record time over 10 minutes for each scan
• Park Action
• Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
• Scheduled Task
• Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
• Main Stream
• 50Hz: 25fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720),
• 60Hz: 30fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720)
• Sub-Stream
• 50Hz: 25fps (704 `d7 576, 640 `d7 480, 352 `d7 288),
• 60Hz: 30fps (704 `d7 480, 640 `d7 480, 352 `d7 240)
• Third Stream
• 50Hz: 25fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720, 704 `d7 576, 640 `d7 480, 352 `d7 288),
• 60Hz: 30fps (1920 `d7 1080, 1280 `d7 960, 1280 `d7 720, 704 `d7 480, 640 `d7 480, 352 `d7 240)
• Baseline Profile/Main Profile/High Profile
• Main Profile
• Scalable Video Coding (SVC)
• Region of Interest (ROI)
• Main stream, sub-stream and third stream respectively support four fixed areas
• Protocols
• IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
• Simultaneous Live View
• API
• Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform;Open Network Video Interface, ISAPI, SDK, ISUP
• User/Host
• Up to 32 users. 3 levels: Administrator, Operator and User
• Security
• User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
• NAS (NPS, SMB/ cips), ANR
• Client
• Web Browser
• IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51;IE10-11, Chrome 57+, Firefox 52+, Safari 12+
• Image
• Image Settings
• Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Wide Dynamic Range (WDR)
• Defog
• Digital defog
• Image Stabilization
• EIS;No
• Image Enhancement
• Privacy Mask
• Regional Focus
• Regional Exposure
• 1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3 at, class4)
• Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
• Event
• Basic Event
• Motion Detection, Video Tampering Detection, Exception Detection
• Smart Event
• Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection
• 12 VDC, 2.0 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A, class4
• `d8 165.9 mm `d7 290 mm (`d8 6.53" `d7 11.42")
• Approx. 2.5 kg (5.51 lb)
• 30 `b0C to 65 `b0C (-22 `b0F to 149 `b0F). Humidity 90% or less (non-condensing)
• Approval
• EMC
• Ce-emc (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
• Safety
• Protection
• IP67 (IEC 60529-2013), 4000V Lightning Protection, Surge Protection and Voltage Transient Protection

Specifications

• Ptz-n4215i-de(h)
• Water and dust resistant (IP67)
• 1/2.8" progressive scan CMOS
• 1920 `d7 1080
• 1/1 s to 1/30,000 s
• 15x optical, 16x digital
• Lens
• 5 mm to 75 mm, 15`d7 optical
• Horizontal field of view: 53.8`b0 to 4.0`b0 (wide-tele),
• Vertical field of view: 31.9`b0 to 2.3`b0 (wide-tele),
• Diagonal field of view: 60.4`b0 to 4.6`b0(wide-tele)
• Aperture
• F1.6 to F3.0
• Up to 100 m
• 360`b0 endless
• From -15`b0 to 90`b0 (Auto-flip)
• 300
• Main Stream: H.265+/H.265/H.264+/H.264,
• Sub-Stream: H.265/H.264/MJPEG,
• Third Stream: H.265/H.264/MJPEG
• 32 Kbps to 16384 Kbps
• H.264 Type
• H.265 Type
• H.264 and H.265 encoding
• Up to 20 channels
• iVMS-4200, HiLookVision
• 120 dB
• BLC, HLC, 3D DNR
• 24 programmable privacy masks
• Max.:18 W (IR Max.6 W)
• Material
• ADC 12, PC+10% GF
• FCC (47 CFR Part 15, Subpart B);
• RCM (as/nzs cispr 32: 2015);
• IC (ICES-003: Issue 7);
• KC (KN 32: 2015, KN 35: 2015)
• UL (UL 62368-1)
• CB (IEC 62368-1:2014+A11);
• Ce-lvd (EN 62368-1:2014+A11:2017),
• BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005);
• LOA (iec/en 60950-1)
• Ce-rohs (2011/65/EU);
• Weee (2012/19/EU);
• Reach (Regulation (EC) No 1907/2006)
