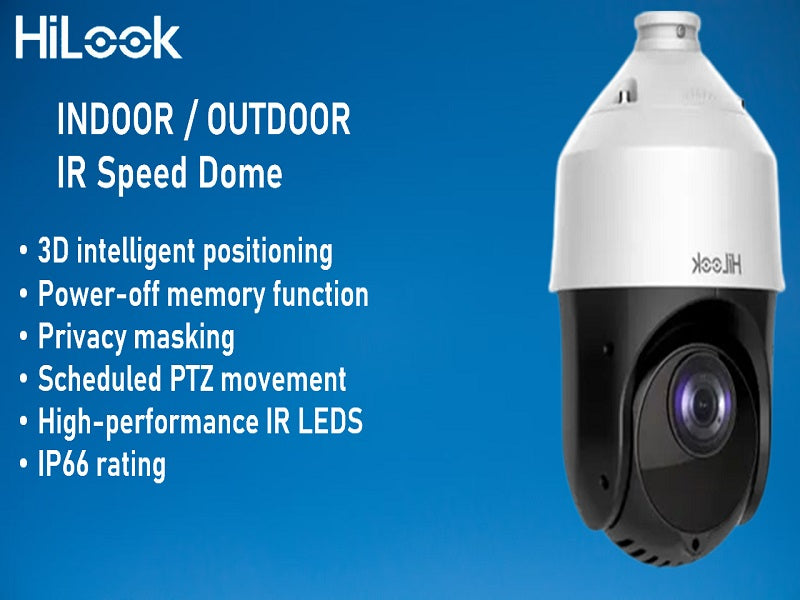

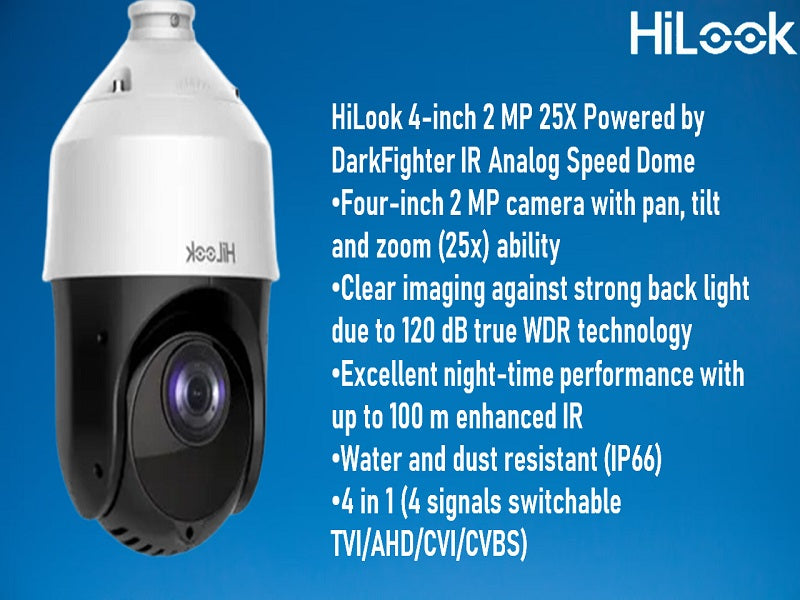

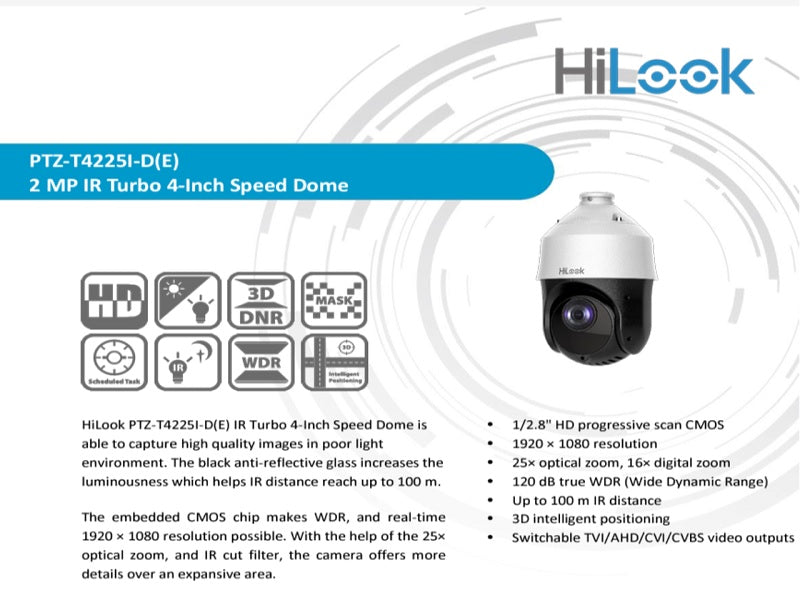

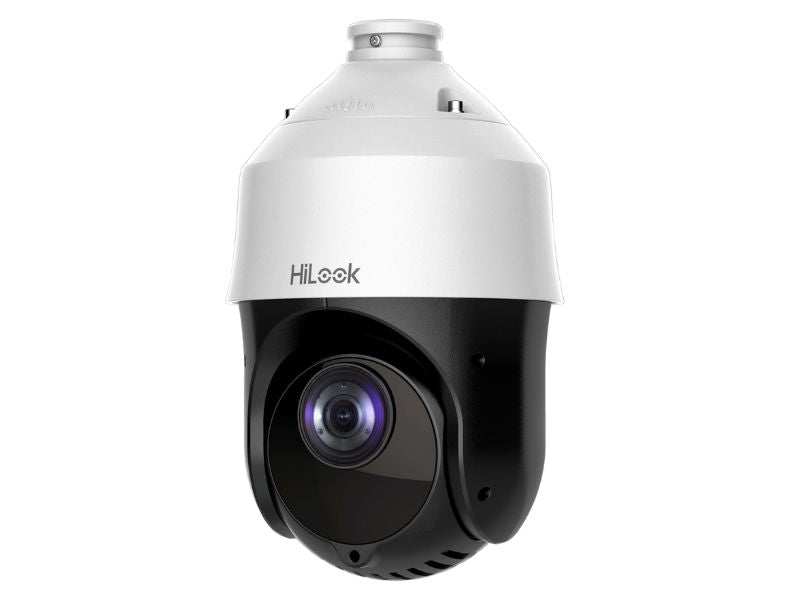

Hilook 2Mp 25X Analog Ptz Speed Dome

4-inch 2 MP 25X Powered by Dark Fighter IR Analog Speed Dome. Four-inch 2 MP camera with pan, tilt and zoom (25x) ability.

Key features

• Clear imaging against strong back light due to 120 dB true WDR technology
• Excellent night-time performance with up to 100 m enhanced IR
• Model PTZ-T4225I-D(E) Image Sensor 1/2.8" progressive scan CMOS Max. Image Resolution 1920 `d7 1080 Frame Rate 50Hz: 25fps @(1920 `d7 1080) 60Hz: 30fps @(1920 `d7 1080) Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR White Balance Auto/Hutto/Manual/ATW/Indoor/Outdoor AGC Auto/Manual DNR 3D DNR WDR ≥ 120 dB Shutter Time PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s Day & Night IR cut filter Digital Zoom 16 `d7 Privacy Mask 8 programmable privacy masks BLC (Backlight Compensation) Yes HLC (highlight Compensation) Yes EIS (Electric Image Stabilization) Yes Reginal Focus Yes
• Focus Mode Auto/Semiauto/Manual Focal Length 4.8 mm to 120 mm, 25 `d7 Optical Aperture Range F 1.6 to F 3.5 Horizontal Field of View 57.6`b0 to 2.5`b0 (wide to tele) Min. Working Distance 10 mm to 1500 mm (wide to tele) Zoom Speed Approx. 3.2 s (optical, wide to tele)
• Pan and Tilt
• Pan Range 360`b0 endless Pan Speed Pan manual speed: 0.1`b0 to 80`b0/s Pan preset speed: 80`b0/s Tilt Range -15`b0 to 90`b0 (auto flip) Tilt Speed Tilt manual speed: 0.1`b0 to 80`b0/s Tilt preset speed: 80`b0/s Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples Presets 256 Patrol 10 patrols, up to 32 presets per patrol Pattern 5 patterns, with the total recording time no less than 10 minutes Power-off Memory Yes Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None PTZ Position Display ON/OFF Preset Freezing Yes Scheduled Task Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
• Infrared
• IR Intensity Automatically adjusted depending on the zoom ratio
• Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) RS-485 Interface Half-duplex mode Self-adaptive HIKVISION, Pleco-P, Pleco-D protocol UTC function UTC protocol (or HIKVISION-C protocol in previous DVR)
• Menu Language English Power 12 VDC Max.20 W (IR: 7 W) Working Temperature -30`b0 C to 65`b0 C (-22`b0 F to 149`b0 F) Working Humidity 90% or less Protection Level IP66 standard (outdoor dome) TVS 4,000 V lightning protection, surge protection and voltage transient protection Mounting Various mounting modes optional Dimension `d8 165.9 mm `d7 290 mm (`d8 6.5" `d7 11.4") Weight (approx.) 2 kg (4.41 Ib.)

Specifications

• Ptz-t4225i-d
• Water and dust resistant (IP66)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
• Lens
• IR Distance Up to 100 m
• Input/output
