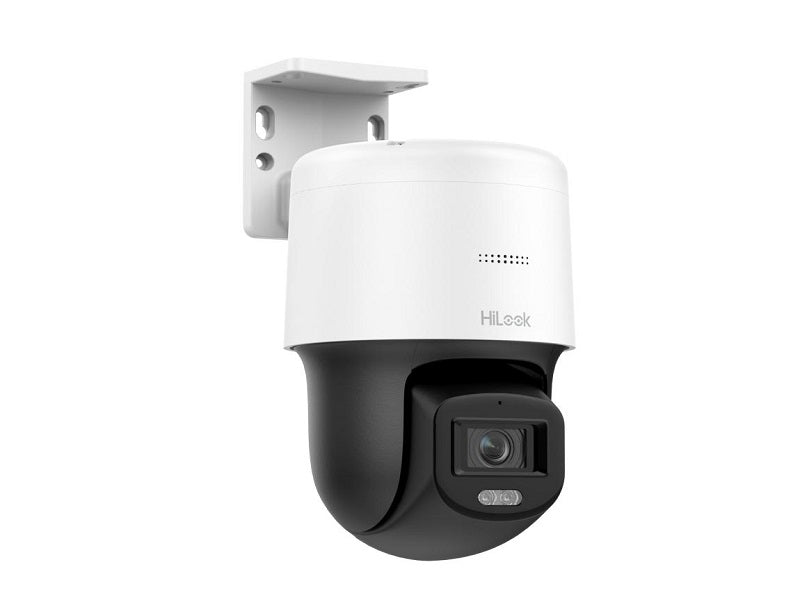

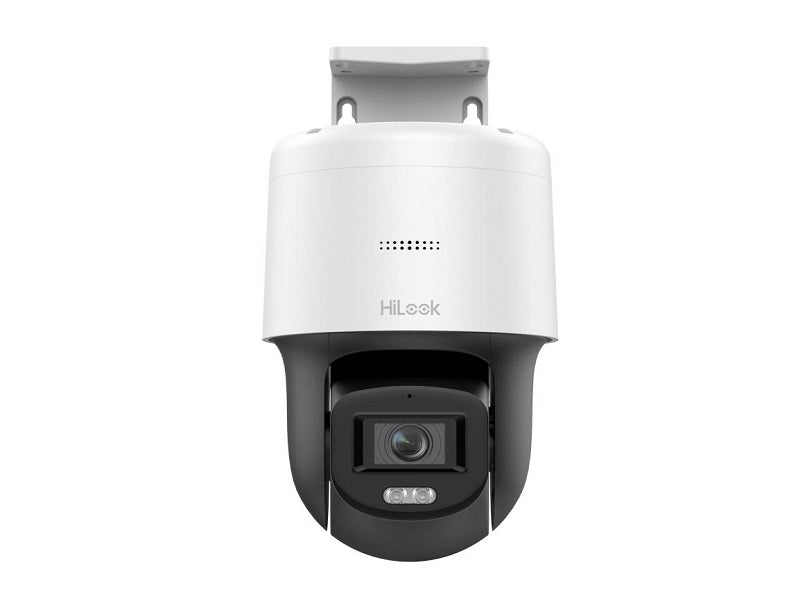

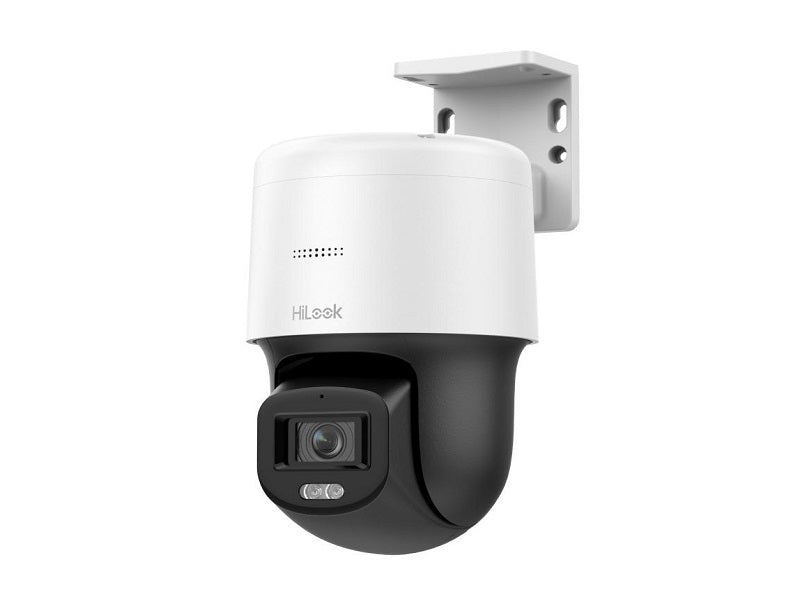

Hilook 2Mp Ip Mini Ptz Camera

2-inch 2 MP Fixed Powered by DarkFighter IR Network Speed Dome. Clear imaging against strong back light due to DWDR technology.

Key features

• 3D DNR technology delivers clean and sharp images
• HiLookVision cloud service and APP for remote management and views of devices
• Built-in microphone and speakerfor real-time audio security
• Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with Light
• Focal Length
• FOV
• 2.8 mm, horizontal FOV 106.1`b0, vertical FOV 55.8`b0, diagonal FOV 126.5`b0
• 4 mm, horizontal FOV 83.6`b0, vertical FOV 44.6`b0, diagonal FOV 99.1`b0
• Illuminator
• Supplement Light Type
• White Light
• Supplement Light Range
• Smart Supplement Light
• Yes
• PTZ
• Movement Range (Pan)
• Movement Range (Tilt)
• Pan Speed
• Tilt Speed
• Baseline Profile, Main Profile, High Profile
• Main Profile
• Main Stream
• 50 Hz: 25 fps (1920 `d7 1080, 1280 `d7 720)
• 60 Hz: 30 fps (1920 `d7 1080, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 25 fps (640 `d7 480, 640 `d7 360)
• 60 Hz: 30 fps (640 `d7 480, 640 `d7 360)
• 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
• Protocols
• IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
• API
• Open Network Video Interface, ISAPI, SDK
• Image
• Image Settings
• Saturation, brightness, contrast, sharpness
• Wide Dynamic Range (WDR)
• Digital WDR
• Image Enhancement
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in Microphone
• Reset
• Event
• Basic Event
• Motion detection, video tampering alarm, exception
• Alarm Linkage
• Upload to FTP, notify surveillance center, send email, upload to memory card
• With supplement light on: -30 ℃ to 40 ℃. Humidity 95% or less (non-condensing)
• With supplement light off: -30 ℃ to 50 ℃. Humidity 95% or less (non-condensing)
• Mirror, password protection, watermark
• 12 VDC `b1 25%, 0.75 A, max. 9 W, `d85.5 mm coaxial power plug, reverse polarity protection
• PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, max. 10 W
• Camera dimension: 162 mm `d7 120 mm `d7 234.2 mm (6.4" `d7 4.7" `d7 9.2")
• Package dimension: 205 mm `d7 167 mm `d7 289 mm (8.1 `d7 6.6" `d7 11.4")"
• Approval
• EMC
• Ce-emc: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014;
• Protection

Specifications

• Ptz-n2c200c-de(f1)
• High quality imaging with 2 MP resolution
• Water and dust resistant IP66
• 1/2.7" Progressive Scan CMOS
• 1920 `d7 1080
• Lens
• 2.8 mm/4 mm
• Aperture
• F1.0
• White Light Distance: up to 30 m
• 0`b0 to 340`b0
• 5`b0 to 105`b0
• Pan speed: configurable from 4`b0 to 21`b0/s
• Tilt speed: configurable from 4`b0 to 19`b0/s
• H.265, H.264, mjpeg
• H.264 Type
• H.265 Type
• 32 Kbps to 8 Mbps
• G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM
• 8 kHz/16 kHz
• BLC, HLC, 3D DNR
• Camera weight: 780 g (1.7 lb.)
• With package weight: 1280 g (2.8 lb.)
• FCC: 47 CFR Part 15, Subpart B;
• IC: ICES-003: Issue 7
• IP66 (IEC 60529-2013)
