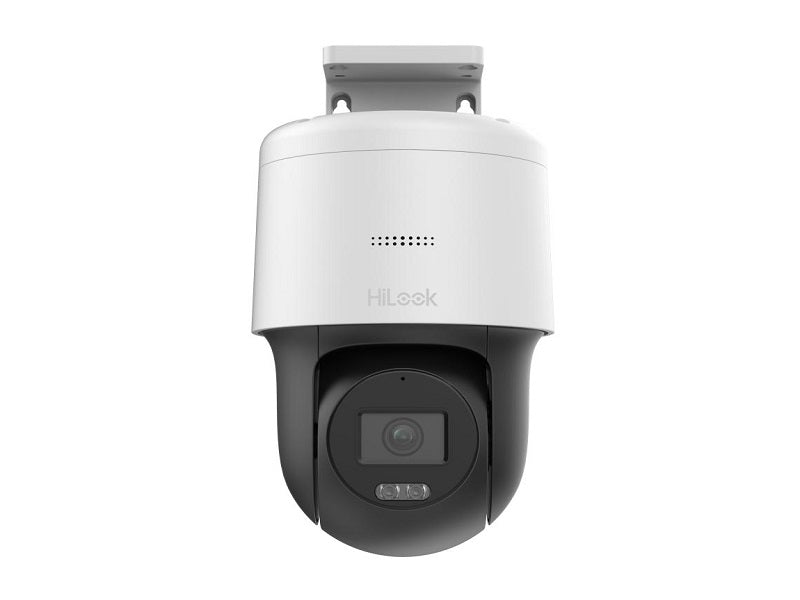

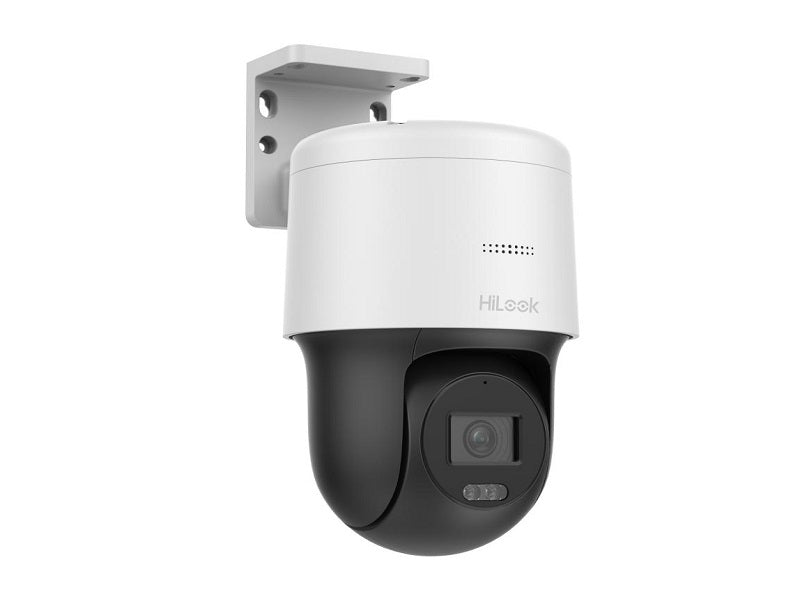

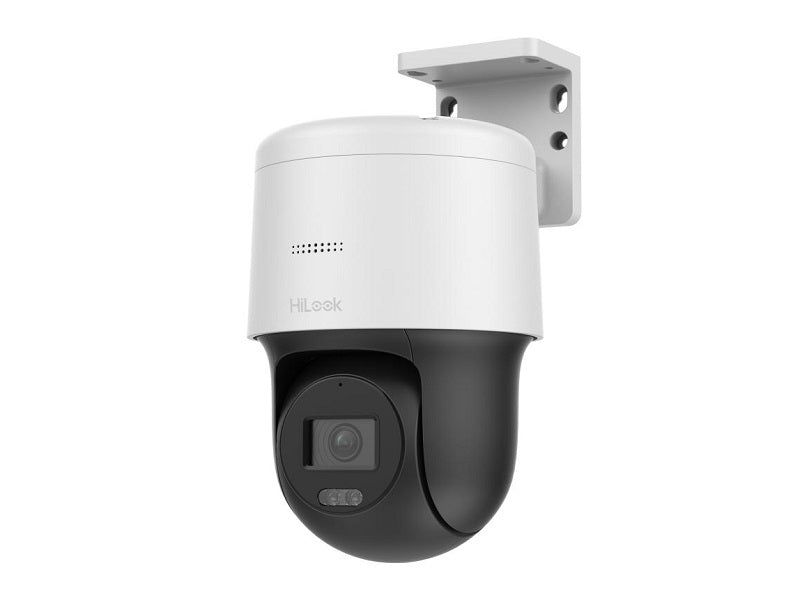

Hilook 2Mp Ip Mini Ptz Camera

2-inch 2 MP 0X Powered by DarkFighter IR Network Speed Dome. Hik-Connect cloud service and APP for remote management and views of devices.

Key features

• Support Human Detection and Auto-tracking Lite
• Built-in microphone and speaker for real-time audio security
• Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.01 Lux @(F1.2`a3`acAGC ON), B/W: 0 Lux with IR
• Focal Length
• FOV
• 2.8 mm, horizontal FOV 111.4`b0, vertical FOV 59.1`b0, diagonal FOV 133.6`b0
• 4 mm, horizontal FOV 91.5`b0, vertical FOV 46.1`b0, diagonal FOV 109.8`b0
• Illuminator
• Supplement Light Type
• IR & White Light
• Supplement Light Range
• Smart Supplement Light
• Yes
• IR Wavelength
• PTZ
• Movement Range (Pan)
• Movement Range (Tilt)
• Pan Speed
• Tilt Speed
• Baseline Profile, Main Profile, High Profile
• Main Profile
• Main Stream
• 50 Hz: 25 fps (1920 `d7 1080, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 25 fps (640 `d7 480, 640 `d7 360)
• 16 Kbps (G.722.1)/64 Kbps (G.711)/32 ~ 192 Kbps (MP2L2)/16 Kbps (G.726)/16 ~ 64 Kbps (AAC)-LC/8 ~ 48 Kbps (PCM)
• Protocols
• IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
• API
• Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• Image
• Image Settings
• Saturation, brightness, contrast, sharpness
• Wide Dynamic Range (WDR)
• Digital WDR
• Image Enhancement
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in Microphone
• Reset
• Event
• Basic Event
• Motion detection
• Alarm Linkage
• Upload to FTP, notify surveillance center, send email, upload to memory card
• With supplement light on: -30 ℃ to 40 ℃. Humidity 95% or less (non-condensing)
• With supplement light off: -30 ℃ to 50 ℃. Humidity 95% or less (non-condensing)
• Mirror, password protection, watermark
• 12 VDC `b1 25%, 1 A, max. 12 W, `d85.5 mm coaxial power plug, reverse polarity protection
• PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, max. 12 W
• Camera dimension: 162 mm `d7 120 mm `d7 234.2 mm (6.4" `d7 4.7" `d7 9.2")
• Package dimension: 205 mm `d7 167 mm `d7 289 mm (8.1 `d7 6.6" `d7 11.4")"
• Approval
• EMC
• Ce-emc (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
• Protection

Specifications

• Ptz-n2c200m-de
• High quality imaging with 2 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Water and dust resistant IP66
• 1/2.7″ Progressive Scan CMOS
• 1920 `d7 1080
• Lens
• 2.8 mm/ 4 mm
• Aperture
• F1.6
• White Light Distance: up to 30 m
• IR Distance: up to 30 m
• 850 nm
• 0`b0 to 340`b0
• 5`b0 to 105`b0
• Pan speed: configurable from 4`b0 to 21`b0/s
• Tilt speed: configurable from 4`b0 to 19`b0/s
• H.265, H.264, mjpeg
• H.264 Type
• H.265 Type
• 32 Kbps to 8 Mbps
• G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM
• 8 kHz/16 kHz
• BLC, HLC, 3D DNR
• Camera weight: 600g(1.32lb.)
• With package weight: 900g(2.0lb.)
• FCC (47 CFR Part 15, Subpart B);
• IC (ICES-003: Issue 6, 2016)
• IP66
