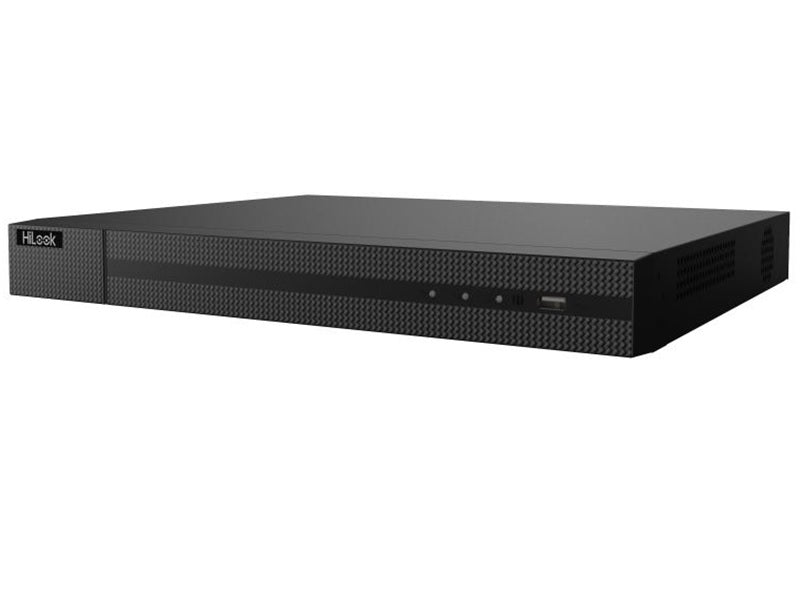

Hilook 32Ch 1080P Lite 1U Dvr 232G

l Deep learning based human and vehicle targets classification of. l Up to 18-ch IP camera inputs (up to 5 MP).

Key features

• Key Feature
• l Audio via coaxial cable
• l Up to 1080p Lite@15 fps encoding capability
• l Max. 1200 m for 720p HDTVI signal
• Smart Function
• Compression and Recording
• l H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs
• l Support 1080p Lite of all channels. When 1080p Lite is on, the image effect is similar with 1080p
• l 2 SATA interfaces (up to 10 TB capacity)
• l Smart search for efficient playback
• l HiLookVision & DDNS (Dynamic Domain Name System) for easy network manag
• Human/Vehicle Analysis
• Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
• it can classify human and vehicle, and extremely reduce false alarms caused by objects
• like leaves and lights;
• Quick search by object or event type is supported;
• Recording
• Frame Rate
• Dual-stream Nonsupport
• Stream Type Video, Video & Audio
• BNC interface (1.0 Vp-p, 75 `d9), supporting coaxitron connection
• CVBS Input PAL/NTSC
• VGA Output 1-ch, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz
• HDMI Output 1-ch, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz
• Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 K'd9) (using the first audio input)
• TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,
• ONVIF, EHome
• Network Interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
• Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Specifications

• Dvr-232g-m2
• Motion Detection 2.0
• l H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
• l Deep learning-based motion detection 2.0
• Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution 1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
• For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps
• For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps
• For standard definition stream access: WD1/4CIF/VGA/CIF@25fps
• Sub-stream: CIF/QVGA@15fps
• Video Bitrate 32 Kbps to 4 Mbps
• Audio Compression G.711u
• Audio Bitrate 64 Kbps
• 2-ch (up to 18-ch)
• Up to 5 MP resolution
• Support H.265+/H.265/H.264+/H.264 IP cameras
• 32-ch
• HDTVI Input 1080p25, 1080p30, 720p25, 720p30
• AHD Input 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input 1080p25, 1080p30, 720p25, 720p30
• 1-ch, RCA (2.0 Vp-p, 1 K'd9)
• 32-ch via coaxial cable
• Audio Output 1-ch, RCA (Linear, 1 K'd9)
• Synchronous playback 16-ch
• Remote Connection 128
• Total Bandwidth 128 Mbps
• Serial Interface RS-485 (half-duplex)
• SATA 2 SATA interface
• Capacity Up to 10 TB capacity for each disk
• Front panel: 1 `d7 USB 2.0
• Rear panel: 1 `d7 USB 3.0
• Power Supply 12 VDC, 3.33 A
• Consumption ≤ 18 W (without HDD)
