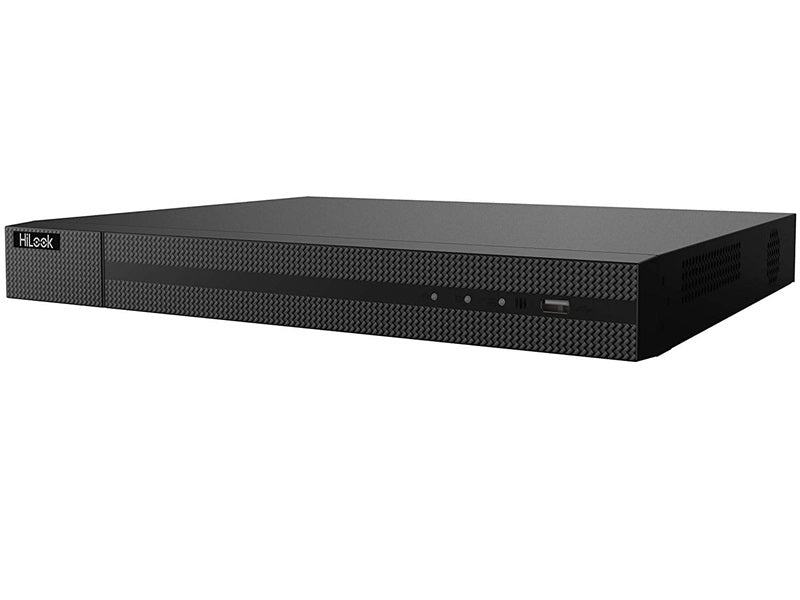

Hilook 32Ch 1080P Lite 1U Dvr 232Q

Up to 40 network cameras can be connected. H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs.

Key features

• Deep learning-based motion detection 2.0 for all analog channels
• Encoding ability up to 1080p @ 15 fps
• Compression and Recording
• Full channel recording at up to 4 MP lite resolution
• Smart search for efficient playback
• Smart Function
• Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
• HiLookVision & DDNS (Dynamic Domain Name System) for easy network management
• Max. 96 Mbps incoming bandwidth and output bandwidth limit configurable
• Human/Vehicle Analysis
• Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
• Quick search by object or event type is supported;
• Recording
• Encoding Resolution
• 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
• Frame Rate
• For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
• For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
• 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
• Dual-Stream
• Support
• Stream Type
• 8-ch (up to 40-ch), each up to 4 Mbps,
• BNC interface (1.0 Vp-p, 75 `d9), supporting coaxitron connection
• 3K(2960 x 1665)@20 fps, 5 MP(2560 `d7 1944)@20 fps, 4 MP(2560 `d7 1440)@30 fps, 4 MP(2560 `d7 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• 5 MP(2560 `d7 1944)@20 fps,4 MP(2560 `d7 1440)@30 fps, 4 MP(2560 `d7 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• Pal/ntsc
• 1-ch, 4K (3840 `d7 2160)/30Hz, 2K (2560 `d7 1440)/60Hz, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz
• 1-ch, 1920 `d7 1080/60 Hz, 1280 `d7 1024/60 Hz, 1280 `d7 720/60 Hz
• 1-ch, RCA (2.0 Vp-p, 1 K'd9)`a3`ac32-ch via coaxial cable
• 1-ch, RCA (2.0 Vp-p, 1 K'd9) (using the first audio input)
• Synchronous Playback
• Remote Connection
• TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Total Bandwidth
• Sata
• Up to 10 TB capacity for each disk
• Alarm In/Out
• N/A (optional to support)
• Consumption

Specifications

• Dvr-232q-m2
• 32-ch 1080p 1U H.265 DVR
• Efficient H.265 pro+ compression technology
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• 2 SATA interfaces
• Motion Detection 2.0
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
• For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
• For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
• For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
• WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
• 32 Kbps to 10 Mbps
• G.711u
• 64 Kbps
• 2-ch (up to 34-ch)
• Up to 6 MP resolution,
• Support H.265+/H.265/H.264+/H.264 IP cameras
• 32-ch
• 1-ch, BNC (1.0 Vp-p, 75 `d9),
• resolution: PAL: 704 `d7 576, NTSC: 704 `d7 480
• 1-ch, RCA (Linear, 1 K'd9)
• 16-ch
• 128
• 128 Mbps
• 1,RJ45 10/100/1000 Mbps self-adaptive
• Capacity
• RS-485 (half-duplex)
• Front panel: 1 `d7 USB 2.0
• Rear panel: 1 `d7 USB 3.0
• 12 VDC, 3.3 A
• ≤ 40 W
