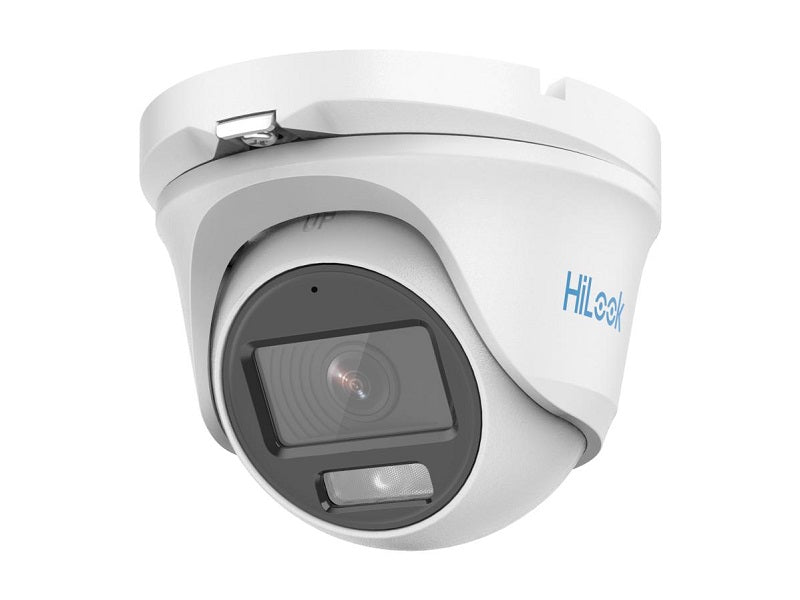

Hilook 3K ColorVu Dome Camera 3.6mm

Up to 20 m white light distance for bright night imaging. TVI: 3K @ 20 fps, 4 MP @ 25 fps/30 fps, 1080p @ 25 fps/30 fps.

Key features

• High quality imaging with 3K, 2960 `d7 1665 resolution
• 2.8 mm and 3.6 mm fixed focal lens
• High quality audio with audio over coaxial cable
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Image Sensor
• Pal/ntsc
• Frame Rate
• Min. Illumination
• 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time
• PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Field of View
• 2.8 mm, horizontal FOV: 113`b0, vertical FOV: 62`b0, diagonal FOV: 137`b0
• 3.6 mm, horizontal FOV: 88`b0, vertical FOV: 50`b0, diagonal FOV: 108`b0
• Light Alarm
• Solid Light Alarm (White Light)
• Day & Night
• WDR (Wide Dynamic Range)
• Digital WDR
• Angle Adjustment
• Pan: 0`b0 to 360`b0, Tilt: 0`b0 to 75`b0, Rotation: 0`b0 to 360`b0
• Image
• White Light
• Auto/Off
• Image Mode
• Std/high-sat/highlight
• AGC
• Yes
• Day/Night Mode
• White Balance
• Auto/Manual
• AE (Auto Exposure) Mode
• DWDR;BLC;HLC;Global
• Noise Reduction
• Language
• English
• Function
• Lighting Mode
• Switchable TVI/AHD/CVI/CVBS
• 40`b0C to 60`b0C (-40`b0F to140`b0F), Humidity: 90% or less (non-condensing)
• You are recommended to use one power adapter to supply the power for one camera.
• Consumption
• Max. 2.9 W
• Protection Level
• Metal
• White Light Range
• 82.65 mm `d7 91.0 mm `d7 69.16 mm (3.25" `d73.58" `d72.72")
• Approx. 243g (0.54 lb.)

Specifications

• 3K ColorVu Audio Fixed Turret Camera
• 24/7 color imaging with F1.0 aperture
• Water and dust resistant (IP66)
• 3K cmos
• Resolution
• 2960 (H) `d7 1665 (V)
• AHD: 4 MP @ 25 fps/30 fps
• CVI: 4 MP @ 25 fps/30 fps
• Cvbs: pal/ntsc
• Lens
• 2.8 mm/3.6 mm fixed focal lens
• Lens Mount
• M12
• 24/7 Color Imaging
• Color
• 2D DNR
• Brightness;Sharpness;Anti-Banding
• 12 VDC'b125%
• IP66
• Material
• Up to 20 m
