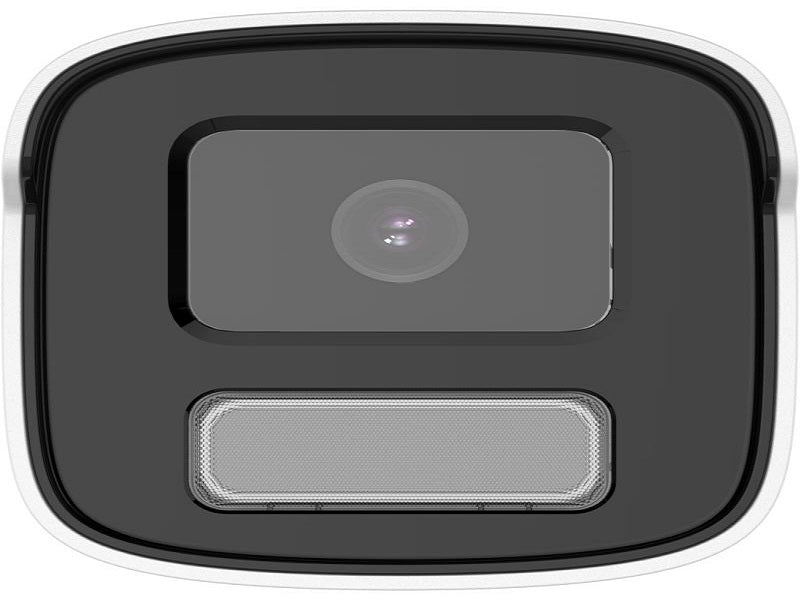

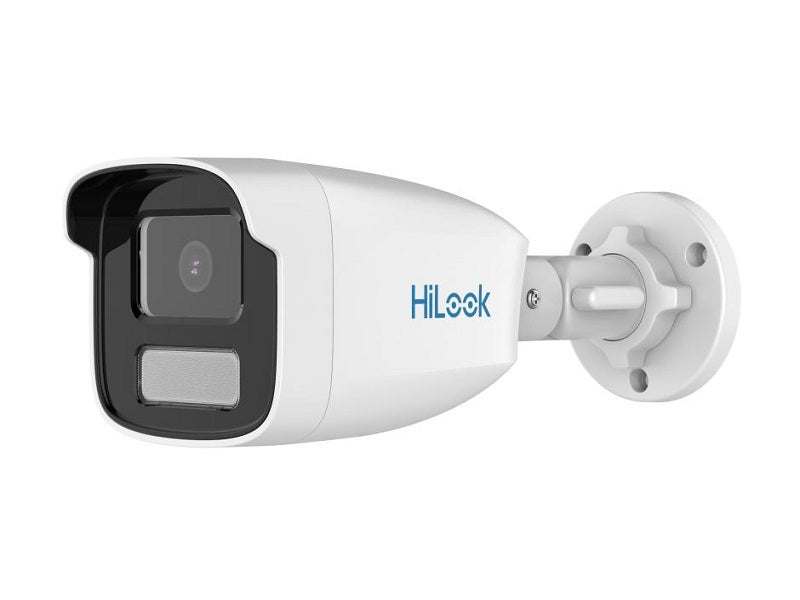

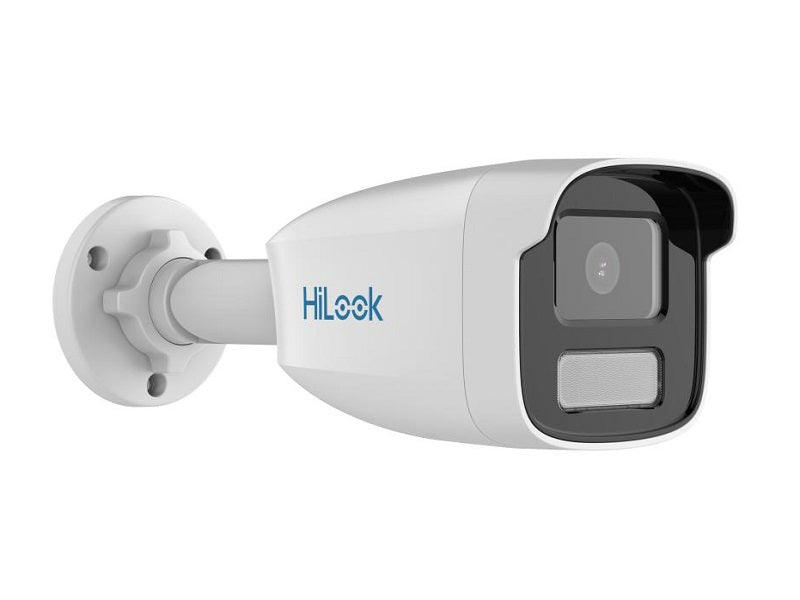

Hilook IPC-B449HA ColorVu 4MP IP Bullet Camera - 4mm, 50m White Light, PoE, IP67

Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light. Pan: 0`b0 to 360`b0,tilt: 0`b0 to 180`b0,rotate: 0`b0 to 360`b0.

Key features

• 4 MP ColorVu MD 2.0 Fixed Bullet Network Camera
• Support Human and Vehicle Detection
• Image Sensor
• Max. Resolution
• Min. Illumination
• Shutter Time
• Day & Night
• Angle Adjustment
• Fixed focal lens, 4 and 6 mm optional
• Focal Length & FOV
• 4 mm, horizontal FOV: 75`b0, vertical FOV: 40`b0, diagonal FOV: 89`b0
• 6 mm, horizontal FOV: 49`b0, vertical FOV: 27`b0, diagonal FOV: 57`b0
• Iris Type
• Fixed
• Dori
• 4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m
• 6 mm, D: 120 m, O: 47 m, R: 24 m, I: 12 m
• Illuminator
• Supplement Light Type
• White Light
• Supplement Light Range
• Smart Supplement Light
• Yes
• Main Stream
• 25 fps (1920 `d7 1080, 1280 `d7 720)
• 24 fps (1920 `d7 1080, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 25 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 24 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• Baseline Profile,Main Profile,High Profile
• Main Profile
• Bit Rate Control
• Cbr,vbr
• Region of Interest (ROI)
• Protocols
• Tcp/ip, icmp, dhcp, DNS, http, RTP, rtsp, NTP, igmp, ipv6, UDP, qos, FTP, smtp
• Simultaneous Live View
• API
• Open Network Video Interface (Profile S, Profile T),ISAPI,SDK
• User/Host
• Security
• Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Client
• Web Browser
• Image
• Wide Dynamic Range (WDR)
• SNR
• Day/Night Switch
• Day,Night,Auto,Schedule
• Image Enhancement
• Image Settings
• Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Privacy Mask
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Event
• Basic Event
• Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Linkage
• Upload to FTP, send email, notify surveillance center, trigger capture
• 12 VDC `b1 25%, 0.4 A, max. 5 W,`d85.5 mm coaxial power plug,
• PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
• 83.7 mm `d7 80.7 mm `d7 206.6 mm (3.3" `d7 3.2" `d7 8.1")
• 260 mm `d7 125 mm `d7 125 mm (10.2" `d7 4.9" `d7 4.9")
• Approx. 395 g (0.9 lb.)
• Approx. 624 g (1.4 lb.)
• 30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions
• Language
• English, Ukrainian
• Heartbeat,anti-banding,mirror,password protection,password reset via email
• Approval
• EMC
• Ce-emc: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
• Safety
• Protection

Specifications

• Ipc-b449ha-4mm
• High quality imaging with 4 MP resolution
• 24/7 colorful imaging
• Water and dust resistant (IP67)
• Efficient H.265+ compression technology
• 1/3" Progressive Scan CMOS
• 2560 `d7 1440
• 1/3 s to 1/100,000 s
• 24/7 color imaging
• Lens
• Lens Type
• Lens Mount
• M12
• Aperture
• F1.0
• Depth of Field
• 4 mm: 2.7 m to ∞
• 6 mm: 6 m to ∞
• Up to 50 m
• 50 Hz:
• 20 fps (2560 `d7 1440)
• 60 Hz:
• Main stream: H.265+/H.265/H.264+/H.264,
• Sub-stream: H.265/H.264/MJPEG
• 32 Kbps to 8 Mbps
• H.264 Type
• H.265 Type
• 1 fixed region(s) for main stream
• Up to 6 channels
• Up to 32 users
• 3 user levels: administrator, operator, and user
• iVMS-4200,HiLookVision
• Plug-in required live view: IE 10, IE 11,
• Local service: Chrome 57.0+, Firefox 52.0+
• 120 dB
• ≥ 52 dB
• Blc,hlc,3d DNR
• 4 programmable polygon privacy masks
• Material
• Front cover: metal, body: plastic, bracket: metal
• FCC: 47 CFR Part 15, Subpart B,
• RCM: as/nzs cispr 32: 2015,
• KC: KN32: 2015, KN35: 2015
• CB: IEC 62368-1: 2014+A11,
• Ce-lvd: EN 62368-1: 2014/A11: 2017
• Ce-rohs: 2011/65/EU,
• Weee: 2012/19/EU,
• Reach: Regulation (EC) No 1907/2006
• IP67: IEC 60529-2013
