Hilook 4Ch Up

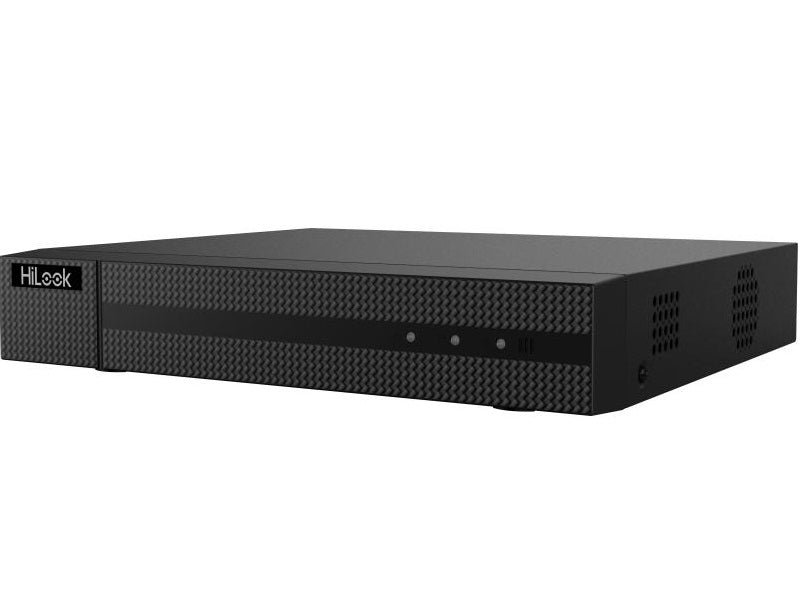

Hilook 4Ch Up To 8Mp Dvr 204U
Hilook 4Ch Up To 8Mp Dvr 204U

Hilook 4Ch Up To 8Mp Dvr 204U

HILOOK
R 1,999
Estimated delivery 2–4 working days
In stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 1,999

Description

Deep learning based human and vehicle targets classification of Motion Detection 2.0. Up to 6-ch IP camera inputs (up to 8 MP).

Key features

  • Human/Vehicle Analysis
  • Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
  • Quick search by object or event type is supported;
  • 4-ch (up to 8-ch), each up to 4 Mbps
  • BNC interface (1.0 Vp-p, 75 `d9), supporting coaxitron connection
  • 8 MP(3840 `d7 2160)@15 fps, 8 MP(3840 `d7 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 `d7 1944)@20 fps, 5 MP(2560 `d7 1944)@12 fps, 4 MP(2560 `d7 1440)@30 fps, 4 MP(2560 `d7 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
  • 5 MP(2560 `d7 1944)@20 fps, 5 MP(2560 `d7 1944)@12 fps, 4 MP(2560 `d7 1440)@30 fps, 4 MP(2560 `d7 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
  • 8 MP(3840 `d7 2160)@15 fps, 8 MP(3840 `d7 2160)@12 fps, 5 MP(2592 `d7 1944)@20 fps, 4 MP(2560 `d7 1440)@30 fps, 4 MP(2560 `d7 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
  • Pal/ntsc
  • 1-ch, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz
  • 1-ch, RCA (2.0 Vp-p, 1 K'd9) (using the first audio input)
  • Synchronous Playback
  • Recording
  • Encoding Resolution
  • Frame Rate
  • 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
  • Dual-stream
  • Support
  • Stream Type
  • Total Bandwidth
  • Remote Connection
  • TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
  • Sata
  • Up to 10 TB capacity for each disk
  • Alarm In/Out
  • N/A
  • Consumption
  • Working Temperature
  • 10 `b0C to +55 `b0C (+14 `b0F to +131 `b0F)
  • Working Humidity
  • 263 `d7 225 `d7 48 mm (10.4 `d7 8.9 `d7 1.9 inch)

Specifications

  • Dvr-204u-m1
  • 4-ch 5 MP 1U H.265 DVR
  • H.265 Pro+/H.265 Pro/H.265 video compression
  • Up to 8 MP@8 fps encoding capability
  • Motion Detection 2.0
  • 2-ch (up to 6-ch)
  • Up to 8 MP resolution
  • Support H.265+/H.265/H.264+/H.264 IP cameras
  • 4-ch
  • 1-ch, RCA (2.0 Vp-p, 1 K'd9)
  • 4-ch via coaxial cable
  • 1-ch, RCA (Linear, 1 K'd9)
  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • 8 MP/5 MP/3K/4 MP/3 mp/1080p/720p/wd1/4cif/vga/cif
  • 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
  • WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  • 32 Kbps to 10 Mbps
  • G.711u
  • 64 Kbps
  • 96 Mbps
  • 32
  • 1, RJ45 10M/100M self-adaptive Ethernet interfac
  • 1 SATA interface
  • Capacity
  • 2 `d7 USB 2.0
  • 12 VDC, 1.5 A
  • ≤ 15 W (without HDD)
  • 10% to 90%
  • Dimension (W `d7 D `d7 H)
  • ≤ 1.16 kg (without HDD, 2.6 lb.)

Frequently Bought Together Frequently bought

Product Information

Categories HiLook / Security & Surveillance
Brand Hilook
Model DVR-204U-M1
Channels 4-ch analog + up to 6-ch IP
Max Resolution Up to 8 MP
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
HDMI Output 1-ch, up to 1920 x 1080/60Hz
VGA Output 1-ch, up to 1920 x 1080/60Hz
Storage 1 SATA, up to 10 TB per disk
Network Interface 1 RJ45 10/100M self-adaptive
USB 2 x USB 2.0
Power 12 VDC, 1.5 A
Consumption <= 15 W (without HDD)
Dimensions 263 x 225 x 48 mm
Weight <= 1.16 kg (without HDD)
Barcode 6942160446615
