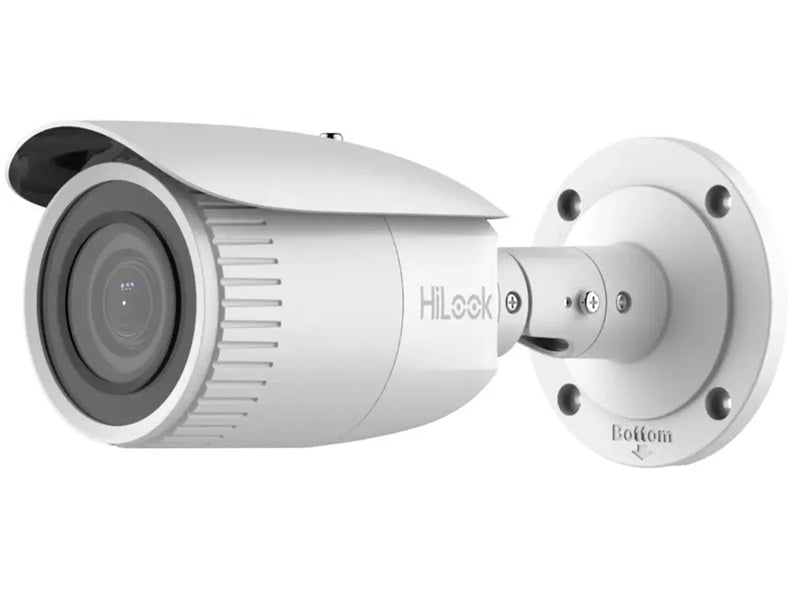

Hilook 4Mp Varifocal Ip Bullet Camera

2.8 to 12 mm motorized varifocal lens for easy installation and monitoring. Clear imaging even with strong back lighting due to 120 dB WDR technology.

Key features

• HD video exir weatherproof varifocal
• 4 MP MD 2.0 Varifocal Bullet Network Camera
• Support Human and Vehicle Detection
• Up to 256 GB SD card slot for storage
• EXIR 2.0: advanced infrared technology with long IR range
• Specification;
• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time
• Day & Night
• IR cut filter
• Angle Adjustment
• Pan: 0`b0 to 360`b0,tilt: 0`b0 to 90`b0,rotate: 0`b0 to 360`b0
• Varifocal lens, motorized lens, 2.8 to 12 mm
• Focal Length & FOV
• 2.8 to 12 mm, horizontal FOV 95.9`b0 to 29.2`b0, vertical FOV 50.6`b0 to 16.4`b0, diagonal FOV
• Iris Type
• Fixed
• Supplement Light Type
• IR
• Supplement Light Range
• IR Wavelength
• Smart Supplement Light
• Yes
• Main Stream
• 25 fps (1920 `d7 1080, 1280 `d7 720)
• 24 fps (1920 `d7 1080, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 25 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 24 fps (1280 `d7 720, 640 `d7 480, 640 `d7 360)
• Baseline Profile,Main Profile,High Profile
• Main Profile
• Region Of Interest (ROI)
• Protocols
• Tcp/ip, icmp, dhcp, DNS, http, RTP, rtsp, NTP, igmp, ipv6, UDP, qos, FTP, smtp
• Simultaneous Live View
• API
• Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
• User/Host
• Client
• Security
• Password protection, complicated password, watermark, basic and digest authentication for
• HTTP, WSSE and digest authentication for Open Network Video Interface, security audit
• log, host authentication (MAC address)
• Web Browser
• Image Settings
• Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by
• client software or web browser
• Day/Night Switch
• Auto,Schedule,Day,Night
• Wide Dynamic Range (WDR)
• Image Enhancement
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Reset Key
• Basic Event
• Motion detection (support alarm triggering by specified target types (human and
• vehicle)),video tampering alarm
• Linkage
• Upload to FTP/memory card,notify surveillance center,send email,trigger recording,trigger
• capture
• 12 VDC `b1 25%, 0.9 A, max. 11 W,`d85.5 mm coaxial power plug,
• PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
• Metal

Specifications

• High quality imaging with 4 MP resolution
• Water and dust resistant (IP67)
• Efficient H.265+ compression technology
• 1/3" Progressive Scan CMOS
• 2560 `d7 1440
• 1/3 s to 1/100,000 s
• Lens Type
• 114.7`b0 to 33.5`b0
• Lens Mount
• `d814
• Aperture
• F1.6
• Up to 30 m
• 850 nm
• 50 Hz:
• 20 fps (2560 `d7 1440)
• 60 Hz:
• Main stream: H.265+/H.265/H.264+/H.264,
• Sub-stream: H.265/H.264/MJPEG
• 32 Kbps to 8 Mbps
• H.264 Type
• H.265 Type
• 1 fixed region(s) for main stream
• Up to 6 channels
• Up to 32 users
• 3 user levels: administrator, operator, and user
• iVMS-4200,HiLookVision
• Plug-in required live view: IE 10, IE 11,
• Local service: Chrome 57.0+, Firefox 52.0+
• 120 dB
• Blc,hlc,3d DNR
• Material
