Hilook 8Ch 2Mp eDVR 512Gb Bullet Kit

8ch eDVR - 8 x2Mp Bullet - 8 x 20m Cable. Deep learning based human and vehicle targets classification of Motion Detection 2.0.

Key features

• Powered by eSSD technology
• Scene-Adaptive Bitrate Control video compression
• Low power consumption
• Human/Vehicle Analysis
• Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
• Quick search by object or event type is supported;
• Recording
• Encoding Resolution
• Frame Rate
• According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
• Stream Type
• Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
• BNC interface (1.0 Vp-p, 75 `d9), supporting coaxitron connection
• Support
• 1-ch, 1920 d7 1080/60 Hz, 1280d7 1024/60 Hz, 1280 d7 720/60 Hz VGA Output 1-ch, 1920d7 1080/60 Hz, 1280 d7 1024/60 Hz, 1280d7 720/60 Hz
• Synchronous Playback
• Total Bandwidth
• TCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
• Remote Connection
• High quality imaging with 2 MP, 1920 d7 1080 resolution Smart-Hybrid light, optimize your security with flexible lighting options 2.8 mm, 3.6 mm fixed focal lens Up to 20 m IR distance for bright night imaging Up to 20 m white light distance for bright night imaging One port for 4 switchable signals (TVI/AHD/CVI/CVBS) Water and dust resistant (IP66) Image Sensor 2 MP CMOS Max. Resolution 1920 (H)d7 1080 (V)
• Min. Illumination
• 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
• Shutter Time
• PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & Night
• ICR
• Angle Adjustment
• Pan: 0 to 360b0, Tilt: 0 to 75b0, Rotate: 0 to 360b0 Signal System PAL/NTSC Lens Lens Type 2.8 mm, 3.6 mm fixed focal lens Focal Length & FOV 2.8 mm, horizontal FOV: 97b0, vertical FOV: 54b0, diagonal FOV: 113b0
• 3.6 mm, horizontal FOV: 77b0, vertical FOV: 43b0, diagonal FOV: 90`b0
• 1 x 1 way to 8 way cable

Specifications

• 8-ch 1080p Lite 1U H.265 eSSD DVR
• Up to 1080p Lite@15 fps encoding capability
• Motion Detection 2.0
• H.265 Pro/H.265
• 1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
• 1080p Lite/720p/720p Lite/WD1/4CIF@15 fps
• 1080p Lite/720p is 15 fps by default
• CIF/QVGA@15 fps
• G.711u
• 64 Kbps
• 2-ch
• Up to 5 MP resolution
• Support H.265+/H.265 IP cameras
• 8-ch
• 1080p25, 1080p30, 720p25, 720p30
• 8-ch via coaxial cable
• 1-ch via HDMI
• 72 Mbps
• Incoming bandwidth: 8 Mbps
• 32
• 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Capacity
• Built-in 512 GB eSSD (480 GB available)
• Lens Mount
• M12

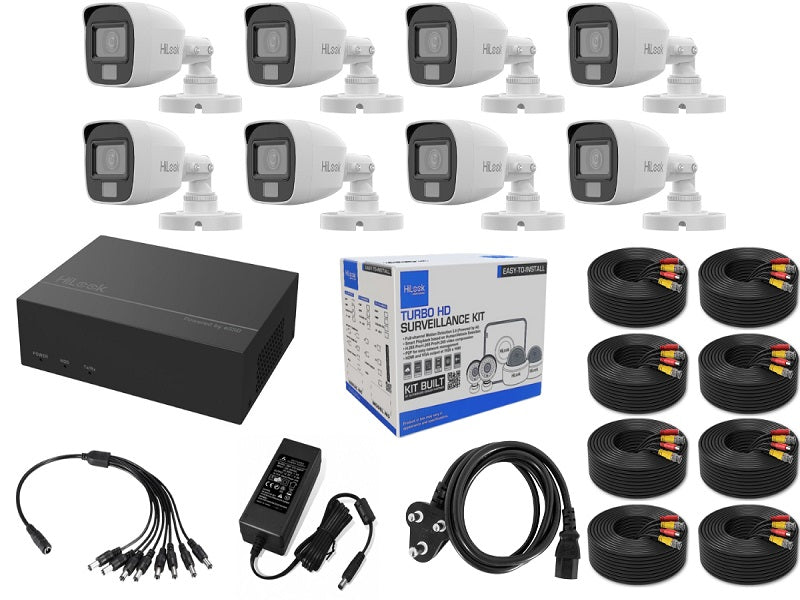

• 1 x E-DVR 512GB in built
• 1 x Power Cable
• 8 x CCTV Cables
• 8 x Cameras
• 1 x 10A Power Supply
