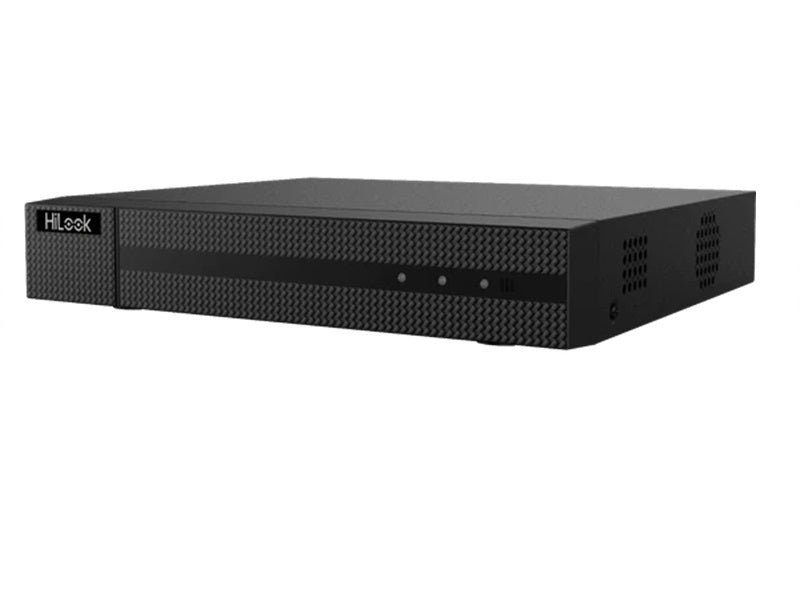

Hilook 16Ch 1080P Lite 1U Dvr 216G

Deep learning based human and vehicle targets classification of Motion Detection 2.0. Up to 18-ch IP camera input (up to 5 MP).

Key features

• Max. 1200 m for 720p HDTVI signal
• Human/Vehicle Analysis
• Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
• Quick search by object or event type is supported;
• Recording
• Encoding Resolution
• Frame Rate
• For 1080p and 720p stream access CIF/QVGA@15 fps
• Dual-Stream
• Support
• Stream Type
• BNC interface (1.0 Vp-p, 75 `d9), supporting coaxitron connection
• Pal/ntsc
• 1-ch, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz
• 1-ch RCA (2.0 Vp-p, 1 K'd9), and 16-ch via coaxial cable
• 1-ch, RCA (2.0 Vp-p, 1 K'd9) (using the first audio input)
• Synchronous Playback
• Total Bandwidth
• TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP,UPnP™, HTTPS, ONVIF
• Remote Connection
• Sata
• Up to 10 TB capacity for each disk

Specifications

• Dvr-216g-m1
• 16-ch 1080p Lite 1U H.265 DVR
• H.265 Pro+/H.265 Pro/H.265 video compression
• Up to 1080p Lite@15 fps encoding capability
• Motion Detection 2.0
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
• For 720p stream access: 720p/WD1/4CIF/VGA/CIF
• For SD stream access: WD1/4CIF/VGA/CIF
• For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
• For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
• For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
• For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
• 32 Kbps to 4 Mbps
• G.711u
• 64 Kbps
• 2-ch (up to 18-ch)
• Up to 5 MP resolution
• Support H.265+/H.265/H.264+/H.264 IP cameras
• 16-ch
• 1080p25, 1080p30, 720p25, 720p30
• 1-ch, RCA (Linear, 1 K'd9)
• 96 Mbps
• 128
• 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• 1, SATA interface
• Capacity
• 2 `d7 USB 2.0
• 12 VDC, 1.6 A
