Hilook 16 Port
Hilook 16 Port 100Mbps Poe Switch
Hilook 16 Port 100Mbps Poe Switch
Hilook 16 Port 100Mbps Poe Switch
Hilook 16 Port 100Mbps Poe Switch

Hilook 16 Port 100Mbps Poe Switch

HILOOK
R 1,999
Estimated delivery 2–4 working days
In stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 1,999

Description

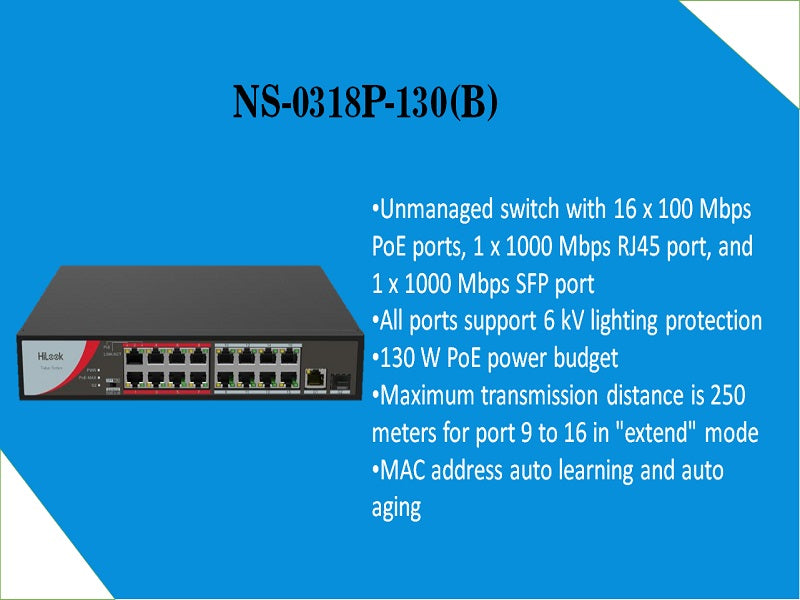

Unmanaged switch with 16 x 100 Mbps PoE ports, 1 x 1000 Mbps RJ45 port, and 1 x 1000 Mbps SFP port. Maximum transmission distance is 250 meters for port 9 to 16 in "extend" mode.

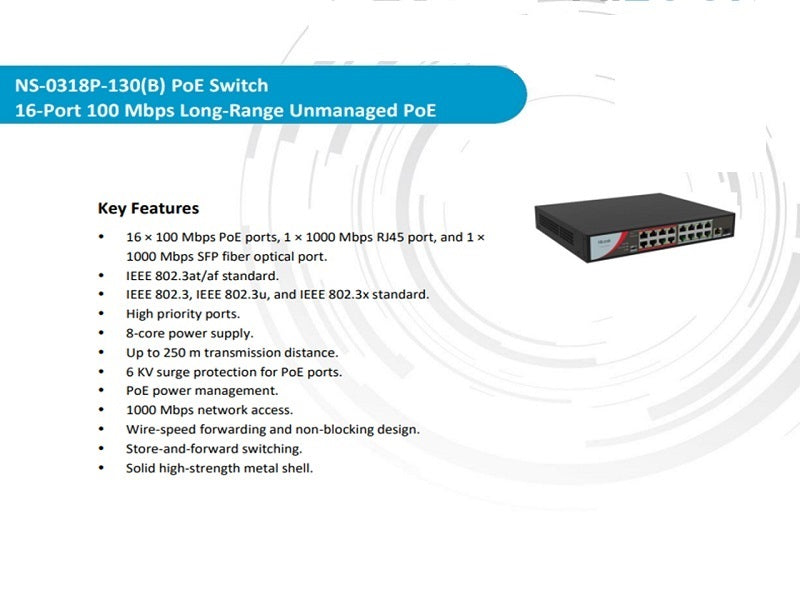

Key features

  • MAC address auto learning and auto aging
  • Shell
  • Metal material
  • 10 `b0C to 55 `b0C (14 `b0F to 131 `b0F)
  • 40 `b0C to 85 `b0C (-40 `b0F to 185 `b0F)
  • 100 to 240 VAC, 50/60 Hz, Max. 2.5 A
  • 266 mm `d7 44.5 mm `d7 220.8 mm (10.5” `d7 1.8” `d7 8.7”)
  • 16 `d7 100 Mbps PoE ports, 1 `d7 1000 Mbps RJ45 port, and 1 `d7 1000 Mbps SFP fiber optical port
  • Forwarding Mode
  • Store-and-forward switching
  • Working Mode
  • MAC Address Table
  • Switching Capacity
  • Packet Forwarding Rate
  • Internal Cache

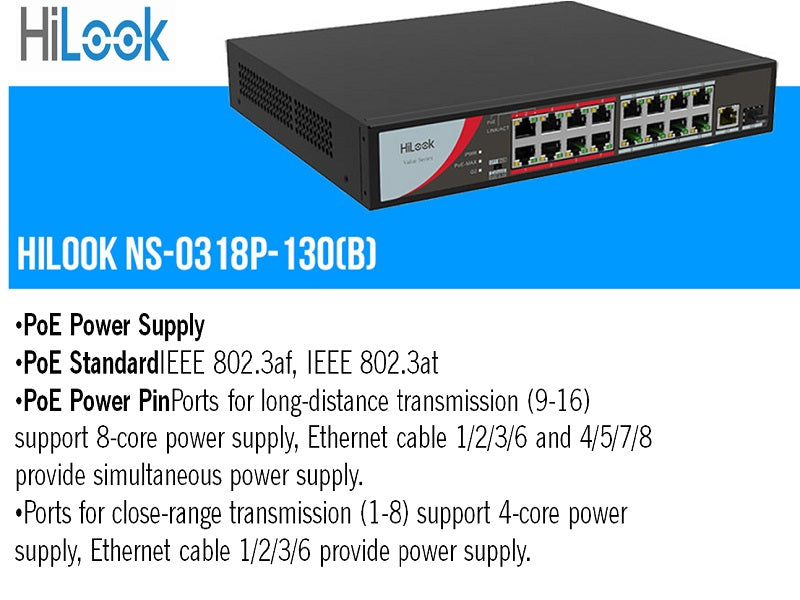

  • PoE Power Supply
  • PoE Standard
  • PoE Power Pin
  • Ports for long-distance transmission (9-16) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.
  • Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.
  • PoE Power Budget
  • Max. Power Consumption

Specifications

  • Unmanaged 1port GIG POE switch
  • All ports support 6 kV lighting protection
  • 130 W PoE power budget
  • 5% to 95% (no condensation)
  • 1.8 kg (4.0 lb)
  • 2.58 kg (5.69 lb)
  • Dimension (L `d7 H `d7 D)
  • 20 W
  • RJ45 port, full duplex, MDI/MDI-X adaptive
  • Standard
  • Ieee 802.3, ieee 802.3u, ieee 802.3x
  • Standard mode (default); Extend mode
  • 4 K
  • 7.2 Gbps
  • 5.356 Mpps
  • 2.75 Mbits
  • Ports 1 to 8
  • Ports 9 to 16
  • IEEE 802.3af, IEEE 802.3at
  • Ports 1 to 16
  • 30 W
  • 130 W
  • 150 W

Frequently Bought Together Frequently bought

Product Information

Categories HiLook / Networking
Brand Hilook
Type Unmanaged PoE Switch
Ports 16 x 100 Mbps PoE, 1 x 1000 Mbps RJ45, 1 x 1000 Mbps SFP
PoE Standard IEEE 802.3af / 802.3at
PoE Power Budget 130 W
Max Port Power 30 W
Switching Capacity 7.2 Gbps
Forwarding Rate 5.356 Mpps
MAC Address Table 4K
Max Transmission 250 m (Extend mode)
Power Supply 100-240 VAC, 50/60 Hz, Max 2.5 A
Power Consumption 150 W max
Dimensions 266 x 44.5 x 220.8 mm
Weight 1.8 kg
Material Metal shell
Operating Temperature -10C to 55C
Barcode 6941264028291
