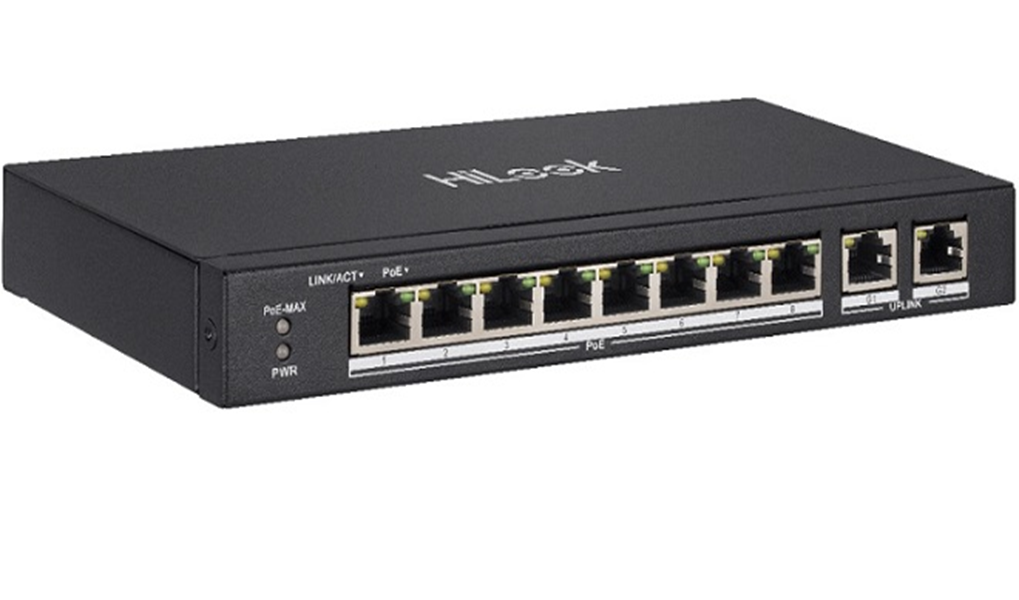

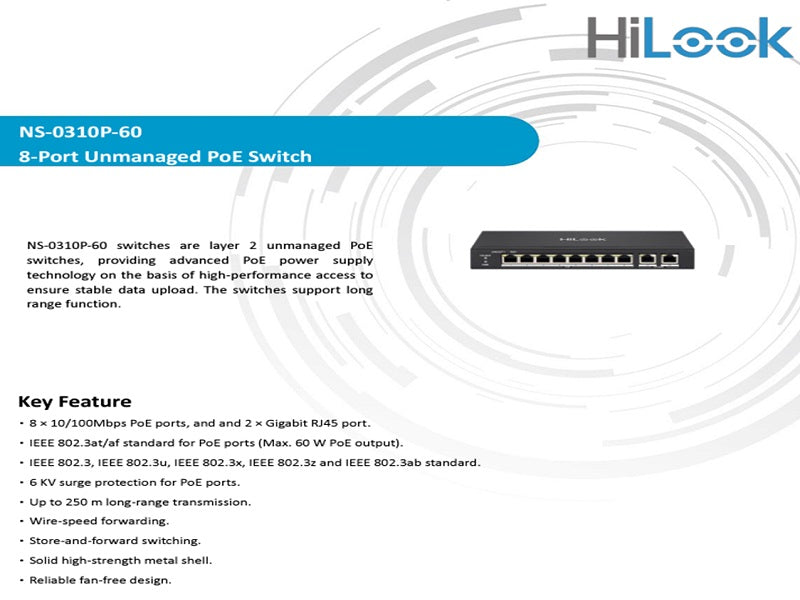

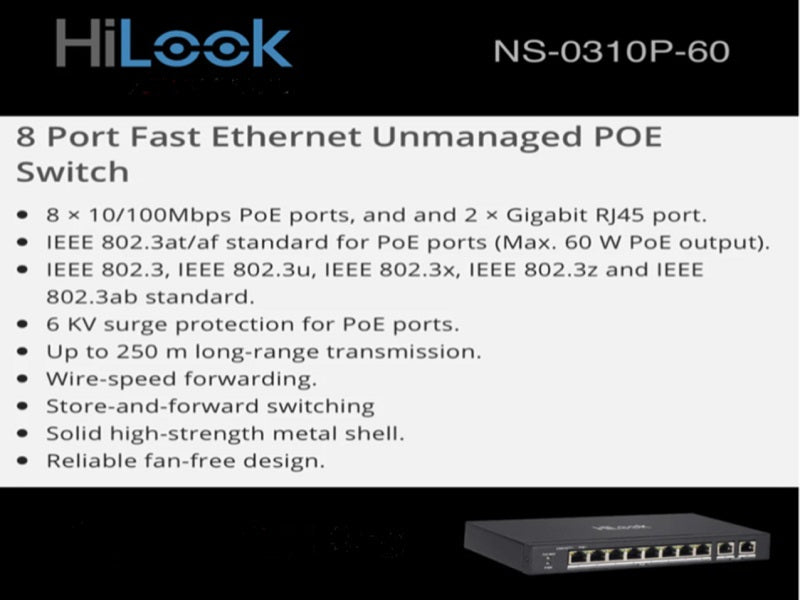

Hilook 8Port 100Mbps Network Poe Switch

8 `d7 10/100Mbps PoE ports, and and 2 `d7 Gigabit RJ45 port. IEEE 802.3at/af standard for PoE ports (Max. 60 W PoE output).

Key features

• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
• 6 KV surge protection for PoE ports.
• Up to 250 m long-range transmission.
• Wire-speed forwarding.
• Store-and-forward switching
• Solid high-strength metal shell.
• Reliable fan-free design.
• PoE Standard
• PoE Power Pin
• Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
• PoE Power Budget
• 8 `d7 10/100Mbps PoE ports, and and 2 `d7 Gigabit RJ45 ports
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
• Forwarding Mode
• Working Mode
• MAC Address Table
• Switching Capacity
• Packet Forwarding Rate
• Internal Cache
• Dialing Function
• Long Range
• Ports 1 to 8: up to 250 m.
• Shell
• Metal material, fan-free design
• 217.6 mm `d7 103.35 mm `d7 27.8 mm (8.57” `d7 4.07” `d7 1.09”)
• Max. Power Consumption
• Approval
• EMC
• FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000- 3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
• Safety
• UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• Chemistry
• CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Specifications

• Ns-0310p-60/unmanaged gigabit POE switch
• Ports 1 to 8: IEEE 802.3af, IEEE 802.3at
• Ports 1 to 8
• Ports 1 to 8: 30 W
• 60 W
• RJ45 port, full duplex, MDI/MDI-X adaptive
• Standard
• Standard mode (default), Extend mode
• 16 K
• 5.6 Gbps
• 4.1664 Mpps
• 4 Mbits
• 1.20
• 0.555
• Dimension (L `d7 H `d7 D)
• 10`b0C to 40`b0C (14`b0F to 104`b0F)
• 40`b0C to 85 `b0C -40`b0F to 185`b0F)
• 5% to 95% (no condensation)
• 48 VDC, 1.35 A
• < 5 W
• 65 W
