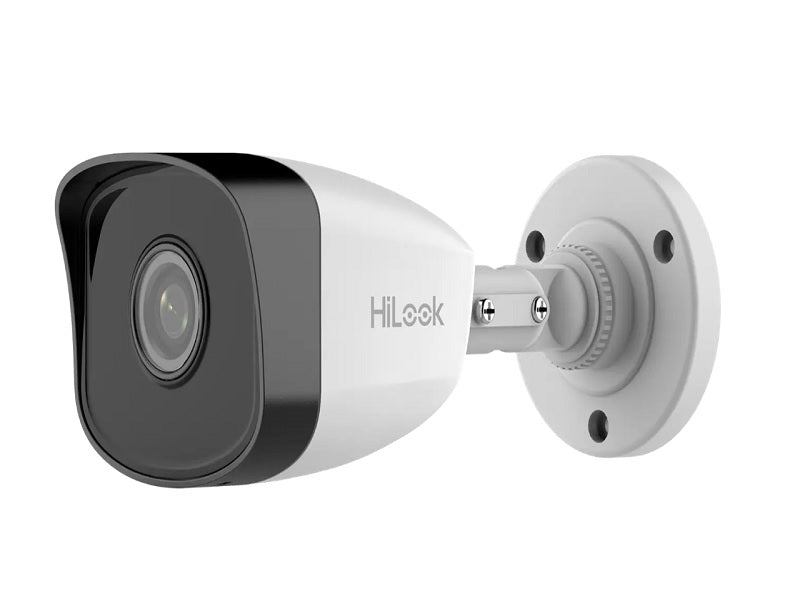

HiLook 5MP IP Bullet Camera 2.8mm - B150H, 30m IR, PoE, 1/2.7" CMOS (IPC-B150H)

HiLook 5 MP 2.8MM Fixed Bullet Network Camera
Camera
Image Sensor
1/2.7" progressive scan CMOS
Max. Resolution
2560 × 1920
Min. Illumination
Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 98.0°, vertical FOV 71.7°, diagonal FOV 127.0°

4 mm, horizontal FOV 75.3°, vertical FOV 55.5°, diagonal FOV 98.2°

Lens Mount
M12
Iris Type
Fixed
Aperture
F2.0

Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
IR Wavelength
850 nm

Video
Main Stream
50 Hz: 20 fps (2560 × 1920)

25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 20 fps (2560 × 1920)

30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression
Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main profile
Region Of Interest (ROI)
1 fixed region for main stream

Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface, ISAPI
User/Host
Up to 32 users. 3 levels: administrator, operator and user

3 user levels: administrator, operator, and user

Client
iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch
Auto, Schedule, Day, Night
Wide Dynamic Range (WDR)
120 dB
Image Enhancement
BLC, 3D DNR

Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic Event
Motion detection, video tampering alarm, exception
Linkage
Upload to FTP, notify surveillance center, send email

General
Power
12 VDC ± 25%, 0.4 A, max. 5 W, `d85.5. mm coaxial power plug

PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 WDimension
186.3 mm × 71.4 mm × 66.7 mm (7.3" × 2.8" × 2.6")
Package Dimension
216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Weight
Approx. 270 g (0.6 lb.)
With Package Weight
Approx. 481 g (1.1 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
