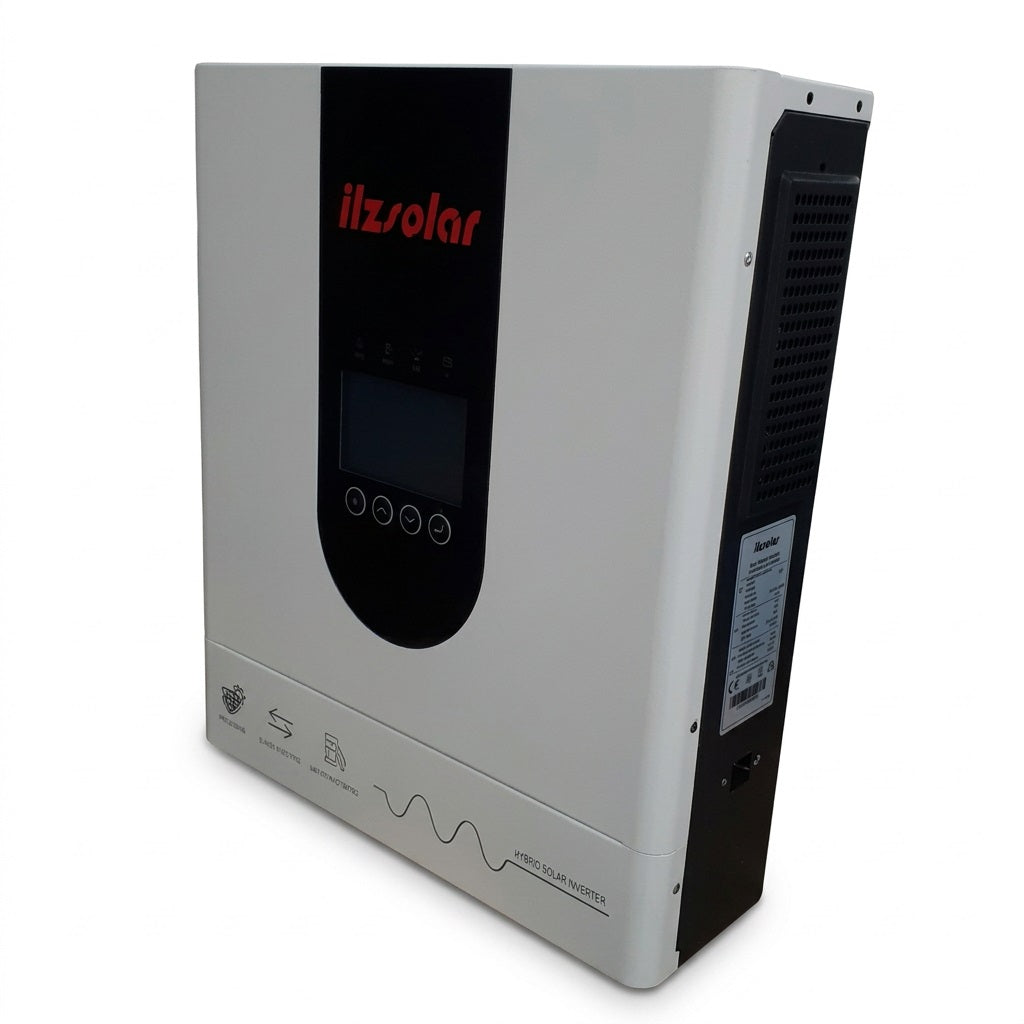

HZ 12kW 48V Hybrid Solar Inverte

The HZ 12kW 48V Hybrid Solar Inverter is designed for high-power residential and commercial solar energy and backup power systems. With a rated AC output of 12,000W, a 48V battery system and support for up to 15,000W of solar PV array power, it provides a central solution for managing solar generation and battery-based backup power.

Featuring two built-in MPPT solar chargers, the inverter supports solar input across an MPPT voltage range of 90–450V DC, with a maximum PV open-circuit voltage of 500V DC. Its pure sine wave output is suitable for compatible electrical equipment, while the LCD display provides an interface for viewing information and configuring settings.

Whether used in a residential property or a suitable commercial installation, the HZ 12kW hybrid inverter offers a high-capacity foundation for a compatible solar and battery system.
Key Features
- 12,000W Rated Output: Designed for high-demand residential and commercial power systems.
- 48V Battery System: Supports compatible 48V battery configurations.
- Hybrid Solar Design: Integrates solar input with a compatible battery backup system.
- Dual MPPT Solar Chargers: Two built-in MPPT channels for solar power management.
- Up to 15,000W PV Array Power: Supports a substantial solar panel array within the inverter's operating limits.
- Pure Sine Wave Output: Provides a smooth AC waveform for compatible electrical appliances and equipment.
- Wide MPPT Voltage Range: Operates within a specified solar tracking range of 90–450V DC.
- 500V DC Maximum PV Open-Circuit Voltage: Provides a defined upper limit for solar array voltage.
- Single-Phase Output: Designed for single-phase electrical installations.
- LCD Display: Provides access to inverter information and settings.
- 50/60Hz Frequency: Supports the specified operating frequencies.
Technical Specifications
Specification Details
Brand HZ
Product Type Hybrid Solar Inverter
Rated AC Output Power 12,000W (12kW)
Battery Voltage 48V
Maximum PV Array Power 15,000W
Maximum PV Open-Circuit Voltage 500V DC
MPPT Voltage Range 90–450V DC
Number of MPPT Chargers 2
Output Phase Single-phase
Output Waveform Pure sine wave
Operating Frequency 50/60Hz
Display LCD display and settings interface

Solar and Battery Backup Applications

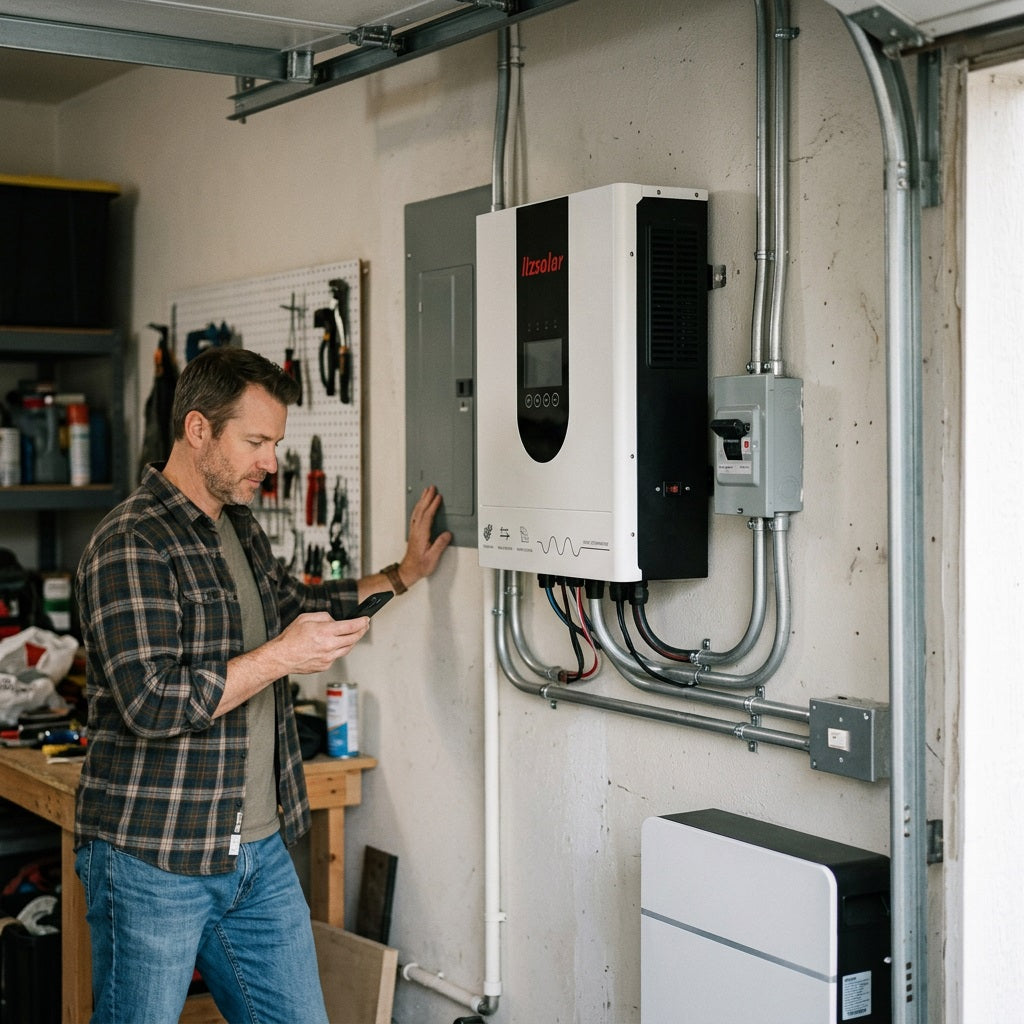

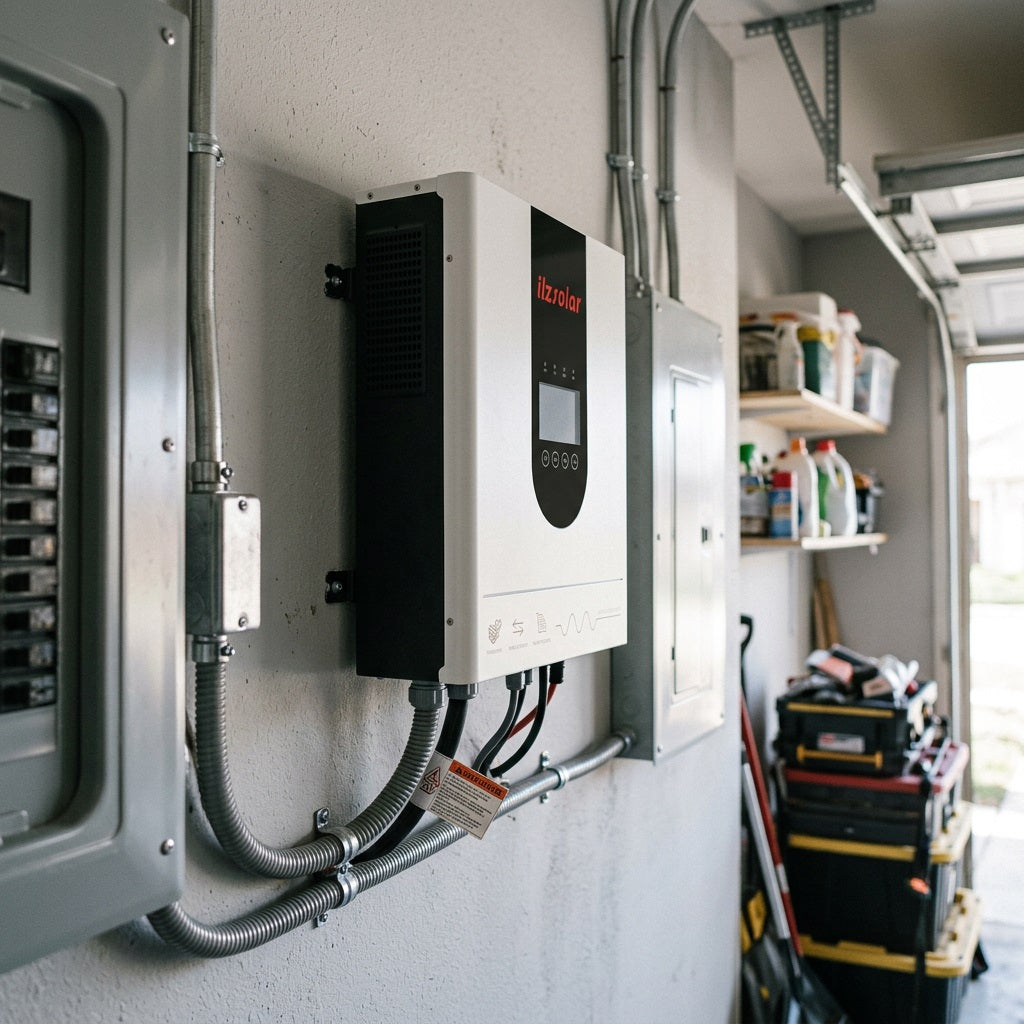

The HZ 12kW hybrid inverter can serve as the central unit in a suitably designed solar and battery backup installation.

Potential applications include:
- Residential solar power systems
- Larger homes with high electricity demand
- Commercial backup power installations
- Solar-powered systems with compatible battery storage
- Solar installations requiring dual MPPT inputs
Installation note: Confirm battery voltage range, battery management system (BMS) compatibility, maximum charging and discharging current, AC input/output ratings and PV string configuration before installation. Ensure the combined solar string open-circuit voltage remains within the inverter's limits under the coldest expected conditions. Installation should be performed by a qualified solar installer.
What's in the Box?
- 1 × HZ 12kW 48V Hybrid Solar Inverter
- 1 × User Manual
- Warranty Documentation
