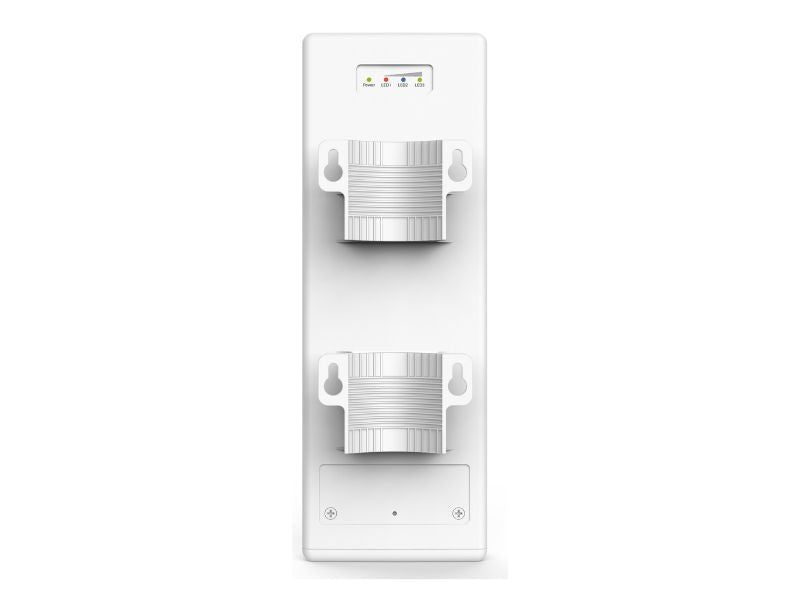

IP-COM 5GHz 11ac Gigabit Outdoor Cpe

The CPE13 (MS-5AC) 5GHz Outdoor CPE is purpose-built for Point-to-Point (PtP) and Point-to-Multipoint (P2MP) wireless solutions, making it ideal for video surveillance transmission and broadband access. Equipped with 11AC Wave2 wireless technology and a Gigabit Ethernet port, it delivers throughput of up to 450+ Mbps in PtP connections. The 16dBi dual-polarized directional antenna ensures stable, long-range connectivity with transmission distances of up to 10+ km.

Key features

• Designed for reliability in harsh environments, the CPE13 features an IP65 waterproof enclosure, 6000V lightning protection, and flexible PoE/DC power options for easy deployment.
• Its ipMAX TDMA proprietary protocol reduces interference and increases network capacity for outdoor P2MP applications, while iLink auto-bridge technology simplifies setup for users without networking expertise.
• One Gigabit Ethernet port for high-speed backhaul
• Throughput up to 450+ Mbps in PtP mode
• ipMAX TDMA proprietary protocol for stable P2MP performance
• iLink auto-bridge technology for quick setup
• Flexible power supply options: PoE 802.3af/at, 24V Passive PoE, or 12V DC
• Centralized management software (CPE Controller)
• Application Scenarios
• Long-Distance Wireless Connection: AP mode + Station mode for video surveillance and data transmission.
• WISP Mode (Client + Router): Share internet access from a wireless ISP station to local wired/wireless networks.
• Outdoor Deployments: Reliable operation in sun, rain, extreme heat, or cold.

Specifications

• Cpe-10km
• 5GHz 11AC 867Mbps high-speed wireless
• 16dBi dual-polarized directional antenna
• 10+ km long-distance transmission
• Multiple operating modes: AP / Station / WISP
• IP65 waterproof enclosure & 6000V lightning protection
