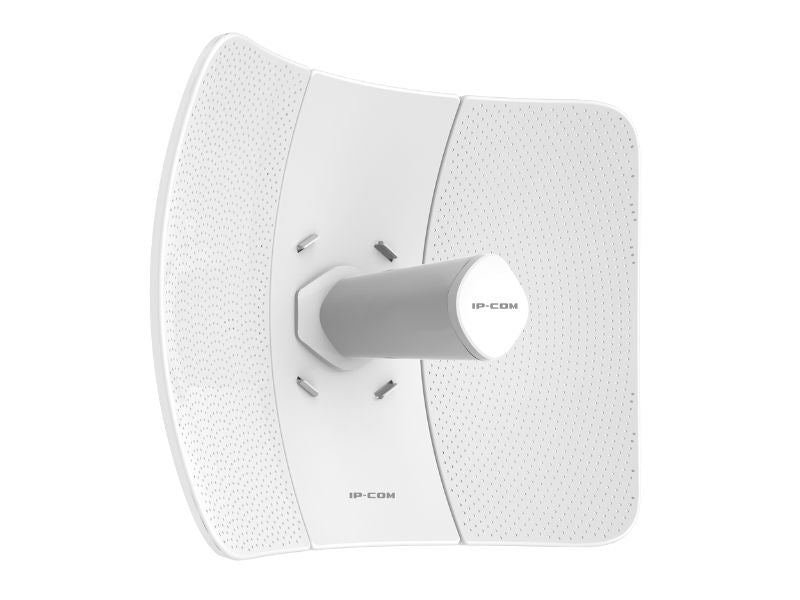

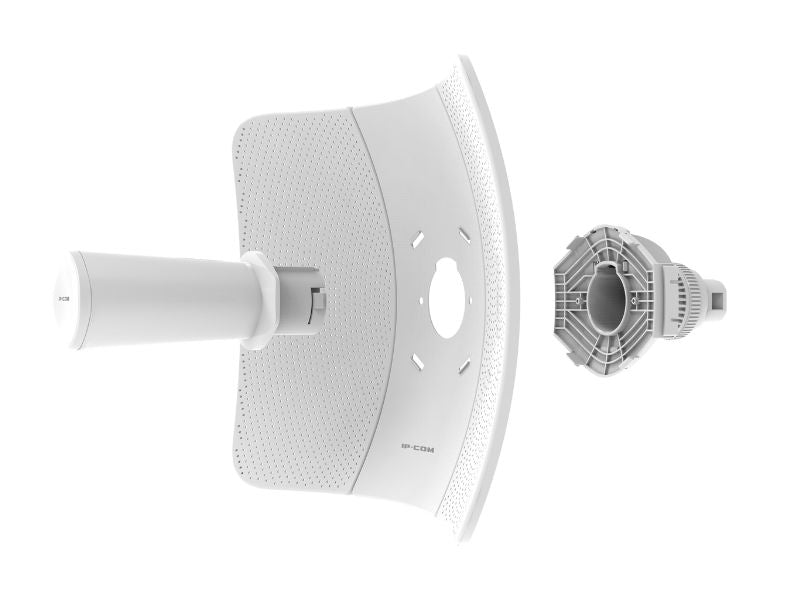

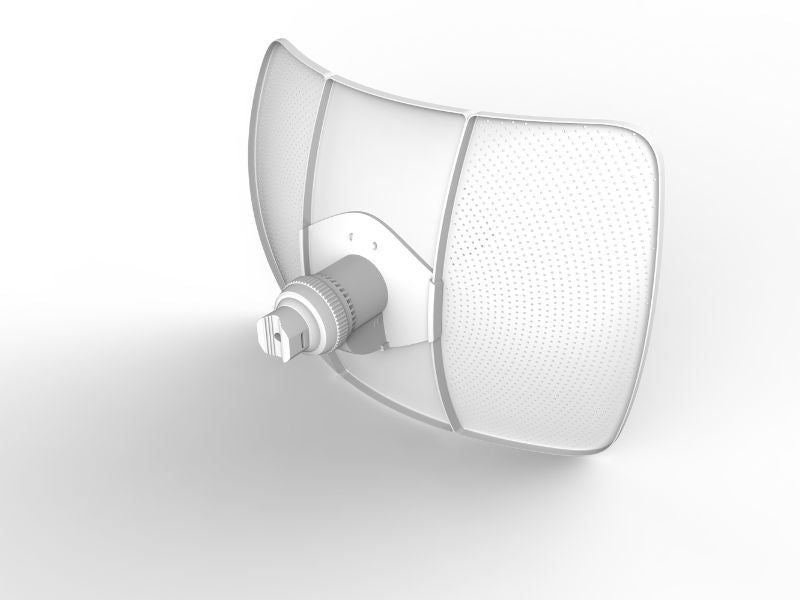

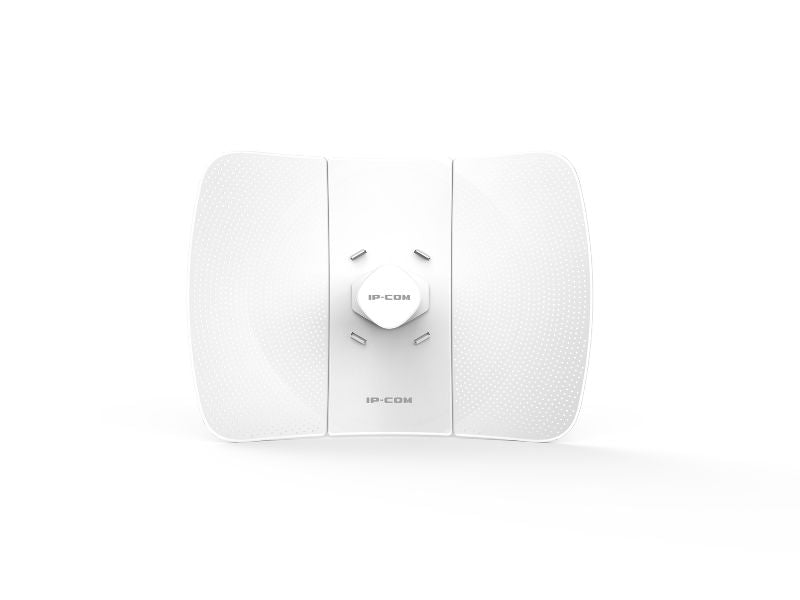

IP-COM 5GHz 23dBi ipMAX 11AC 433Mbps

IP-COM iLBE-M5 5GHz 23dBi ipMAX AC Outdoor CPE – 1 Pack. The IP-COM iLBE-M5 (Wavebeam M5) is a high-performance 5GHz outdoor CPE designed for Point-to-Point (PtP) and Point-to-Multipoint (P2MP) applications, including video surveillance transmission and wireless broadband access. Utilizing 11AC technology, it delivers a high wireless rate of 433Mbps for stable and efficient network performance.

Key features

• Equipped with a 23dBi vertical-polarized directional antenna and an independent external power amplifier, the iLBE-M5 ensures long-range connectivity up to 20 km, making it ideal for outdoor deployments over large distances.
• One Fast Ethernet port for reliable wired backhaul
• Operating modes: AP / Station / WISP (Client + Router)
• ipMAX TDMA proprietary protocol for improved network capacity and reduced interference
• iLink auto-bridge technology for quick and easy setup
• Centralized management software for easy control of multiple devices
• Long-Distance Transmission
• The iLBE-M5 is engineered for stable outdoor networks, offering reliable connectivity over distances of 20 km+. The combination of 23dBi directional antenna and external amplifier ensures strong signal reception and minimal packet loss.
• ipMAX – Advanced Network Protocol
• The ipMAX TDMA protocol coordinates transmissions among devices, reducing collisions and improving throughput in P2MP outdoor networks. Compared to standard 802.11 CSMA/CA, it provides greater reliability, lower latency, and higher noise immunity.
• iLink Auto-Bridge Technology
• With iLink, the CPE and base station automatically connect after powering on, simplifying setup for users without networking experience. Ideal for CCTV surveillance and broadband applications.
• Professional Outdoor Design
• Built with an IP65 waterproof enclosure and high-quality components, the iLBE-M5 performs reliably in extreme weather conditions, including heat, cold, rain, and strong sunlight.
• Application Scenarios
• Long-Distance Wireless Connection: AP + Station mode for PtP video surveillance and data transmission
• WISP Mode: Connect to a WISP hotspot and share Internet to local wired and wireless networks
• Easy Setup and Management
• Centralized management via PC-CPE Controller allows users to monitor and manage multiple devices from a single interface, making network administration simple and efficient.

Specifications

• Outdoor CPE-20+KM
• 5GHz 11AC 433Mbps wireless speed
• 23dBi directional antenna for long-range coverage
• IP65 waterproof enclosure for outdoor durability
• 6000V lightning protection
