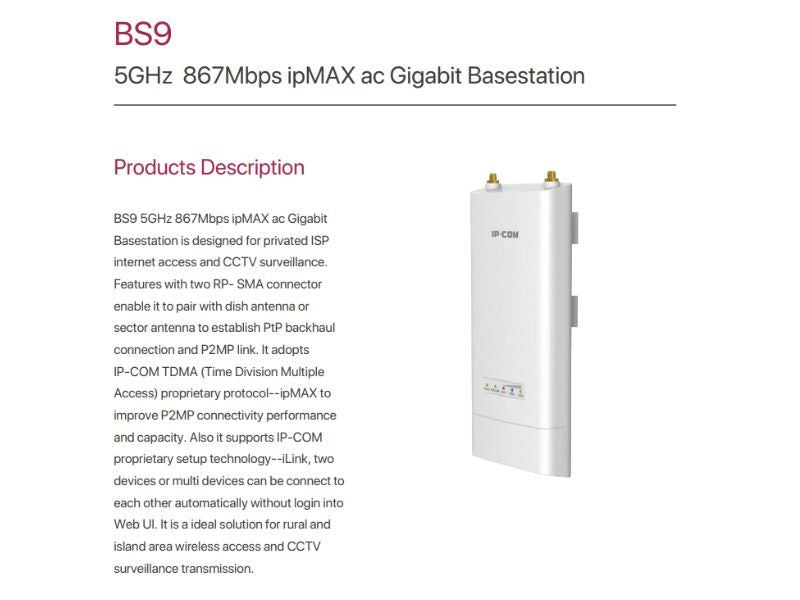

IP-COM 5GHz 867Mbps ipMAX AC
IP-COM 5GHz 867Mbps ipMAX AC
IP-COM
R 1,299
Estimated delivery
2–4 working days
In stock
FREE NATIONWIDE DELIVERY
on orders over R 500
on orders over R 500
Quantity
In stock
When do I get it?
Estimated delivery times depend on where you are. Your exact date is confirmed at checkout.
| Delivery destination | Delivery time |
|---|---|
| Cape Town, Durban, Johannesburg & Pretoria | 2–4 working days |
| Regional areas | 5–6 working days |
| Remote areas | 3–7 working days |
- Interest Free Payments available
- Hassle Free Returns within 7 days
- 6-month limited warranty
Description
Application Scenarios PtP Backhaul and PtMP wireless connection for Privated ISP access or CCTV Surveillance. Passive PoE Passive power over ethernet via PoE/LAN (+4,5pins; -7,8pins ) up to 60 meters.
Key features
- Gigabit Basestation
- Two RP-SMA Connector
- AP,Station,WISP operating mode supported
- Product Information
- Deployment Pole Mount
- Private TDMA Protocol ipMAX
- Antenna Beamwidth /
- Enable/Disable Wireless Radio Support
- SSID Hidden Support
- Wireless Client isolation Support
- SSID Isolation Support
- Client Limitation For SSID Support
- Wireless Access Control Support
- Weak Signal Client Limitation Support
- WMM Capable Support
- APSD Capable Support
- Transparent Bridge Support
- VLAN Tagging for SSID Support
- DHCP Server Support
- Remote Web access Support
- Schedule Reboot Support
- Page Timeout Support
- Ping Watchdog Support
- Dyndns noip, dyndns.org
- Network Diagnoses Ping, Traceroute, Signal Scan
- Time&Date Setting Support
- Firmware upgrade Support
- Backup/Restore Configuration Support
- Username Managerment Support
- Managed By Controller PC Software -- CPE Controller
- Others
- Package Contents 1*5GHz 867Mbps ipMAX ac Gigabit Basestation
- Default Login Username admin
- Default Login Password admin
Specifications
- BS9
- 5GHz 867Mbps ipMAX ac Gigabit Basestation
- 5GHz 11AC 867Mbps
- IP65 waterproof enclosure
- 6000V Lightning Protection
- Model BS9
- Dimensions 194.7*83*42.1mm
- Frequency Range 5GHz
- Compliant Standards IEEE 802.11a/n/ac
- Maximum Wireless Rate 867Mbps
- Interfaces 1*10/100/1000Mbps Ethernet Port
- Antennas 2*RP-SMA Connector
- Reset Button 1
- Power Consumption 7.5W
- Waterproof Level IP65
- LED indicator Power,PoE/LAN,LED1,LED2,LED3
- Lightning Protection 6000V
- Power Method 24V0.5A Passive PoE
- Voltage range: 21-25V DC
- Receiver sensitivity 11a 6Mbps -95dBm'b11.5dBm
- 11n MCS7 HT20 -72dBm'b11.5dBm
- 11ac MCS9 HT80 -64dBm'b11.5dBm
- Operating mode AP/Station/WISP/P2MP/WDS Repeater/Router
- Channel Bandwidth 20/40/80MHz
- Transmission Power Adjustable power by 1dBm
- Wireless Security 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
- VPN Pass-Through PPTP,L2TP
- 1*PoE Power Adapter
- 1*Power cord
- 1*Quick Installation Guide
- 1*Metal strap
- Operating Temperature -30℃ ~ 60℃
- Storage Temperature -40℃ ~ 70℃
- Operating Humidity 10%~90% non-condensing
- Storage Humidity 10%~90% non-condensing
- Default login IP 192.168.2.1
Frequently Bought Together Frequently bought
Product Information
| Categories | IP-COM / Networking |
| Brand | IP-COM |
| Model | BS9 |
| Frequency | 5 GHz |
| Standards | IEEE 802.11a/n/ac |
| Max Wireless Rate | 867 Mbps |
| Antennas | 2 x RP-SMA Connector |
| Ports | 1 x 10/100/1000 Mbps Ethernet |
| Power Method | 24V 0.5A Passive PoE |
| Power Consumption | 7.5 W |
| Lightning Protection | 6000V |
| Weather Rating | IP65 |
| Dimensions | 194.7 x 83 x 42.1 mm |
| Deployment | Pole Mount |
| Operating Temperature | -30C to 60C |
| Operating Modes | AP/Station/WISP/P2MP/WDS Repeater/Router |
| Certifications | FCC/CE/RoHS |
| Barcode | 6932392828709 |
