IP-COM AX3000 Wi-Fi 6 Wireless

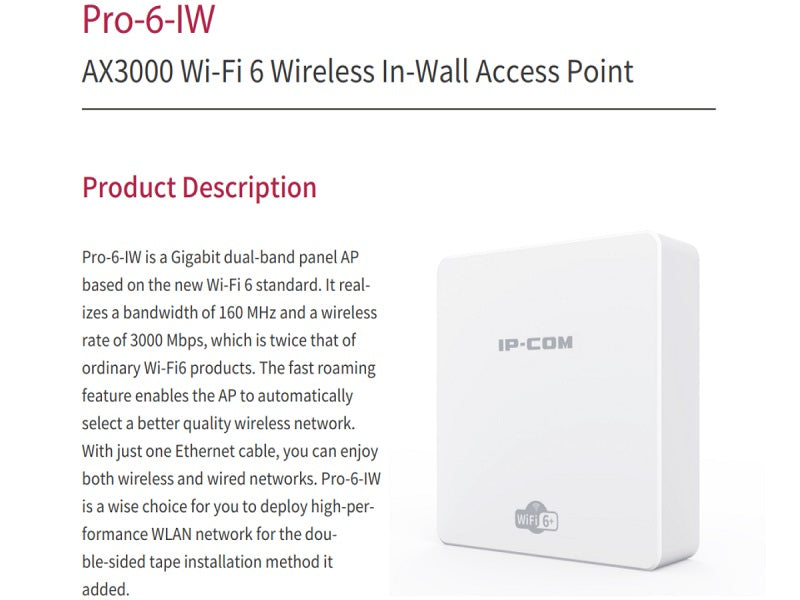

Pro-6-IW is a Gigabit dual-band panel AP based on the new Wi-Fi 6 standard. It realizes a bandwidth of 160 MHz and a wireless rate of 3000 Mbps, which is twice that of ordinary Wi-Fi6 products. The fast roaming feature enables the AP to automatically select a better quality wireless network. With just one Ethernet cable, you can enjoy both wireless and wired networks. Pro-6-IW is a wise choice for you to deploy high-performance WLAN network for the double-sided tape installation method it added. Power supply standard - IEEE 802.3af PoE, DC 12V 1A.

Key features

• In-Wall Access Point
• Support k/v/r fast roaming
• Support IPTV penetration
• Traffic control function

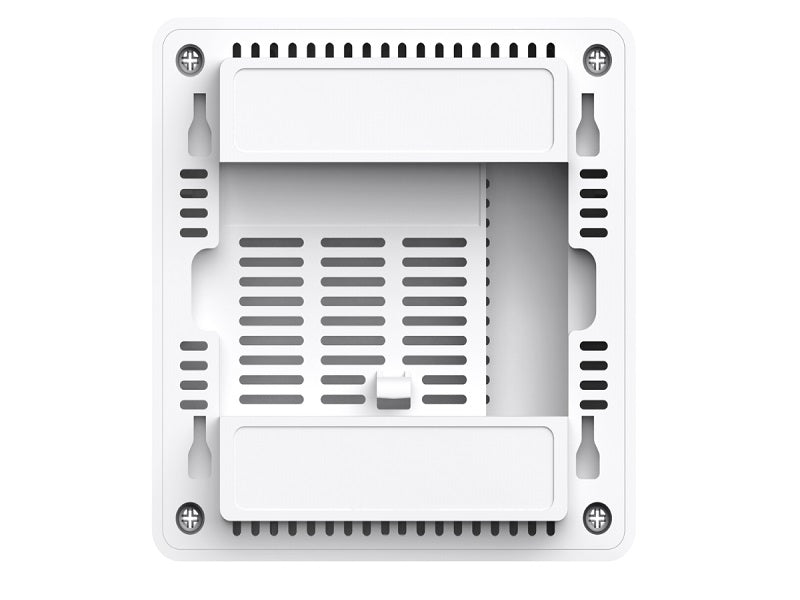

• Double-sided tape installation
• Support Mesh technology
• Product Information
• Category -In Wall
• Ethernet port - One 1000 Mbps LAN Port (PoE)
• LED indicator - Bi-Color LEDs -
• Max. power consumption - 8.5W
• Max. connected clients - 256
• Transmission Power - CE:<20 dBm(2.4 GHZ, EIRP) <23 dBm(5 GHZ, EIRP)
• FCC:<26 dBm (2.4 GHz) <26 dBm (5 GHz)

Specifications

• 3000 Mbps Wireless rate
• Model -Pro-6-IW
• Dimensions- 86*86*32 mm
• Frequency band- 2.4 GHz, 5 GHz
• Wireless standards - IEEE 802.11a/b/g/n/ac/ax
• 2.4 GHz data rate - 1-574 Mbps
• 5 GHz data rate - 6-2402 Mbps
• Channel width - 20 MHz/40 MHz/80 MHz/160MHz
• Mu-mimo - 2X2 mu-mimo
• One 1000 Mbps LAN Port
• Button - 1*Reset
• 2.4 GHz Antenna gain- 4 dBi
• 5 GHz Antenna gain - 5 dBi
• 21+/1.5dBm
• 23+/1.5dBm
• 2.4 GHz 802.11b RX sensitivity
• 95.5 dBm
• 2.4 GHz 802.11n (MCS7) RX sensitivity
• 72.5 dBm5 GHz 802.11a RX sensitivity
• 97.5 dBm
• 5 GHz 802.11n (MCS7) RX sensitivity
• 77.5 dBm
