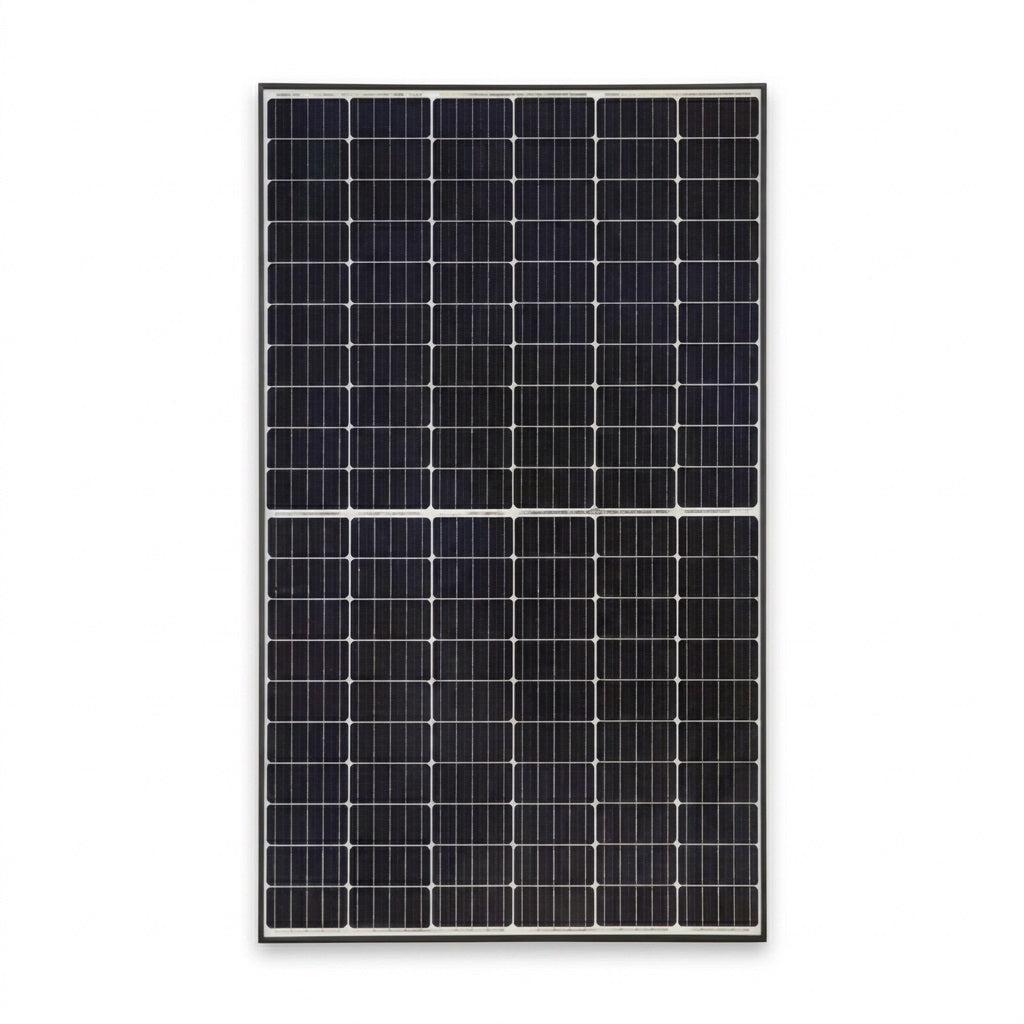

JA Solar 715W Bifacial Solar Panel - N-Type TOPCon, Dual Glass
JA SOLARReliable delivery, every order
When do I get it?
Estimated delivery times depend on where you are. Your exact date is confirmed at checkout.
| Delivery destination | Delivery time |
|---|---|
| Cape Town, Durban, Johannesburg & Pretoria | 1–3 working days |
| Regional areas | 5–6 working days |
| Remote areas | 3–7 working days |
- Interest Free Payments available
- Hassle Free Returns within 7 days
- 12-month limited warranty
Description
Key Performance Features
Ultra-High Output: 715W peak power using high-efficiency N-Type cells.
Bifacial Power Gain: Generates up to 10%–30% additional energy from the rear side (80% ± 10% Bifaciality).
N-Type TOPCon Technology: Exceptional low-light response, better temperature coefficient (-0.29%/°C), and significantly lower Light Induced Degradation (LID).
Robust Glass-Glass Build: Dual 2.0mm heat-strengthened glass ensures maximum durability and PID resistance.
Extended Reliability: 12-Year Product Warranty and a 30-Year Linear Power Warranty (guaranteeing 87.4% output after 30 years).
product description
Key Performance Features
Ultra-High Output: 715W peak power using high-efficiency N-Type cells.
Bifacial Power Gain: Generates up to 10%–30% additional energy from the rear side (80% ± 10% Bifaciality).
N-Type TOPCon Technology: Exceptional low-light response, better temperature coefficient (-0.29%/°C), and significantly lower Light Induced Degradation (LID).
Robust Glass-Glass Build: Dual 2.0mm heat-strengthened glass ensures maximum durability and PID resistance.
Extended Reliability: 12-Year Product Warranty and a 30-Year Linear Power Warranty (guaranteeing 87.4% output after 30 years).
???? Technical Specifications (Datasheet)
Electrical Parameter (STC),Value
Rated Maximum Power (Pmax),715 W
Open Circuit Voltage (Voc),48.80 V
Maximum Power Voltage (Vmp),41.00 V
Short Circuit Current (Isc),18.55 A
Maximum Power Current (Imp),17.44 A
Module Efficiency,23.0%
Power Tolerance,0 ~ +3%
Mechanical Details Value
Cell Type Mono N-Type TOPCon
No. of Cells 132 (6 x 22)
Dimensions 2384 ± 2mm x 1303 ± 2mm x 33 ± 1mm
Weight 38.2 kg
Front/Back Glass 2.0mm / 2.0mm Heat-strengthened glass
Frame Anodized Aluminum Alloy
Junction Box IP68, 3 Diodes
Connectors MC4-EVO2A / QC 4.10-351
Operating Conditions Value
Maximum System Voltage 1500V DC
Operating Temperature -40°C to +85°C
Maximum Static Load (Front) 5400 Pa (Snow)
Maximum Static Load (Back) 2400 Pa (Wind)
Max Series Fuse Rating 35 A
Frequently Bought Together Frequently bought
Product Information
| Warranty | 12-month limited warranty |
| Categories | Solar Solutions / Specials |
| Brand | JA Solar |
| Brand | JA Solar |
| Peak Power | 715W |
| Cell Technology | N-Type TOPCon |
| Type | Bifacial |
| Bifaciality | 80% ± 10% |
| Rear-Side Gain | Up to 10-30% additional energy |
| Temperature Coefficient | -0.29%/°C |
| Low-Light Response | Exceptional |
| SKU | JASOLAR-715W |
