KDS Solar Rail U Type Joiner Includes

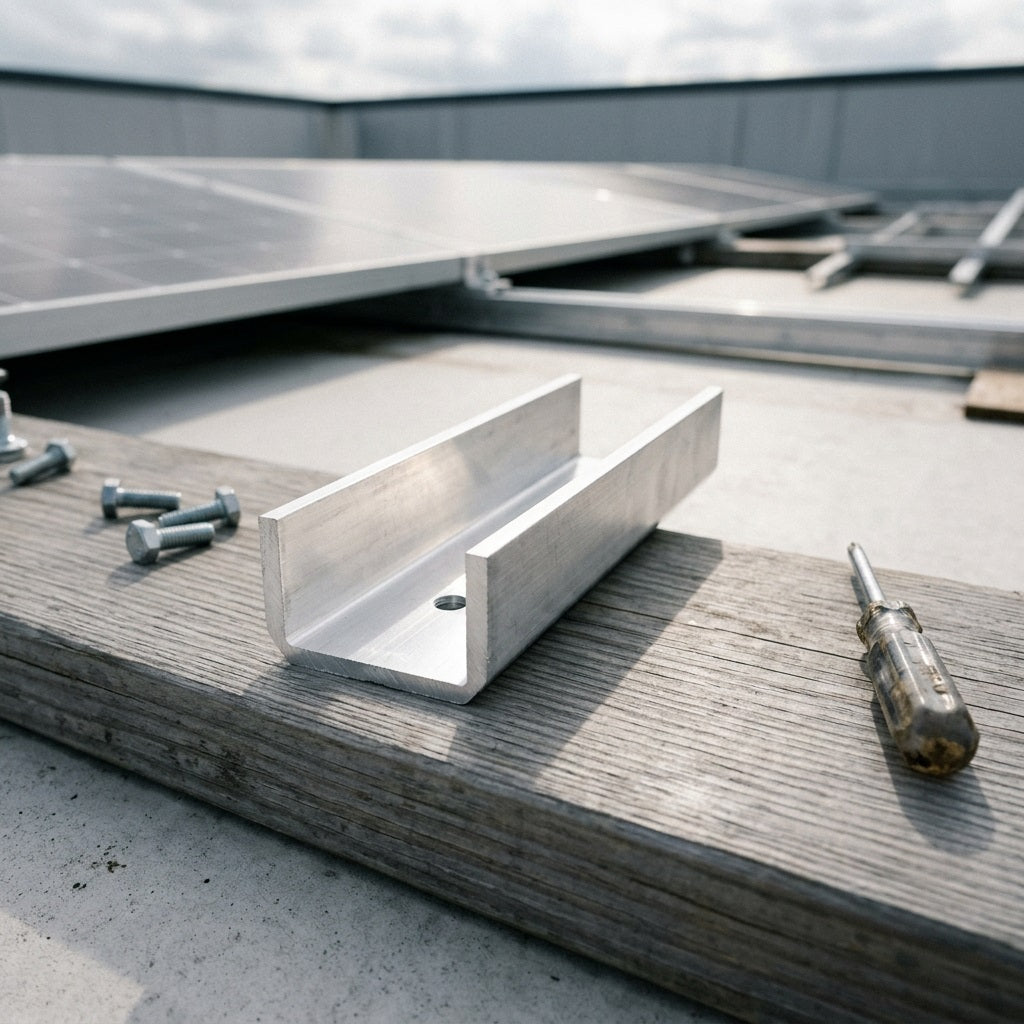

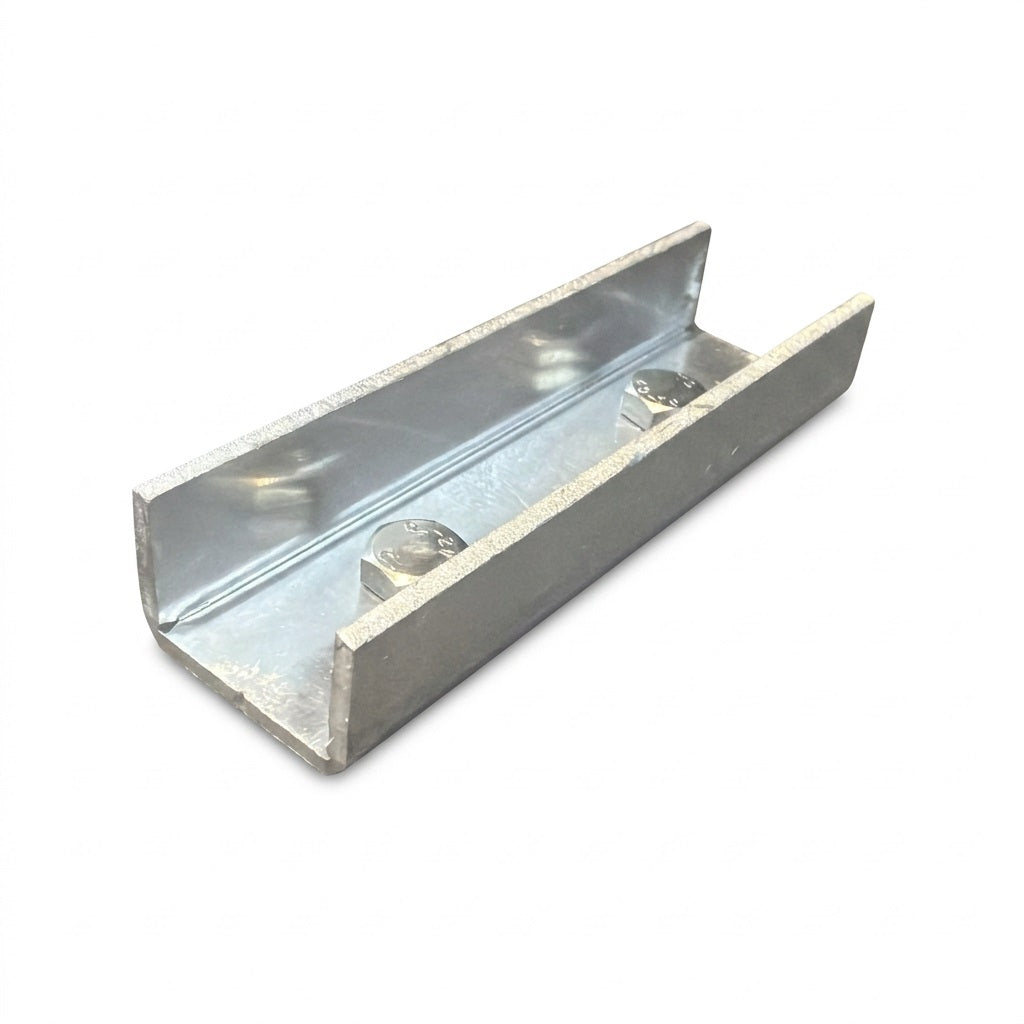

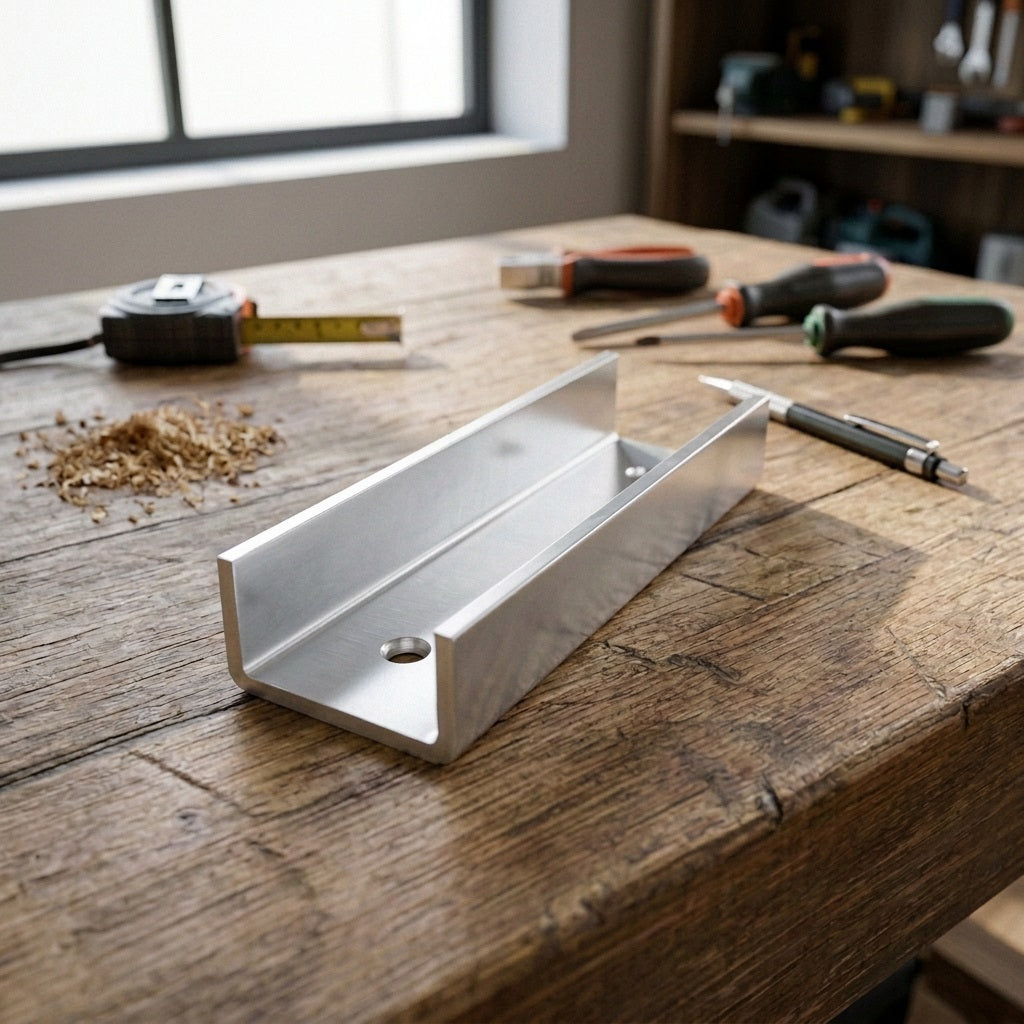

The KDS Solar Rail U-Type Joiner with 2 × M8 × 16mm Bolts (KDS-U-JOIN-KDS) is a mounting accessory used to connect compatible sections of solar mounting rail. It helps create a continuous rail arrangement where the installation design requires rail sections to be joined together.

The U-type joiner is supplied with two M8 × 16mm bolts, as specified in the product name. The bolts are intended to secure the joiner to compatible mounting components according to the manufacturer's design and installation instructions.

Rail joiners are useful in solar installations where the required mounting length exceeds the length of an individual rail section. Correct compatibility and installation help ensure the mounting assembly performs as intended.

This product should be used only with compatible rail profiles and mounting hardware. The exact joining method, material, finish and load capacity should be confirmed with the supplier before use.

Key Features

KDS solar mounting accessory

U-type solar rail joiner

Model / SKU: KDS-U-JOIN-KDS

Supplied with 2 × M8 × 16mm bolts

Designed to join compatible solar mounting rail sections

Suitable for compatible solar panel mounting systems

Helps create longer rail assemblies where required

Installation must follow the mounting system manufacturer's instructions

5. Technical Specifications

Specification

Details

Brand

KDS, as indicated by the product code

Product Type

Solar Rail Joiner

Model / SKU

KDS-U-JOIN-KDS

Joiner Design

U-Type

Application

Solar mounting rail connection

Included Bolts

2 × M8 × 16mm

Joiner Material

Verify with supplier

Surface Finish

Verify with supplier

Dimensions

Verify with supplier

Compatible Rail Profile

Verify with supplier

Installation Method

Verify with supplier

Load Rating

Verify with supplier
