MECER 5Kw 2400W Pwm Controller

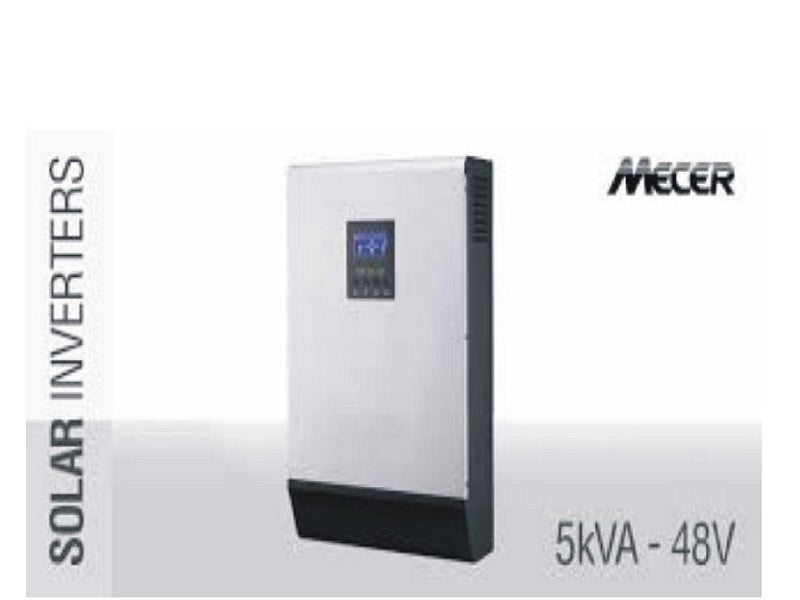

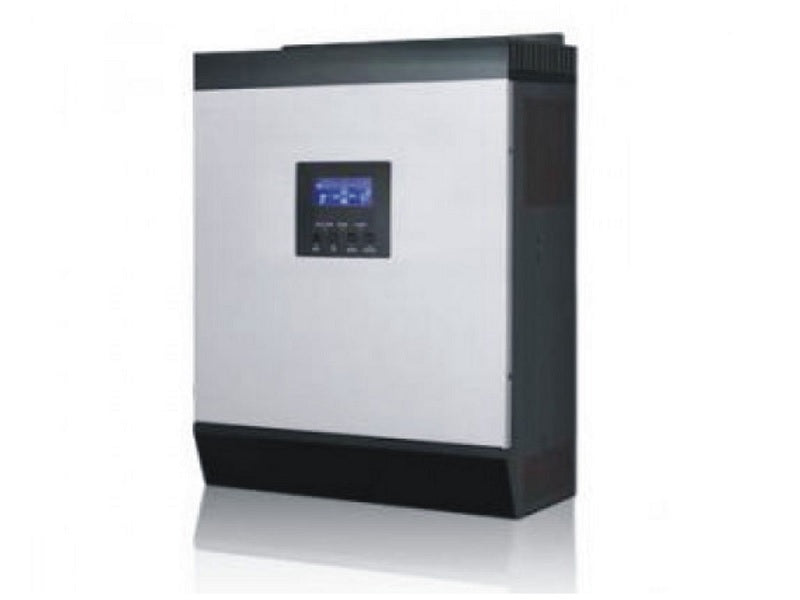

MECER HYBRID 5000VA / 5000W Hybrid Pure Sine Wave Inverter with Charger. Hybrid Pure Sine Wave Inverter Power factor 1, MPPT Solar charge.

Key features

• 220V AC Input, 48V DC Battery Input-requires deep cycle batteries (batteries not included),
• 80Amp AC Battery Charger, Overload and short circuit protection,
• Con????gurable AC/Solar Input Priority, 13.5Kg, Up to 9 of these unit can be connected in parallel.
• Please take
• note of connection: Connect RED cable to (+) on battery and the (+) on the unit, and BLACK cable to (-) on
• battery and the (-) on the unit. Place cable lug directly onto the battery terminal ????rst, follow up with the
• washer and then the lock washer, and then the nut. Do not put a washer between the battery terminal and
• cable. Connect the positive cable ????rst. Follow instructions in manual.
• Pure sine wave inverter
• Built-in battery equalization function to extend battery life cycle
• Built-in MPPT solar charge controller
• Selectable input voltage range for home appliances and personal computers
• Selectable charging current based on applications
• Con????gurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Specifcations
• Selectable Voltage Range 170-280 VAC (For Personal Computers), 90-280 VAC (For Home Appliances)
• AC Voltage Regulation (Batt.
• Transfer Time 10 ms (For Personal Computers), 20 ms (For Home Appliances)
• Waveform Pure sine wave
• Floating Charge Voltage 54 VDC Max: 58 VDC (Optional 64 VDC, please check with sales)
• Overcharge Protection 60 VDC (Optional 66 VDC, please check with sales)
• Solar charger & AC charger
• Maximum PV Array Open Circuit
• VGA male TO female
• Manual book

Specifications

• MECER Axpert_MKS 5000VA / 5000W
• Controller 4000W 80Amp (solar panels not included)
• Output power factor 1 (only 0.8 for 3KP/5KP Models)
• Battery equalization for optimized battery performance and lifecycle
• Product Code SOL-I-AX-5P
• Model Axpert MKS 5K-48
• Rated power 5000VA/ 5000W
• Parallel Capability Yes, 9 units
• Voltage 230 VAC
• Frequency Range 50 Hz/60 Hz (Auto sensing)
• Mode) 230VAC `b1 5%
• Surge Power 10000VA
• Ef????ciency (Peak) 93%
• BATTERY & AC CHARGER
• Battery Voltage 48 VDC
• Maximum PV Array Power 4000W
• Voltage 60VDC ~115VDC
• Voltage 145VDC
• Maximum Solar Charge Current 80A
• Maximum AC Charge Current 60A
• Maximum Charge Current 140A
• Maximum Ef????ciency 98%
• Standby Power Consumption 2 W

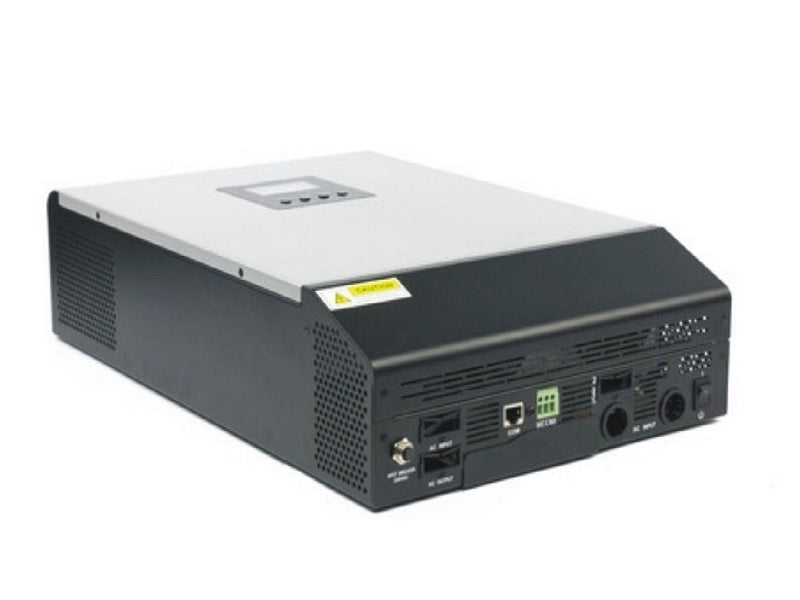

• MECER SOL-I-AX-5P Hybrid Solar Inverter
• RJ45 TO VGA female
