MULTIPURPOSE Intelligent Wire Tracker

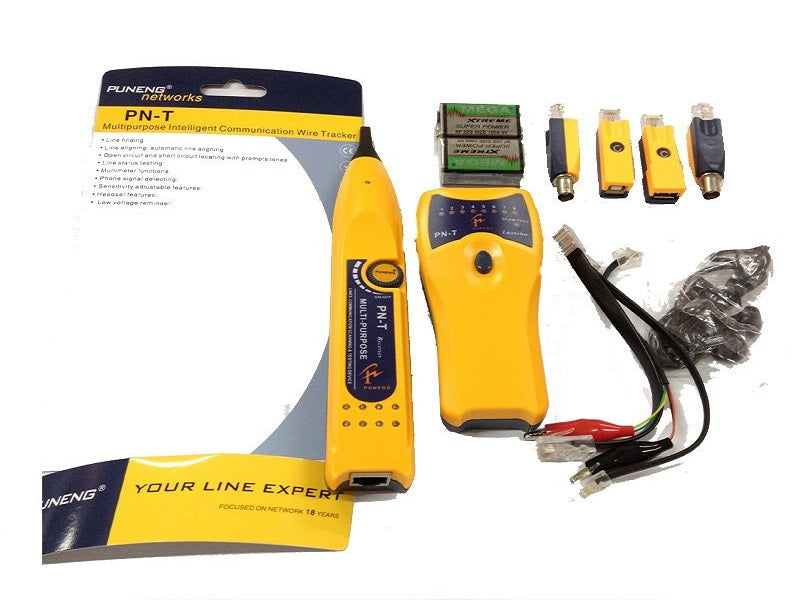

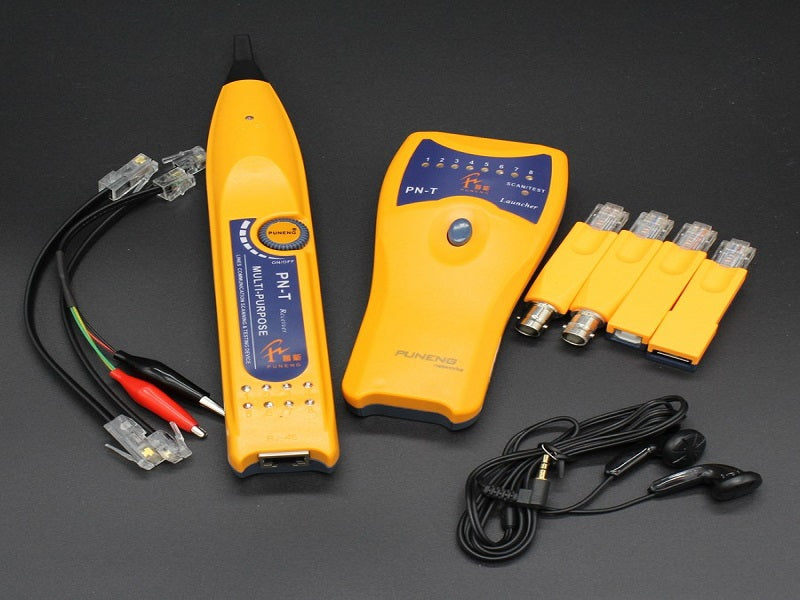

Description Features Cable Tester for UTP STP RJ45(manual switch) Automatic efficient scan for the miss wiring, disorder cable, open and sho circuit TEL BNC test available(Adapter needed) Remotely test cable up to 1000 ft in length ( remote kit included ) Protective power switch for low power consumption High quality protecive case provides more secure protection Judge continuity of the cables or wires Track the cables or wires, and diagnose the break point Receiver the tone signal on the cables or wires (telephone line) Identify the state in the working telephone line (clear ring, busy) Send a single solid tone or a dual alternating tone to the object cables or wires Specification Power supply: DC 9V battery Working current: Tester: ≤20mA Receiver: ≤50mA Signal transfe mode: Digital signal Signal output level: 8Vp-p Signal transfer distance: ≥3Km Dimension:Transmitter: 136x62.3x30.8mm Reveiver: 210x35.3x30mm Package Including 1 x Cable Transmitter 1 x Cable Receiver/Tracker 2 x RJ45 Cable 2 x RJ11 Cable 1 x RJ-11 adaptive to RJ-45 adapter 1 x Cable with crocodile clamp 1 x Earphone 1 x Instruction manual
