DTV DTS04-02 2 In 4 Out Satellite Multiswitch - LNB Voltage Selected, 950-2150MHz, 500mA Power Passing
DTV DTS04-02 2 In 4 Out Satellite Multiswitch - LNB Voltage Selected, 950-2150MHz, 500mA Power Passing
Out LNB Signal Distributor
DTV
R 126R 199
Estimated delivery
1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Reliable delivery, every order
Quantity
In stock
When do I get it?
Estimated delivery times depend on where you are. Your exact date is confirmed at checkout.
| Delivery destination | Delivery time |
|---|---|
| Cape Town, Durban, Johannesburg & Pretoria | 1–3 working days |
| Regional areas | 5–6 working days |
| Remote areas | 3–7 working days |
- Interest Free Payments available
- Hassle Free Returns within 7 days
- 12-month limited warranty
Flexible payments from
only
R 21.00
over 2–6 instalments
Description

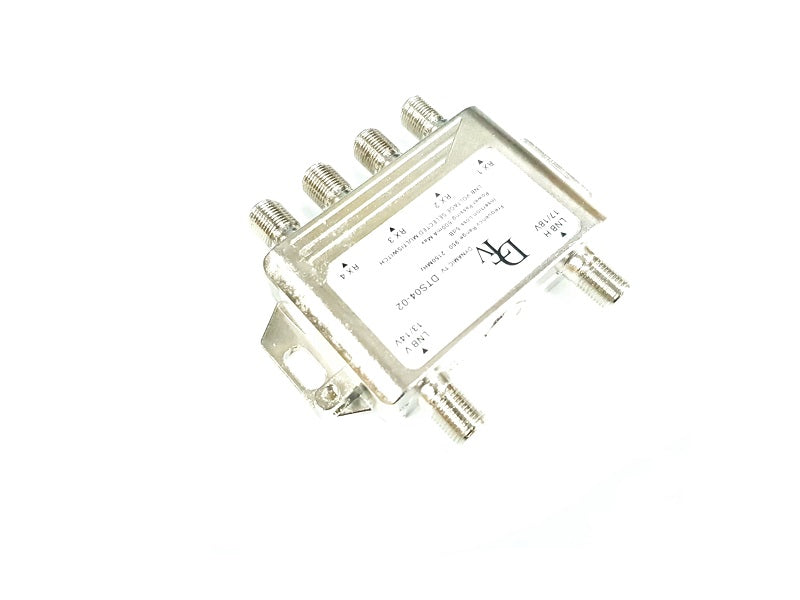

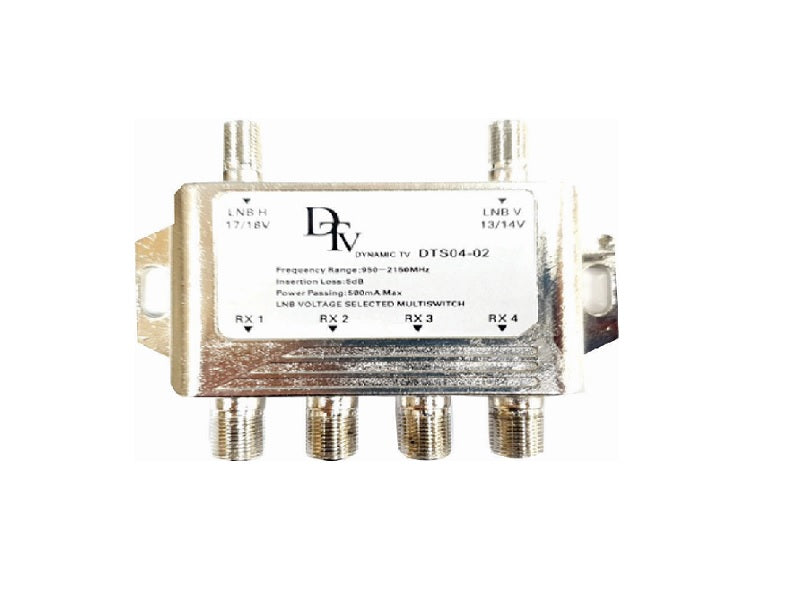

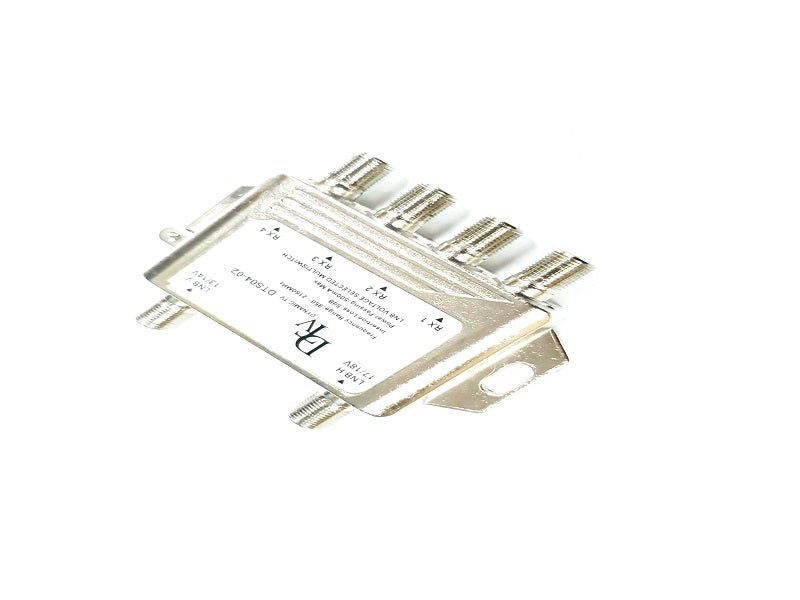

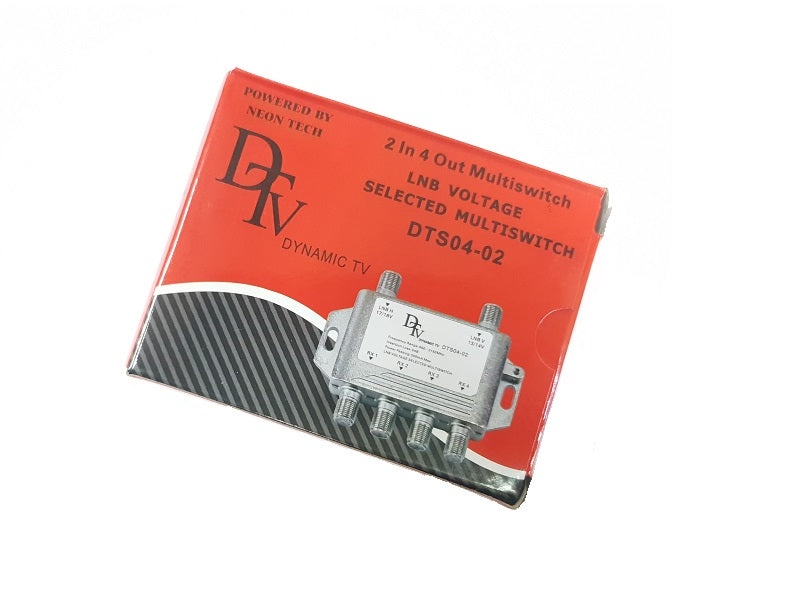

The DTV DTS04-02 2 In 4 Out Multiswitch distributes satellite TV signals from two LNB inputs to four satellite receivers. It is an LNB voltage selected multiswitch: each receiver picks the signal it needs through the voltage it sends, when used with a compatible LNB setup.
With a 950–2150MHz frequency range, 5dB insertion loss and up to 500mA power passing, it suits residential and commercial satellite installations, whether you are adding receivers or expanding an existing TV distribution setup.
Key features
- 2 inputs, 4 outputs
- Inputs marked LNB H (17/18V) and LNB V (13/14V)
- Receiver-voltage LNB selection
- 950–2150MHz frequency range
- 5dB insertion loss
- 500mA maximum power passing
- Four receiver outputs (RX1–RX4)
Specifications
- Brand: DTV (Dynamic TV)
- Model: DTS04-02
- Type: LNB voltage selected satellite multiswitch
- Inputs: 2
- Outputs: 4
- Frequency range: 950–2150MHz
- Insertion loss: 5dB
- Power passing: 500mA max
- Application: satellite TV signal distribution
Product Information
| Warranty | 12-month limited warranty |
| Categories | DTV / New Arrivals / Satellite Accessories |
| Brand | DTV |
| Configuration | 2 inputs, 4 outputs |
| Frequency Range | 950–2150 MHz |
| Insertion Loss | 5 dB |
| Power Passing | 500 mA max |
| Best For | Feeding multiple satellite receivers from one dish |
| SKU | DTS04-02 |
