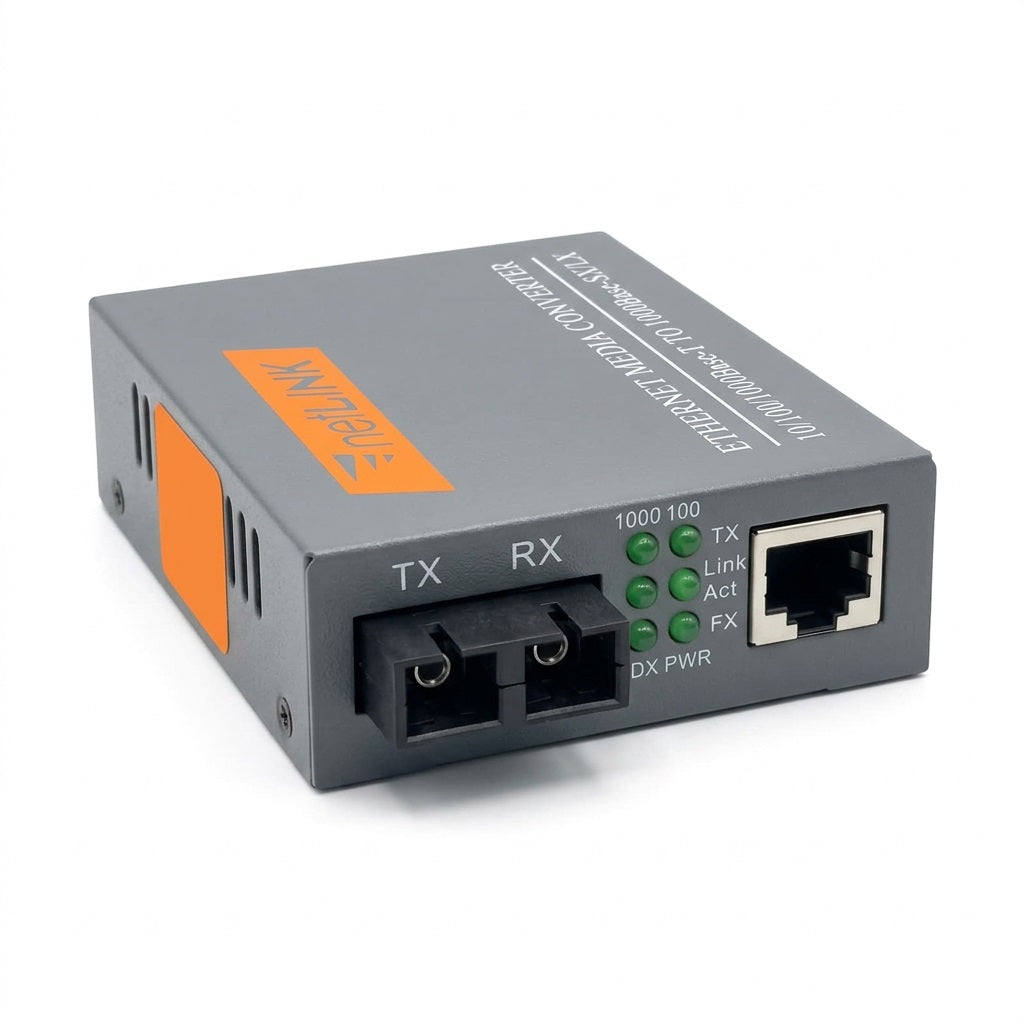

Netlink HTB-GS-03 Gigabit Fibre Media Converter - Single-Mode Dual Fibre SC, 20km, RJ45 10/100/1000Mbps

The Netlink HTB-GS-03 is a Gigabit Ethernet fibre media converter that connects copper network equipment to single-mode fibre over distances of up to 20km. Plug a standard network cable into the 10/100/1000Mbps RJ45 port and a duplex SC single-mode patch lead into the fibre port, and the converter links the two.

It's the simple way to extend a network well beyond the 100m limit of copper cabling: between buildings, across a campus or farm, out to a CCTV site, or along an ISP or telecom link. Front-panel LEDs show power, fibre and copper link/activity, speed and duplex status, and the compact unit runs from an external DC power adapter.

A fibre link needs a matching device at each end: use a second HTB-GS-03 or a switch fitted with a matching single-mode SFP module.

Key features

• Converts 10/100/1000Base-T copper Ethernet to 1000Mbps single-mode fibre
• Up to 20km over single-mode fibre
• Dual-fibre duplex SC connector (separate TX and RX)
• 1 × RJ45 copper port and 1 × SC fibre port
• LED indicators for power, link, activity, speed and duplex
• Compact unit powered by an external DC adapter
• Suited to ISP, telecom, enterprise, campus and CCTV networks

Specifications

• Model: HTB-GS-03
• Type: Gigabit Ethernet fibre media converter
• Conversion: 10/100/1000Base-T to 1000Base-SX/LX
• Copper Port: 1 × RJ45, 10/100/1000Mbps
• Fibre Port: 1 × duplex SC (TX + RX)
• Fibre Type: Single-mode, dual fibre
• Maximum Distance: Up to 20km
• Indicators: Power, fibre, link/activity, speed and duplex LEDs
• Power: External DC power adapter
