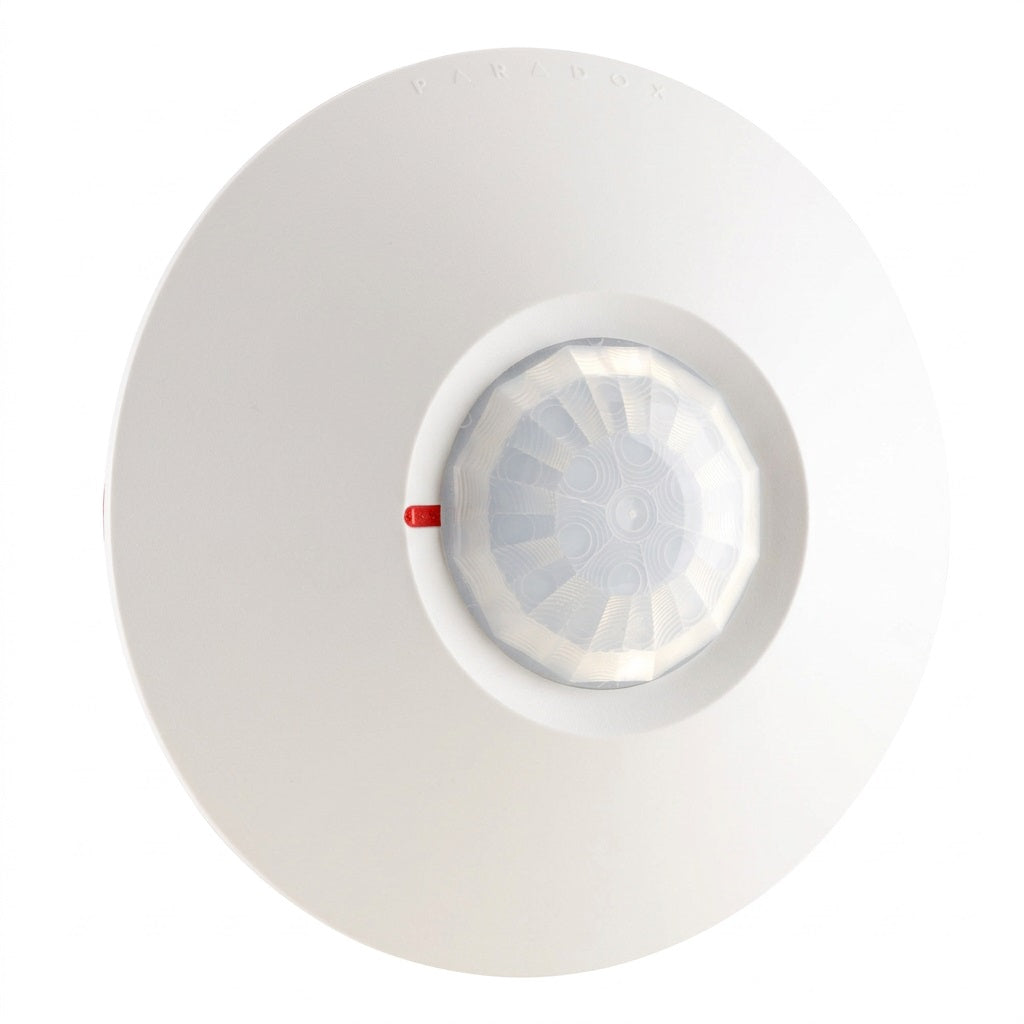

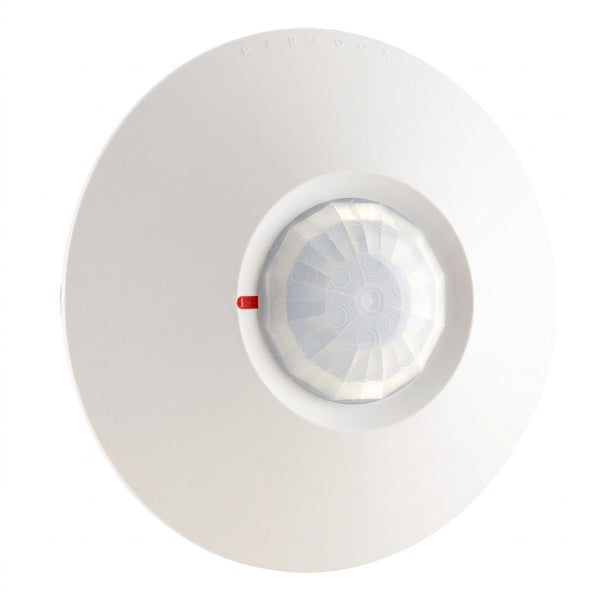

Paradox Dg467 360 Degree Ceiling Pir

The Paradox DG467 360° Digital PIR Motion Detector is a ceiling-mounted indoor motion sensor designed to provide comprehensive movement detection across an entire room. Its 360-degree viewing angle makes it suitable for monitoring open indoor spaces such as offices, shops, reception areas, corridors and other commercial or residential environments.

Featuring a dual opposed-element sensor and digital detection technology, the DG467 provides reliable motion monitoring. It offers two operating modes: addressable operation for compatible Paradox Digiplex EVO alarm systems or conventional relay operation for compatible security installations.

With detection coverage dependent on mounting height, this detector offers flexible installation options for different indoor environments.
Key Features
- 360° detection coverage: Provides all-round movement monitoring from a ceiling-mounted position.
- Digital detection technology: Designed for reliable indoor motion detection.
- Dual opposed-element sensor: Uses dual opposed sensor elements for motion detection.
- Dual operating modes: Supports addressable operation or conventional relay operation.
- Digiplex EVO compatibility: Addressable mode for compatible Paradox Digiplex EVO systems.
- Conventional relay operation: Can be used with compatible conventional alarm systems.
- Flexible mounting height: Detection coverage varies according to installation height.
- Indoor installation: Suitable for homes, offices, shops and commercial premises.
Technical Specifications
Specification Details
Brand Paradox
Model DG467
Product Type Digital PIR motion detector
Detection Technology Passive Infrared (PIR)
Mounting Type Ceiling-mounted
Viewing Angle 360°
Sensor Configuration Dual opposed-element sensor
Detection Technology Digital detection
Operating Modes Addressable or conventional relay
Addressable Compatibility Paradox Digiplex EVO series
Detection Coverage at 2.4m Height 7m × 6m
Detection Coverage at 3.7m Height 11m × 6m
Installation Environment Indoor
Application Residential and commercial security systems

What's in the Box
- 1 × Paradox DG467 360° Ceiling-Mount Digital PIR Motion Detector
