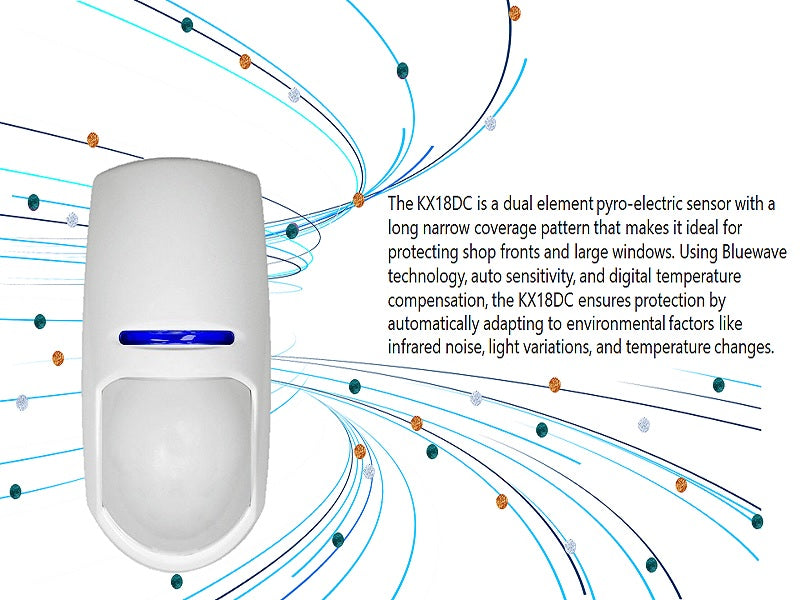

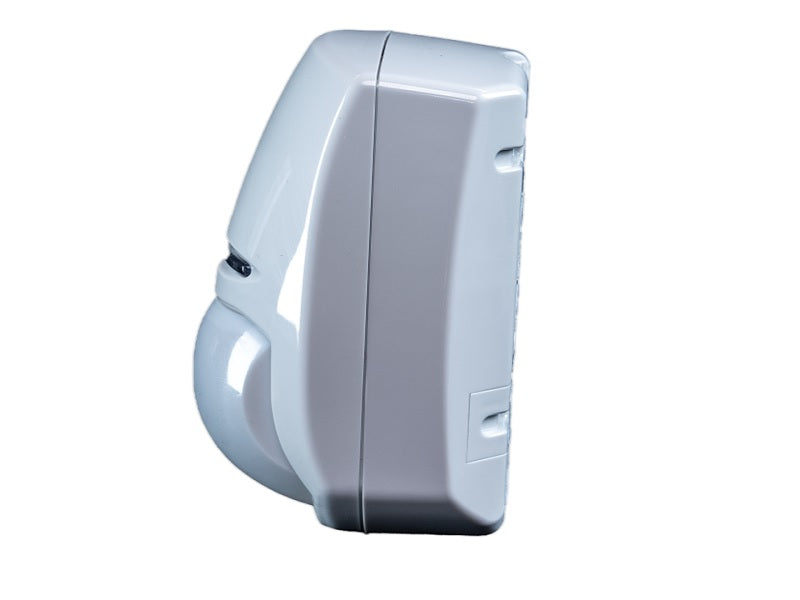

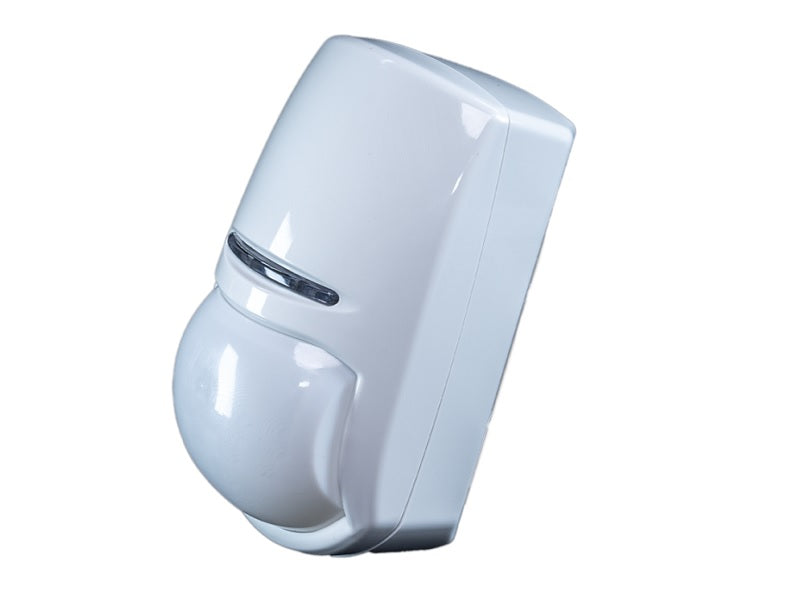

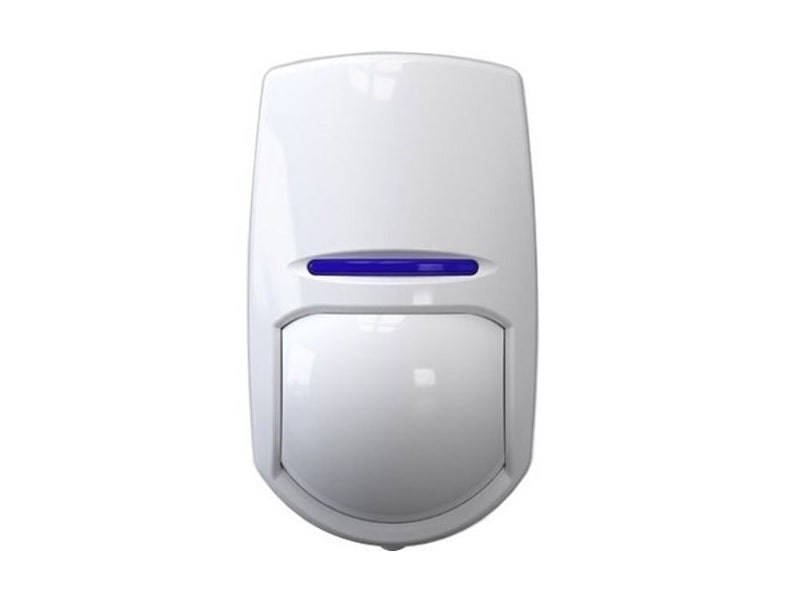

PYRONIX Digital 18M Curtain Pir Detector

The KX18DC is a high-performance dual element passive infrared (PIR) sensor designed specifically for applications requiring narrow and extended coverage. Its long, narrow detection pattern makes it ideal for securing shop fronts, large glass panels, corridors, and windowed areas, where standard wide-angle sensors may fall short. Equipped with advanced Bluewave technology, the KX18DC ensures enhanced signal processing by digitally analyzing the infrared signal for clearer and more accurate detection. This minimizes false alarms caused by light fluctuations, small animals, or environmental noise.

Key features

• The sensor features auto-sensitivity adjustment, allowing it to intelligently adapt its detection performance in real time based on changing conditions such as ambient temperature or infrared interference. In addition, digital temperature compensation ensures the sensor maintains consistent performance even in environments with high thermal variation.
• Long and Narrow Detection Beam: Perfect for perimeter protection, glass surfaces, and commercial storefronts.
• Dual Element Pyro Sensor: Increases accuracy and minimizes false alarms by detecting true body heat movement.
• Bluewave Signal Processing: Enhances clarity and reliability of the detection signal for optimal security.
• Auto Sensitivity Adjustment: Dynamically adjusts detection thresholds based on environmental factors.
• Digital Temperature Compensation: Maintains detection reliability across varying temperatures.
• Tamper Protection: Built-in tamper switch to prevent unauthorized access or removal.
• Stylish and Compact Design: Discreet appearance suitable for both commercial and residential environments.
• Detection Range: Up to 18 meters (narrow beam pattern)
• Whether you're protecting valuable storefronts or narrow access points, the KX18DC offers dependable, adaptable, and smart intrusion detection. Trusted by professionals for its precision and reliability, it’s a perfect solution for focused surveillance needs.

Specifications

• Fpkx18dc
• Coverage Type: Long range, narrow curtain
• Sensor Type: Dual element pyro-electric
• Mounting Height: Optimal between 1.8 – 2.4 meters
• Power Supply: 9–16V DC
• Operating Temperature: -10`b0C to +55`b0C
