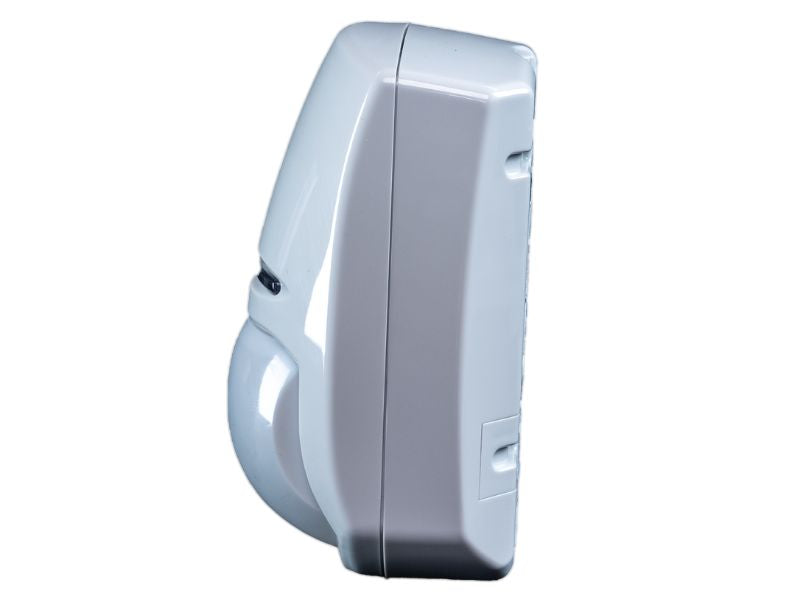

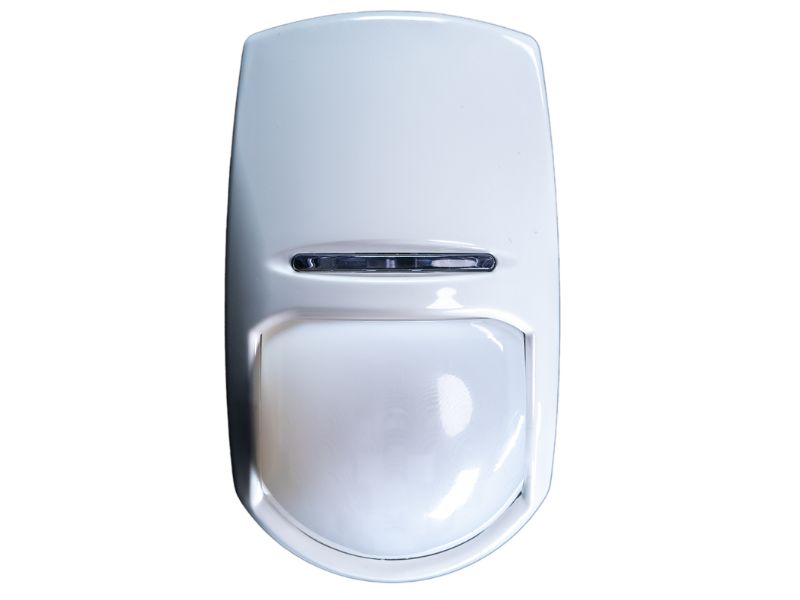

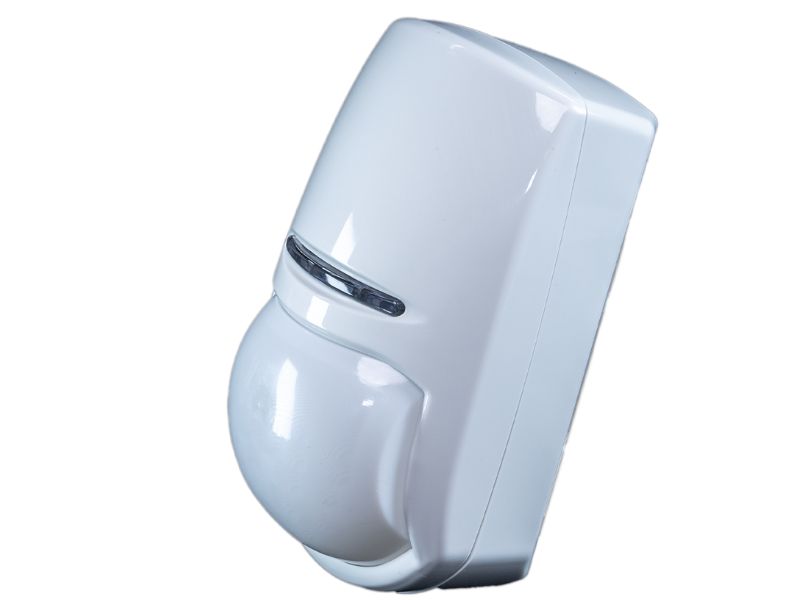

Pyronix KX15DTAM Dual Tech PIR + Microwave Detector - 15m Range, Grade 3, Anti-Mask

The KX15DTAM is a dual element pyro-electric sensor that boasts Grade 3 compliance. The premium detector features patented anti-masking technology and selectable EOL resistors for compatibility with various control panels. Additionally, it incorporates auto sensitivity, tamper-proof brackets, sealed optics, and ABS plastics for advanced functionality. Physical dimensions (H x W x D) 117 x 69 x 50mm.

Key features

• Selectable EOL (End Of Line) resistors
• Detectors technical characteristics
• Blue Wave technology Yes
• Automatic sensitivity Yes
• Digital temperature compensation Yes
• DEOL resistor on board Yes
• Tamper protection Front and rear
• Separate LED indication Microwave, PIR, Alarm
• Volumetric coverage Yes
• Dual technology Yes
• Adjustable antimasking (antispray) Yes
• Anticloaking technology Yes
• Protection of area under the detector (creep zone) Yes
• Protection Ultraviolet light filter
• Optics Sealed optics
• Mounting
• Wall mounted Bracket included
• Ceiling mounted Bracket included
• Electrical & battery
• Quiescent current consumption 24mA @ 12V (Min), 30mA @ 12V (Max)
• Relay outputs 50mA 60 VDC, 42 VAC (RMS)
• Electrical conformity CE

Specifications

• 85 degree, 15 or 18m coverage
• Grade 3 compliant
• Set sensitivity Auto or Pulse Count 1
• 3 microwave frequencies to avoid interference Yes
• Maximum range 15m or 18m
• Detection speed 0.2 - 2.5m/s
• Coverage angle 85 degree
• Detection zones 74
• Detection planes 7
• White light filter 6500 Lux
• Lens 3 dimensional
• Optimum coverage height 1.8 - 2.4m
• Certified mounting height 2.4m
• Storage temperature -40C to +80C
• Certified operating temperature -10C to +40C
• Nominal operating temperature -30C to +60C
• Weight 125g without bracket
• Operating voltage 9-16V DC 13.8V DC typical
• Contact Resistance <10 ohms
• Tamper switch 12V 50mA
• Security Grade Grade 3
• EN Certificate EN50131-2-4:2008, EN50131-1, PD6662:2017
• Warranty 5 years
