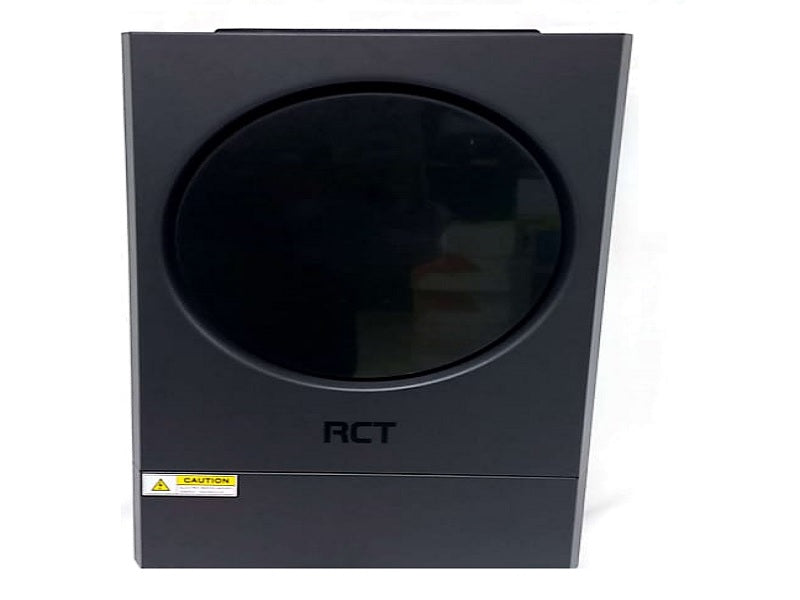

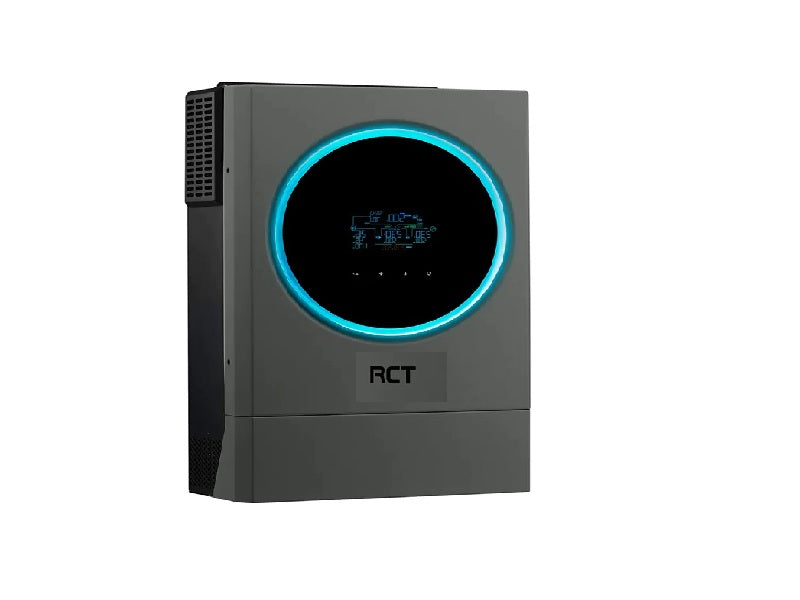

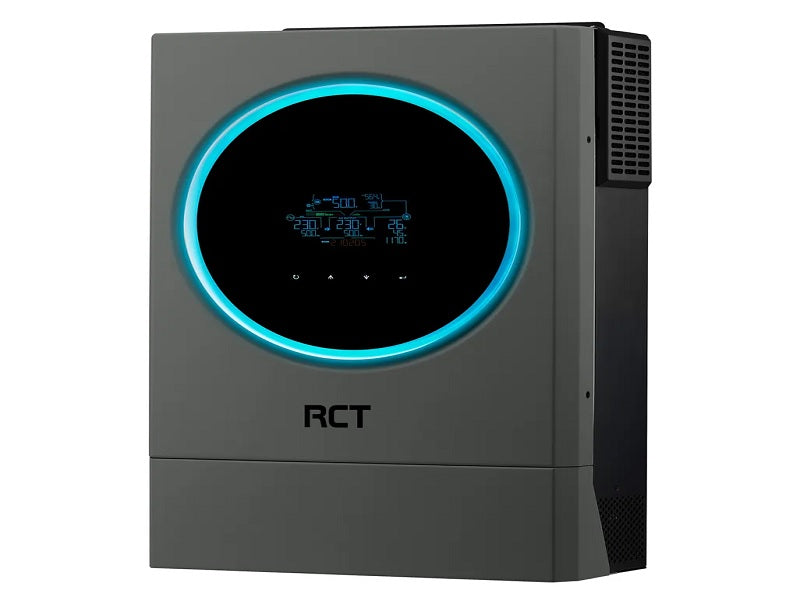

RCT Axpert 5.6K Mk4 5600Va/5600W Inv Chg

Pure sine wave MPPT solar inverter. Customizable status LED ring with RGB lights.

Key features

• Touchable button with 4.3" coloured LCD.
• Wide DC input range.
• Supports USB On-the-Go function.
• Data log events stored in the inverter.
• Built-in Wi-Fi for mobile monitoring (App is available).
• Reserved communication port for BMS.
• Parallel operation with up to 9 units.
• Selectable Voltage Range: 170-280 VAC (For Personal Computers), 90-280 VAC (Home Appliances).
• Frequency Range: 55 Hz/60 Hz (Auto sensing).
• AC Voltage Regulation (Batt. Mode): 230VAC + 5%.
• Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).
• Overload Capacity: 5s @ ≥ 150% Load, 10s @ ≥ 110% ~ 150% Load, 100ms @ ≥ 200% Load.
• Floating Charge Voltage: 54 VDC.
• Solar charger & AC charger
• Maximum PV Array Power: 6000 W.
• MPP Range @ Operating Voltage: 120 ~ 450 VDC.
• Maximum PV Array Open Circuit Voltage: 450 VDC.
• Maximum Solar Charge Current: 120 A.
• Maximum AC Charge Current: 120 A.

Specifications

• 48V 6000W PV open 500V DC wifi
• Battery independent function.
• Model: RCT-AXMK4-5.6K48V
• Rated: 5600VA/5600W.
• Voltage: 230 VAC.
• Efficiency (Peak): 93 %.
• Waveform: Pure Sine Wave.
• Battery
• Battery Voltage: 48 VDC.
• Overcharge Protection: 66 VDC.
• Solar Charger Type: MPPT.
