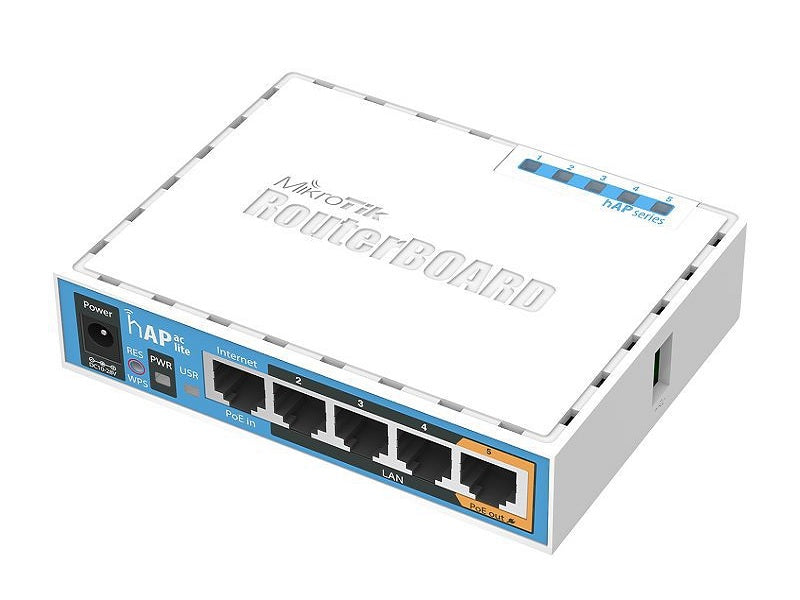

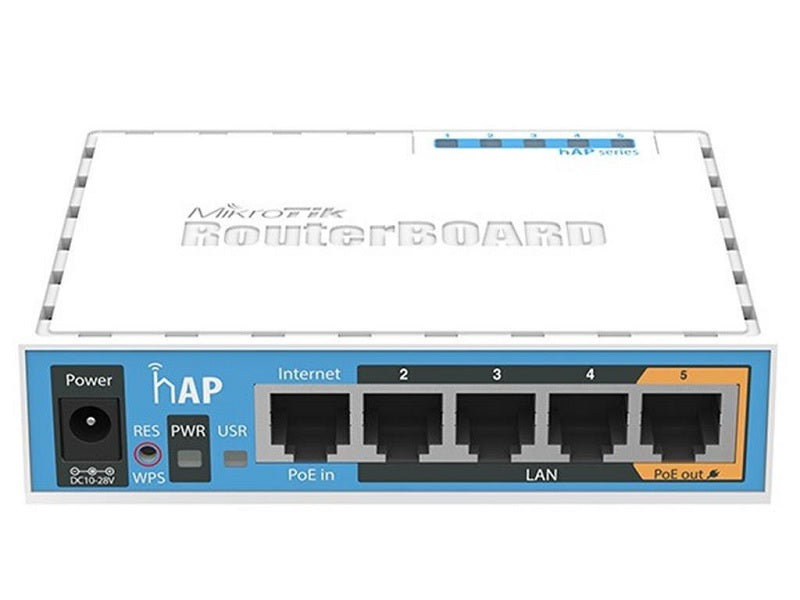

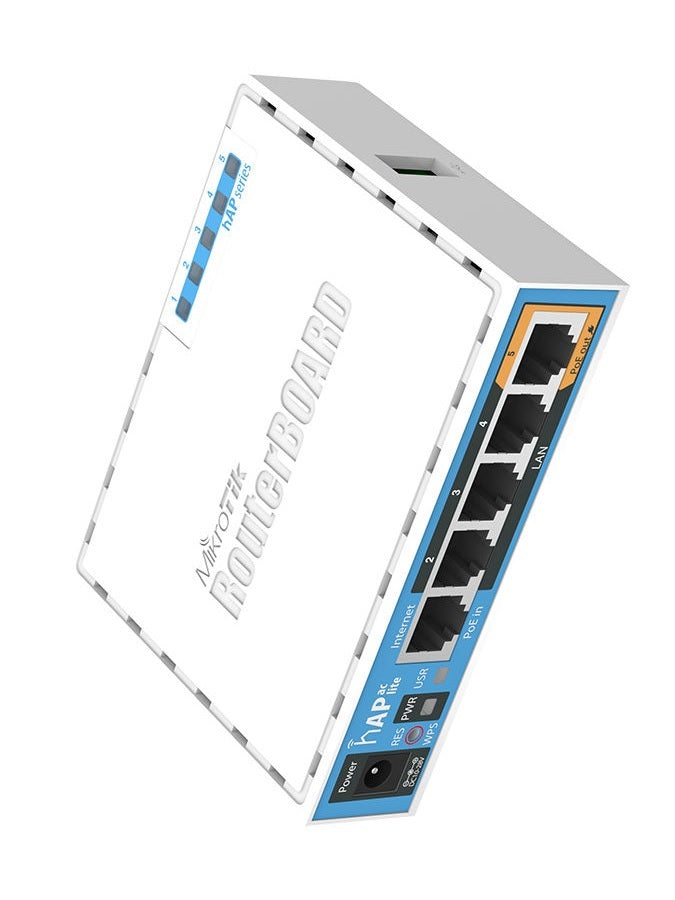

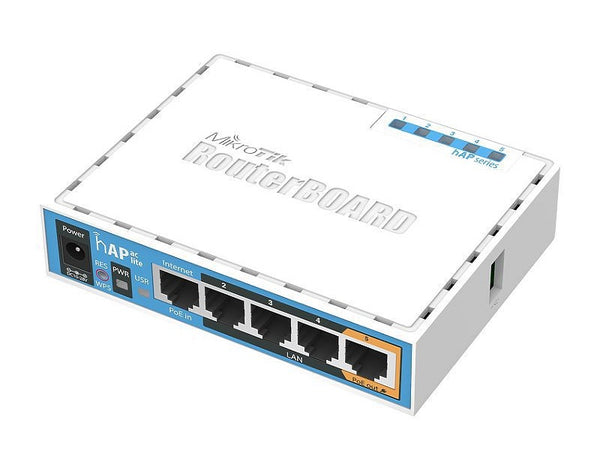

MikroTik hAP AC Lite RB952Ui-5ac2nD - AC750 Dual-Band, 5-Port, USB, RouterOS L4

The hAP ac lite is a Dual-concurrent Access Point, that provides WiFi coverage for 2.4GHz and 5GHz frequencies at the same time. Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11a/n/ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.

Key features

• Details
• Architecture MIPSBE
• Powering
• PoE in Passive PoE
• PoE out Passive PoE
• Number of DC inputs 2 (DC jack, PoE-IN)
• Max out per port output (input < 30 V) 500 mA
• Wireless
• Wireless 2.4 GHz Max data rate 300 Mbit/s
• Wireless 5 GHz Max data rate 433 Mbit/s
• Ethernet
• Peripherals
• USB slot type USB type A

Specifications

• RAM 5xlan builtin 2.4GH 802.11B/G/N 5GHZ
• Product code RB952Ui-5ac2nD
• CPU QCA9531
• CPU core count 1
• CPU nominal frequency 650 MHz
• Dimensions 113 x 89 x 28mm
• License level 4
• Size of RAM 64 MB
• Storage size 16 MB
• Tested ambient temperature -30°C to 70°C
• PoE in input Voltage 12-30 V
• DC jack input Voltage 10-30 V
• Max total out (A) 500 mA
• Max power consumption 8 W
• AC speed AC750
• Antenna gain dBi for 2.4 GHz 2
• Wireless 2.4 GHz standards 802.11b/g/n
• Wi-Fi generation 5
• Wireless 2.4 GHz number of chains 2
• Wireless 2.4 GHz chip model QCA9531
• Wireless 5 GHz number of chains 1
• Wireless 5 GHz standards 802.11a/n/ac
• Antenna gain dBi for 5 GHz 2
• Wireless 5 GHz chip model QCA9887
• 10/100 Ethernet ports 5
• Number of USB ports 1
• Max USB current (A) 1
• 2.4 GHz Transmit (dBm) Receive Sensitivity
• 1MBit/s 22 -96
• 11MBit/s 22 -89
• 6MBit/s 20 -93
• 54MBit/s 18 -74
• MCS0 20 -93
• MCS7 16 -71
• 5 GHz Transmit (dBm) Receive Sensitivity
• 6MBit/s 23 -93
• 54MBit/s 20 -75
• MCS0 23 -93
• MCS7 19 -71
• MCS9 16 -63
