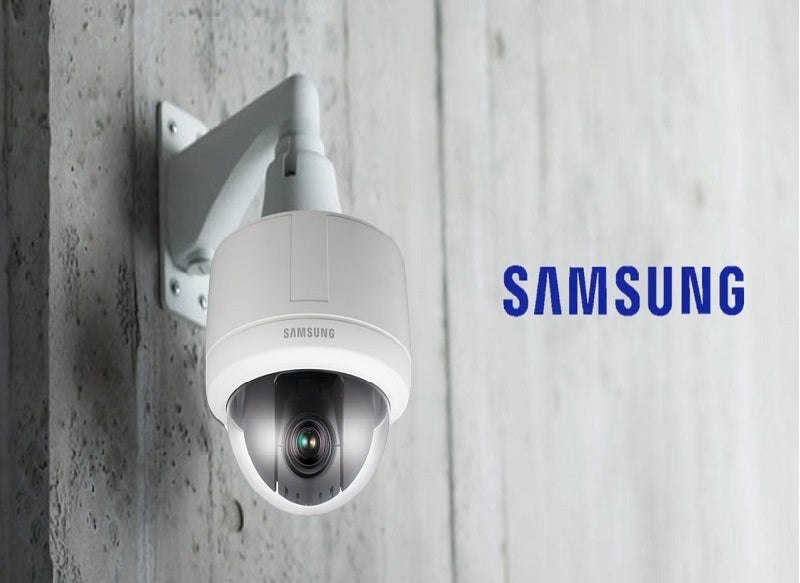

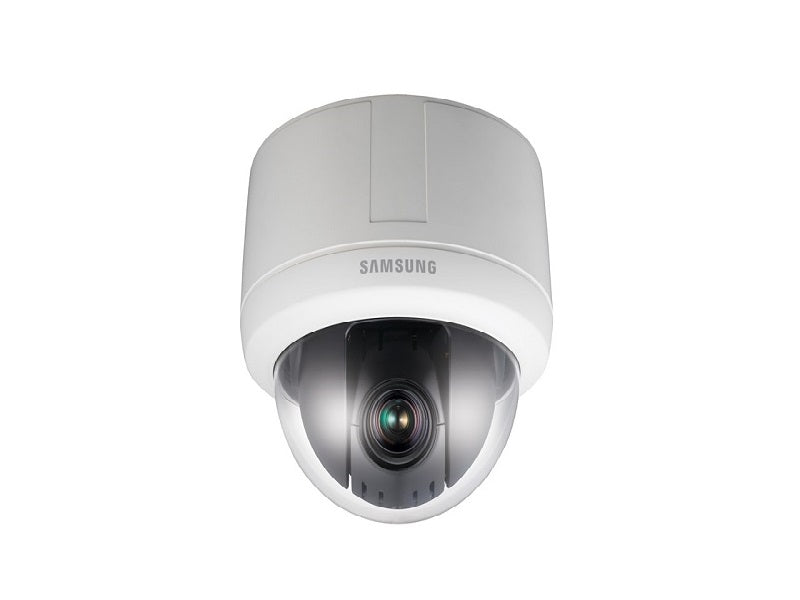

SAMSUNG Dome Ptz 12X Wdr Camera

Samsung Techwin SCP-3120 is indoor camera Samsung Techwin SCP-3120 is IP66 camera. Samsung Techwin SCP-3120 is wide dynamic range camera Samsung Techwin SCP-3120 is day night camera.

Key features

• The Samsung SCP-3120 Indoor PTZ Security Camera is a robust surveillance system that has great coverage at a very economical price. The SCP-3120 is built with the IP66-rated casing, tough and weather-resistant, totally protected against the elements; and a 12x auto focus zoom lens (3.6-44.3mm). This makes it the perfect solution for indoor monitoring activities where long focal requirements are not needed. It comes with a 360 degree continuous rotation with high speed pan and tilt functions at a rate of 650 degrees per second, with 256 presets, assuring the camera is always keeping an eye out for you.
• True day and night operations in 0.7 lux with ICR filter makes 24 hour monitoring and recording simple without the need of any additional lighting. The Motion Adaptive Digital Noise Reduction (DNR) feature makes sure the camera stays focused on the important images and reduces any background noise (grainy images). Plus, it has privacy masking in up to 8 predetermined zones, to be set by an administrator make sure that only the proper information is recorded. If you want a surveillance camera that comes loaded with features, the Samsung SCP-3120 Indoor PTZ Security Camera is it.
• Technical Specs
• Power Consumption: SCP-3120 : Max. 12W, SCP-3120V/3120VH : Max. 45W
• Horizontal Resolution: Color : 600TV lines (Min.) / B/W : 700TV lines (Min.)
• Min. Illumination: Color : 0.7Lux (50 IRE@F1.65), 0.001Lux (Sens-up, 512x), B/W : 0.07Lux (50 IRE@F1.65)
• Video Output: VBS : 1.0 Vp-p / 75`d9 composite
• Angular Field of View: H : 54.44`b0(Wide) ~ 4.62`b0(Tele) / V : 42.32`b0(Wide) ~ 3.58`b0(Tele)
• Pan Speed: Preset : 650`b0/sec / Manual : 0.05`b0/sec ~ 120`b0/sec (Proportional zoom ratio), Turbo 200`b0/sec
• Tilt Speed: Preset : 650`b0/sec / Manual : 0.05`b0/sec ~ 120`b0/sec (Proportional zoom ratio)
• On Screen Display: English, French, German, Spanish, Italian, Portuguese, Korean
• eXtended Dynamic Range: Low / Medium / High / Off
• Privacy Masking: On / Off (12 polygonal programmable zones)
• 2D+3D Noise Filter (A1): Low / Medium / High / Off
• Sens-up (Frame Integration): On / Off (Selectable limit ~ 512x)
• White Balance: ATW (In) / ATW (Out) / Manual / AWC
• AGC: Off / Low / Medium / High / Manual
• Operating Temperature / Humidity: -10`b0C ~ +50`b0C (+14`b0F ~ +122`b0F)

Specifications

• Scp-3120p
• Samsung SCP-3120 Indoor PTZ Security Camera
• Samsung SCP-3120 Indoor PTZ Security Camera Specifications
• Input Voltage: 24V AC
• Imaging Device: 1/4" Ex-view HAD PS CCD
• Total Pixels: 811(H) x 508(V)
• Effective Pixels: 768(H) x 494(V)
• Scanning System: 2 : 1 Interlace
• Synchronization: Internal / Line lock
• Frequency: H :15.734KHz / V : 59.94Hz
• S / N (Y signal): 50dB
• Zoom Ratio: 12x (Optical), 16x (Digital
• Focal Length: 3.6 ~ 44.3mm (F1.65 ~ 2.0)
• Maximum Aperture Ratio: 1 : 1.65(Wide) ~ 3.7(Tele)
• Minimum Object Distance: 0.2m(Wide), 0.8m(Tele
• Focus: Auto / Manual / One shot
• Pan Range: 360`b0 Endless
• Tilt Range: -5`b0 ~ 185`b0
• Preset Positions - 255
• Camera Title: On / Off (Max. 12 Character
• Day & Night: Auto (ICR) / Color / B/W
• Motion Detection: Off / Tracking / Detection
• Wide Dynamic Range: 128x
• Backlight Compensation: BLC / WDR / Off
• VPS (Virtual Progressive Scan): On / Off
• Digital Image Stabilization: On / Off
• Electronic Shutter Speed: 1/60 ~ 1/10,000sec
• Digital Zoom: On / Off (2x ~ 16x)
• Schedule: Day / Time schedule
• Communication: RS-485, Coaxial control
• Protocol: Samsung-T, Samsung-E, Pelco-D, Pelco-P, Bosch, Honeywell, Vicon, Panasonic
• Alarm: 2 In, 2 Out
• Digital Flip: On / Off
• Dimension (WxHxD): `d8154 x 150mm (`d86.06" x 5.91)
• Weight: 1Kg (2.2 lb)
• Certifications: FCC (Class A), UL/cUL listed
